NSN 4730-01-601-1334 53485K22, 01-601-1334, 016011334
Product Details | TUBE TO HOSE STRAIGHT ADAPTER
4730-01-601-1334 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a tube or tube fitting to a hose or hose fitting.
Part Alternates: 53485K22, 4730-01-601-1334, 01-601-1334, 4730016011334, 016011334
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 JAN 2012 | 01-601-1334 | 03777 ( ADAPTER, STRAIGHT, TUBE TO HOSE ) |

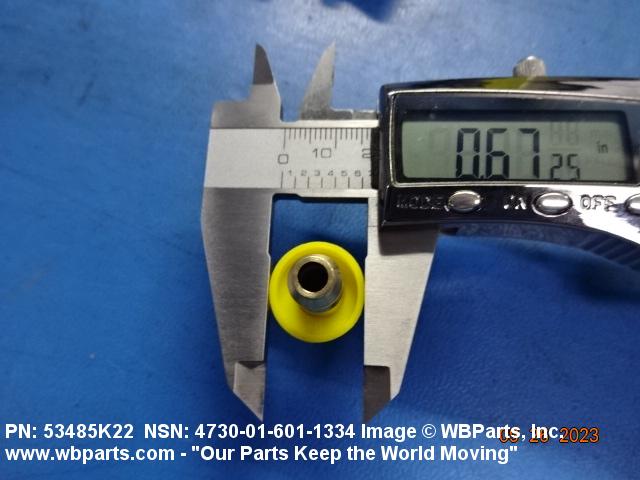

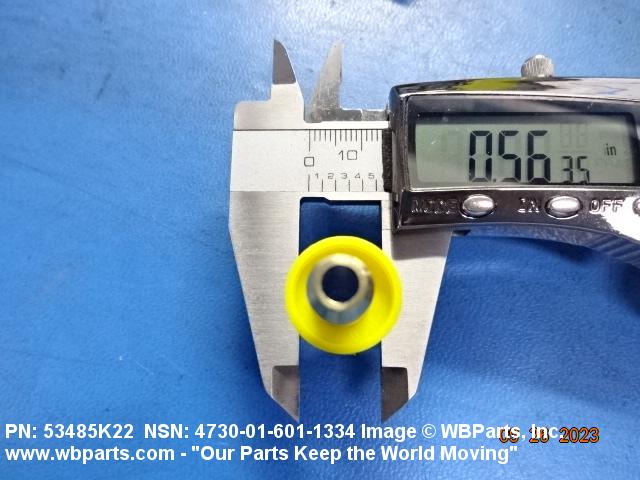

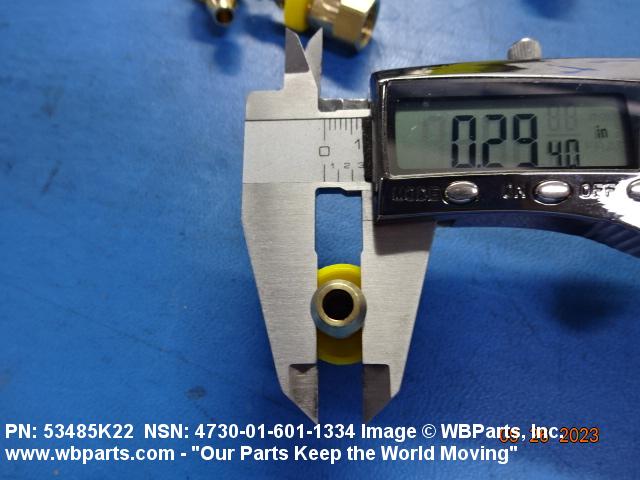

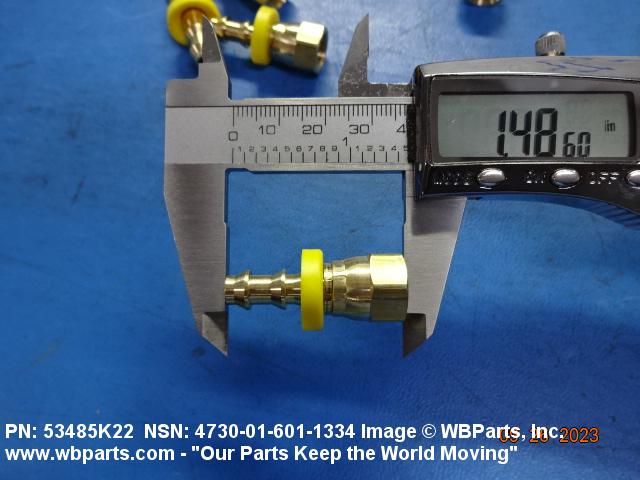

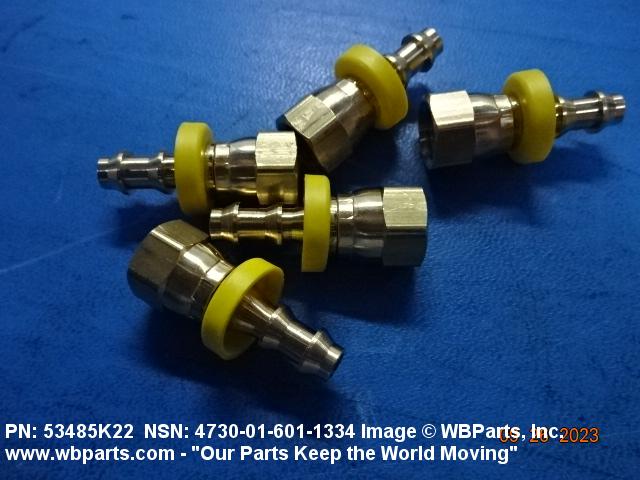

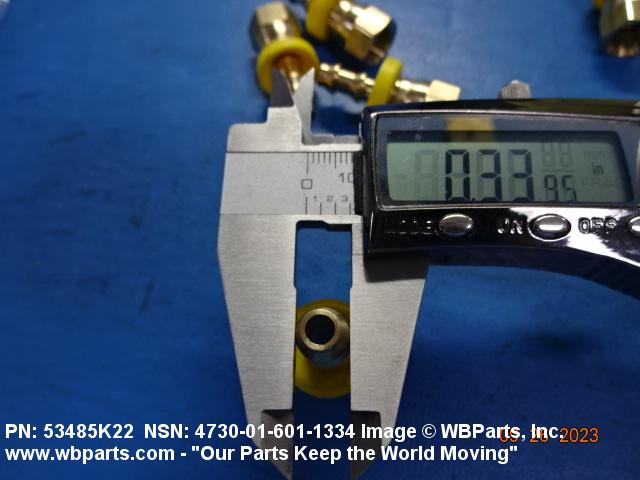

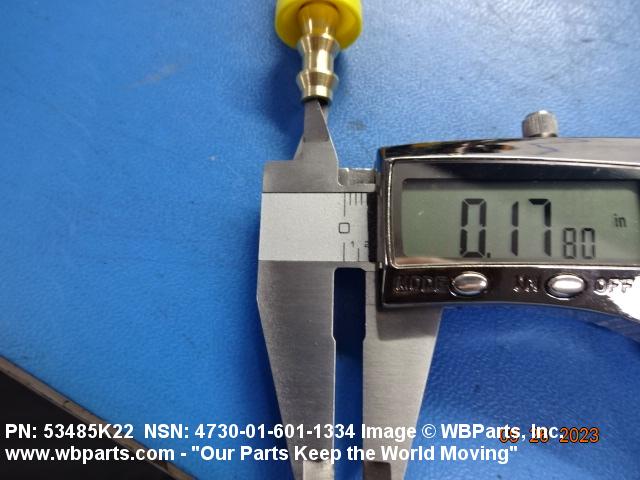

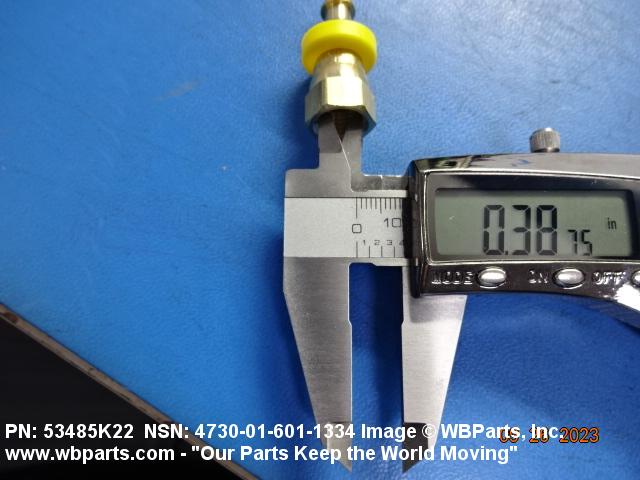

Drawings & Photos | NSN 4730-01-601-1334
Demand History | NSN 4730-01-601-1334
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 53485K22 | 2023-09-257 | 1 | United States |
| 4730-01-601-1334 | 2013-05-133 | 2 | US |
Cross Reference | NSN 4730-01-601-1334
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 53485K22 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-601-1334
Technical Data | NSN 4730-01-601-1334
| Characteristic | Specifications |
|---|---|
| THREAD QUANTITY PER INCH | 20 2ND END |
| THREAD SERIES DESIGNATOR | UNF 2ND END |
| CONNECTION STYLE | DAUL SEAT (TUBE) 2ND END |
| SPECIAL FEATURES | ONLY TO BE USED WITH HOSES FOR PUSH-ON FITTINGS; MATERIAL CUB000 IS BRASS; TEMPERATURE RANGE IS MINUS 20 DEGREES TO 150 DEGREES FARENHEIT |
| CONNECTION STYLE | INSERT (HOSE) 1ST END |
| THREAD CLASS | 3B 2ND END |
| MATERIAL | COPPER ALLOY OVERALL |
| CONNECTION TYPE | THREADED INTERNAL TUBE 2ND END |
| STYLE DESIGNATOR | INSERT AND THREADED INTERNAL |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 0.25 INCHES 1ST END |
| MAXIMUM OPERATING PRESSURE | 350.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FITTING,ADAPTOR; ADAPTER,FEMALE 37 DEGREE JIC/45 DEGREE SAE,FLARED |
| NOMINAL THREAD SIZE | 0.4375 INCHES 2ND END |
| MAXIMUM OPERATING TEMP | 150.0 DEG FAHRENHEIT SINGLE RESPONSE |
Restrictions/Controls & Freight Information | NSN 4730-01-601-1334
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
