NSN 4730-01-607-8883 MS208198D, MS20819-8D , AS3220W08
Product Details | TUBE FITTING FLARED SLEEVE
4730-01-607-8883 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: MS208198D, MS20819-8D , AS3220W08, AS3220-W08 , 4730-01-607-8883, 01-607-8883, 4730016078883, 016078883
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 2012170 | 01-607-8883 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

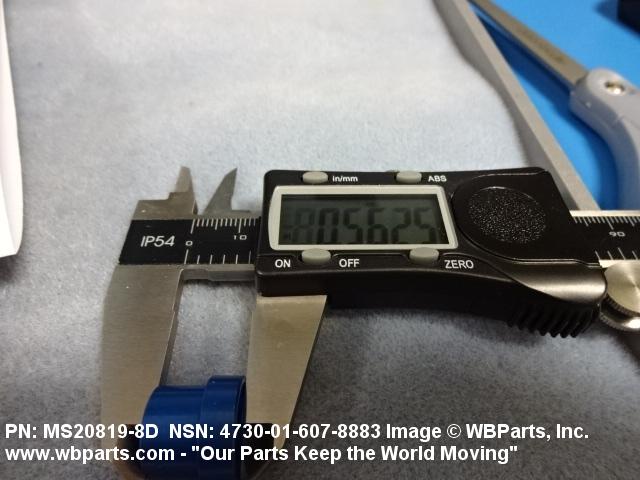

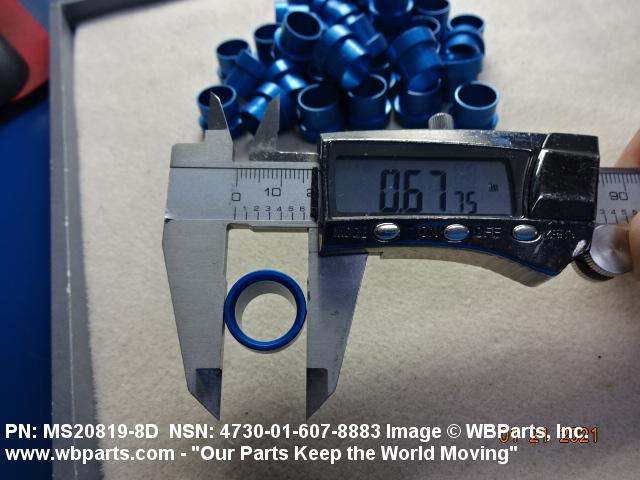

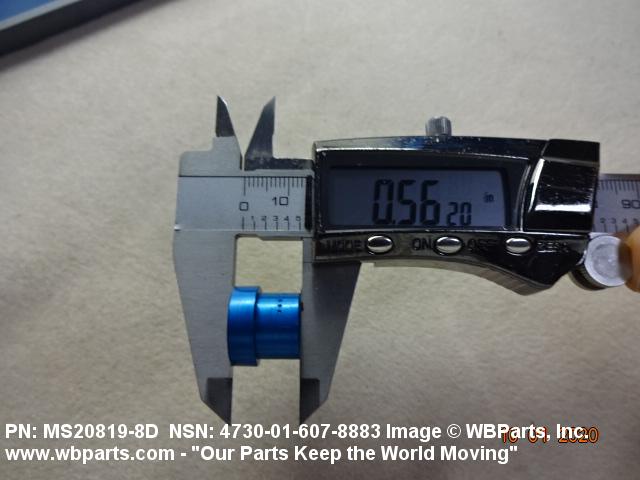

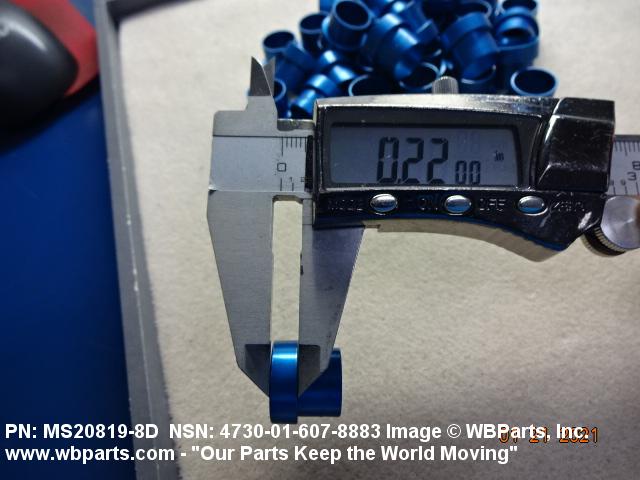

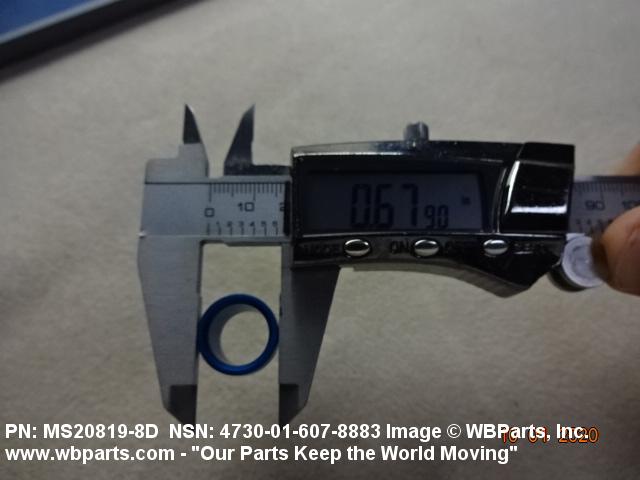

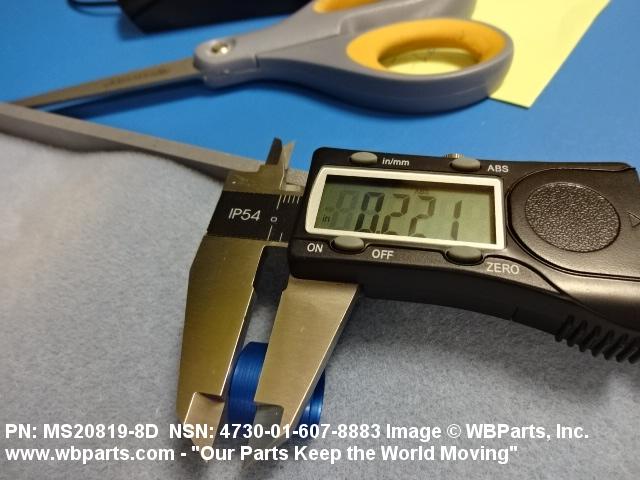

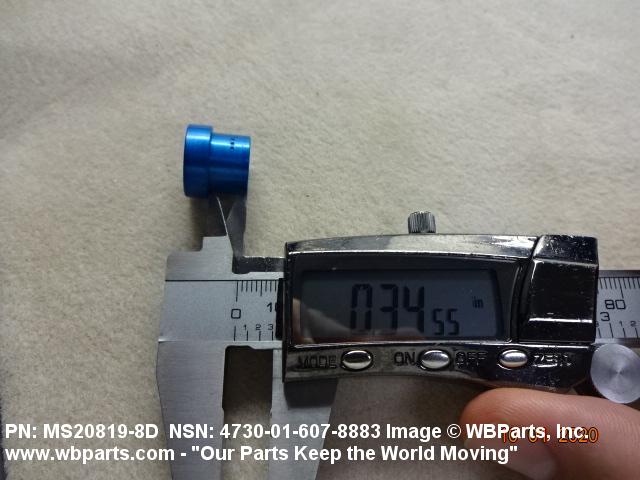

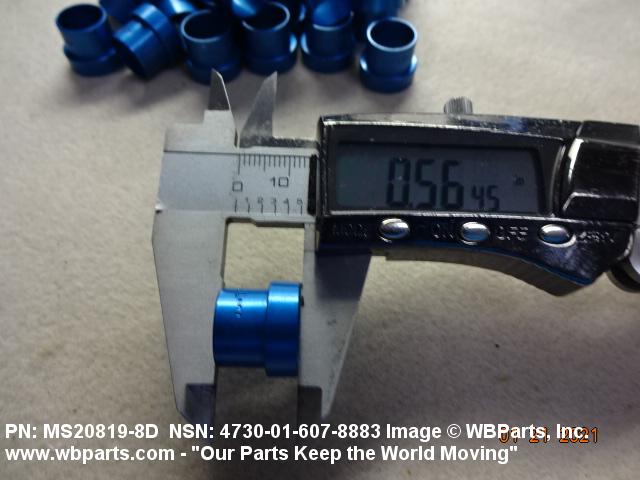

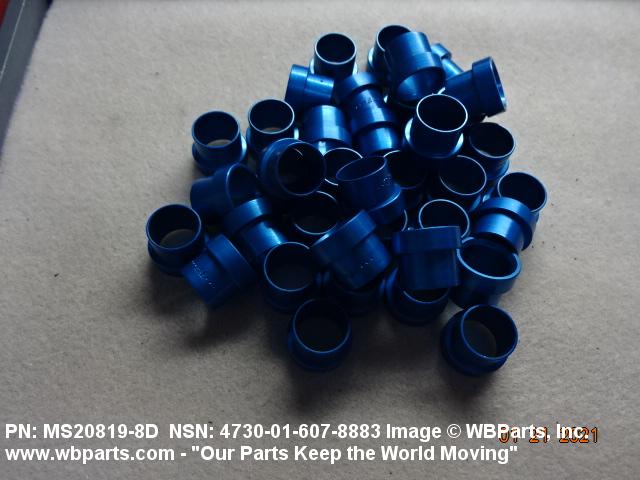

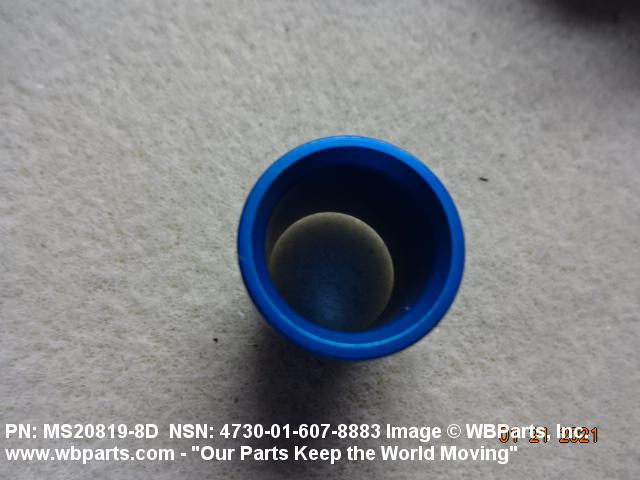

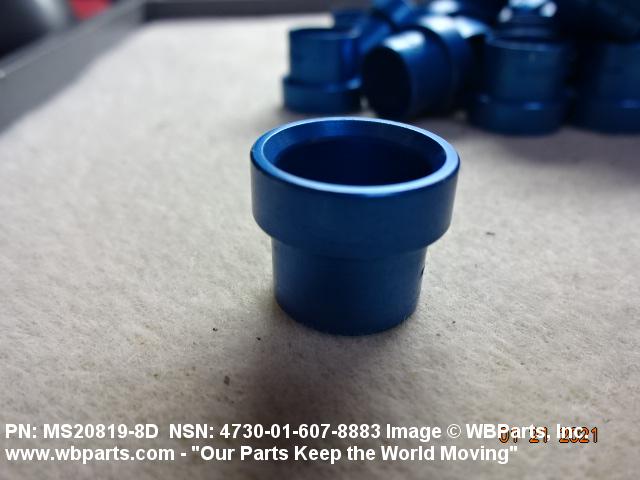

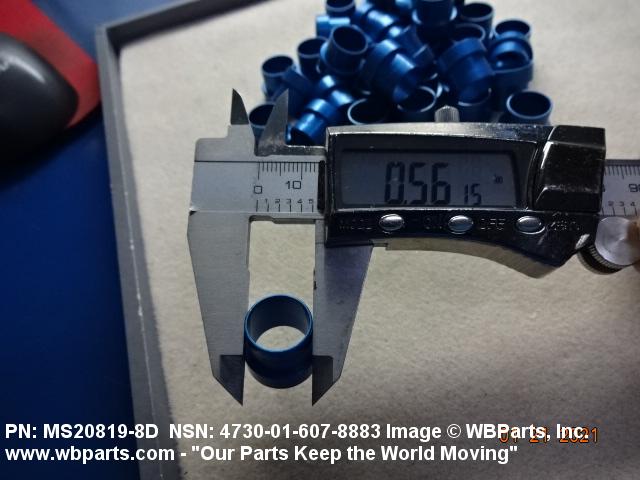

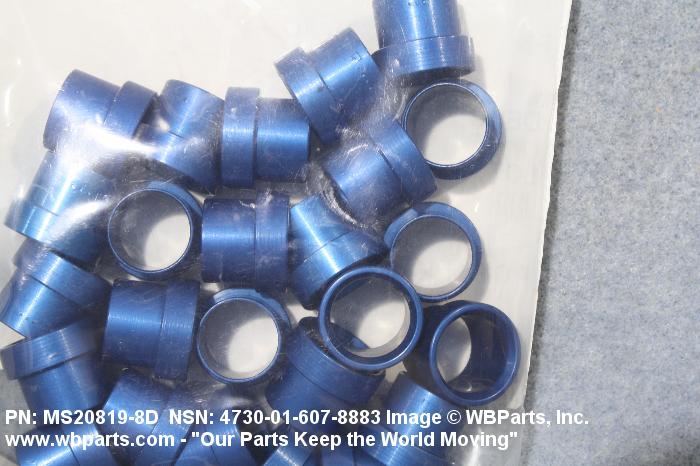

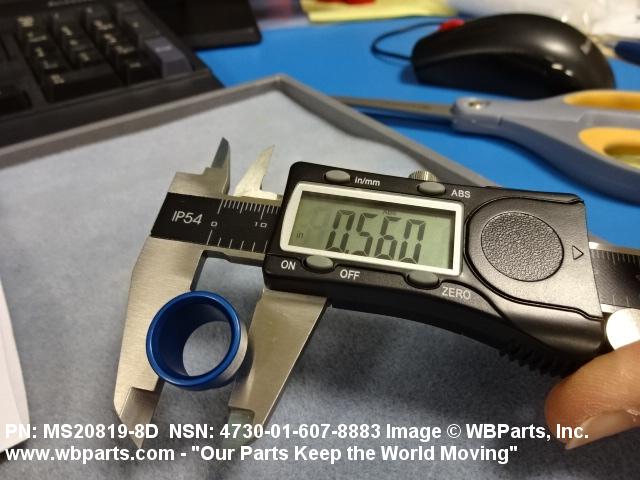

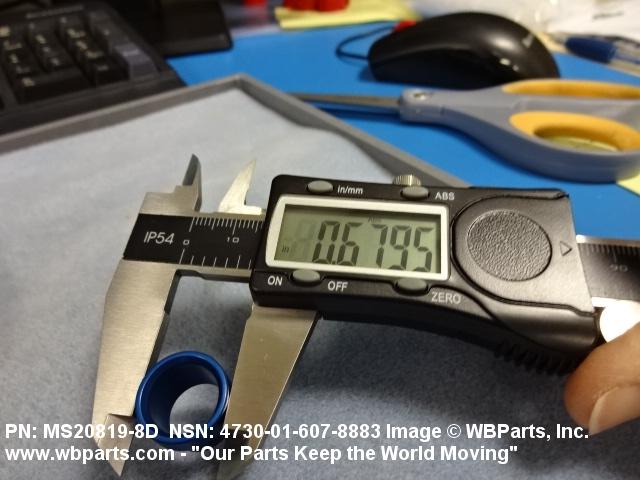

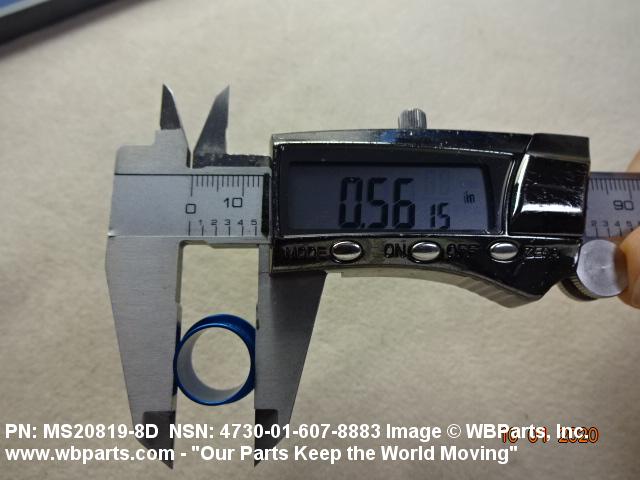

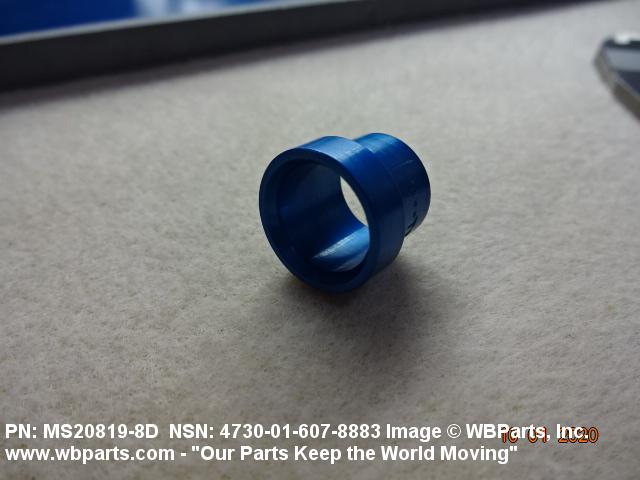

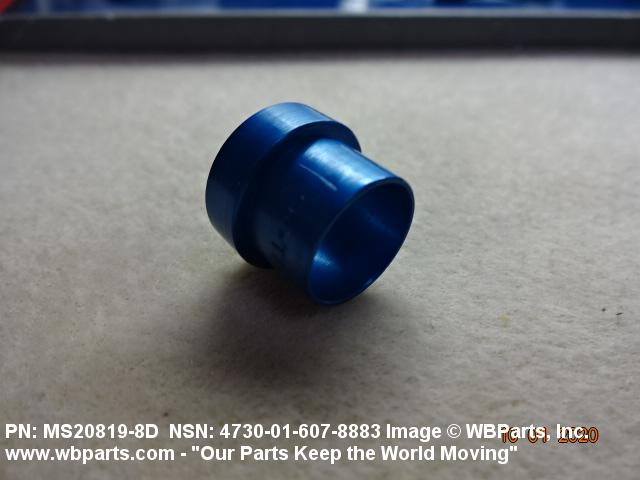

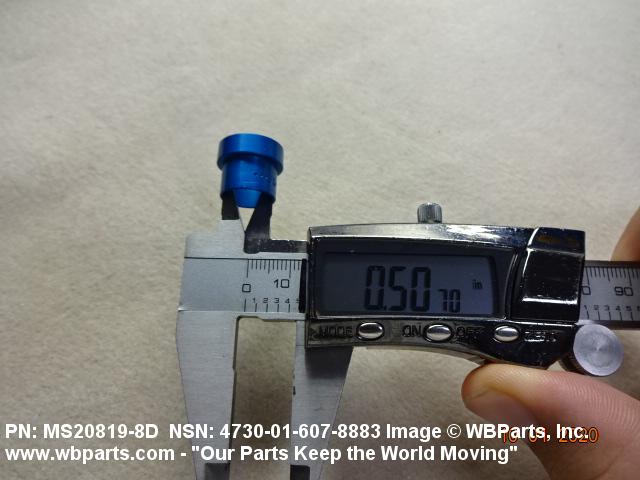

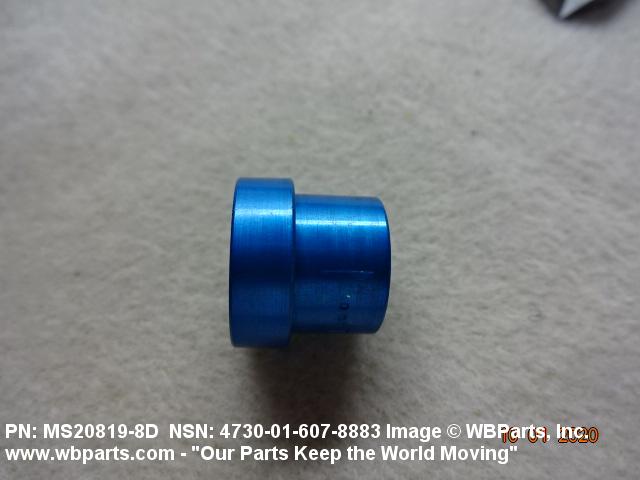

Drawings & Photos | NSN 4730-01-607-8883
Demand History | NSN 4730-01-607-8883
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS3220W08 | 2025-10-293 | 350 | us |
| MS208198D | 2025-08-223 | 1050 | us |
| AS3220W08 | 2025-07-198 | 588 | DIBBS |
| MS208198D | 2025-03-73 | 800 | us |
| MS208198D | 2024-07-200 | 40 | AE |
| AS3220W08 | 2024-05-149 | 136 | DIBBS |
| MS208198D | 2024-03-64 | 58 | UK |
| MS208198D | 2024-02-39 | 10 | United States |
| AS3220W08 | 2023-08-219 | 358 | DIBBS |
| AS3220W08 | 2023-02-37 | 30 | United States |
| AS3220W08 | 2023-02-36 | 273 | DIBBS |
| AS3220W08 | 2022-12-342 | 273 | DIBBS |
| AS3220W08 | 2022-07-200 | 40 | United States |
| AS3220W08 | 2022-06-181 | 273 | DIBBS |
| AS3220W08 | 2022-06-154 | 40 | United States |
| AS3220W08 | 2022-03-89 | 90 | United States |
| MS208198D | 2022-03-89 | 5 | United States |
| AS3220W08 | 2021-09-273 | 80 | us |
| AS3220W08 | 2021-08-216 | 99 | DIBBS |
| AS3220W08 | 2020-11-335 | 275 | United States |
| AS3220W08 | 2020-08-238 | 125 | DIBBS |
| AS3220W08 | 2019-08-238 | 15 | United States |
| 4730-01-607-8883 | 2018-07-194 | 8 | US |
| AS3220W08 | 2017-04-115 | 4 | United States |
| AS3220W08 | 2014-03-65 | 40 | US |
| AS3220W08 | 2013-05-130 | 6 | US |
| MS208198D | 2013-01-23 | 45 | United States |
| AS3220W08 | 2012-08-230 | 10 | US |
| MS208198D | 2012-03-81 | 6 | United Kingdom |
| MS208198D | 2010-11-305 | 600 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-607-8883
Technical Data | NSN 4730-01-607-8883
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES NOMINAL |
| STYLE DESIGNATOR | SLEEVE |
| OVERALL LENGTH | 0.562 INCHES NOMINAL |
| FLANGE WIDTH | 0.219 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.589 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 33.0 |
| SLEEVE OUTSIDE DIAMETER | 0.562 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4730-01-607-8883
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | BA | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
