NSN 4730-01-620-1600 AS4214T06 , AS85720A, 01-620-1600
Product Details | TUBE CAP
4730-01-620-1600 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: AS4214T06 , AS85720A, 4730-01-620-1600, 01-620-1600, 4730016201600, 016201600
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 2013186 | 01-620-1600 | 06074 ( CAP, TUBE ) |

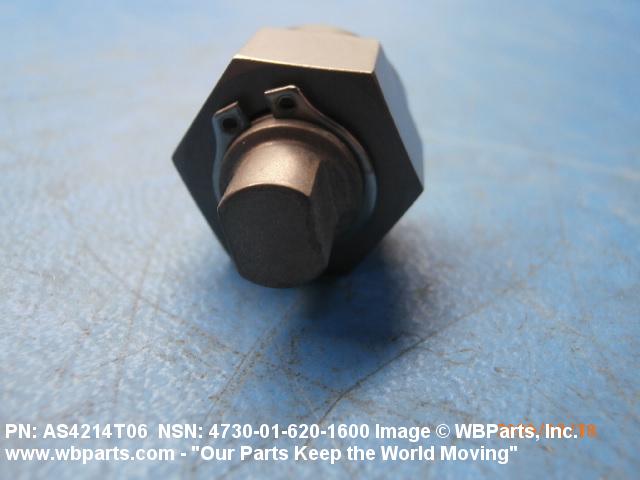

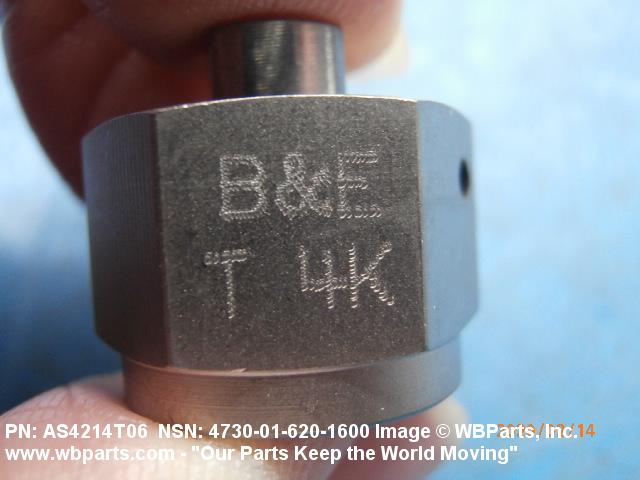

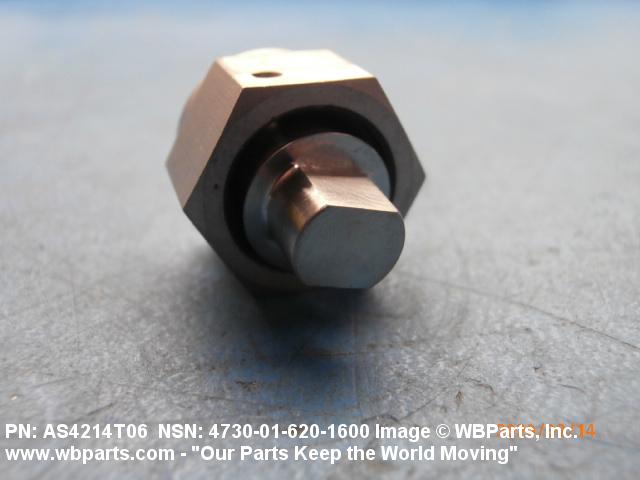

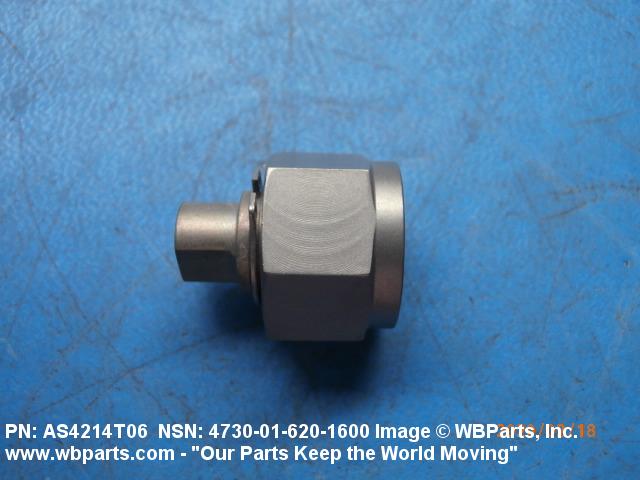

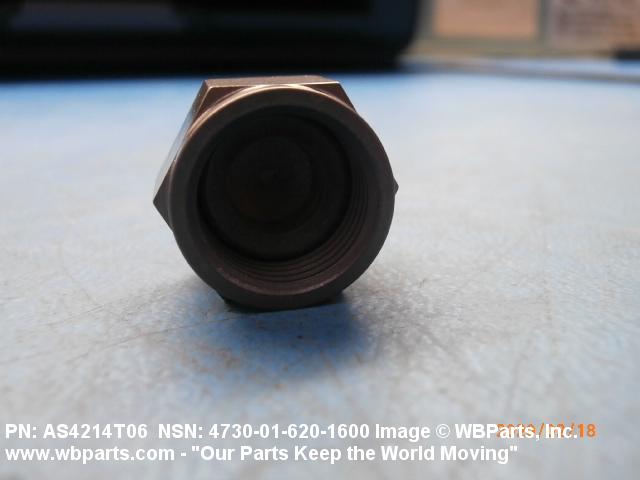

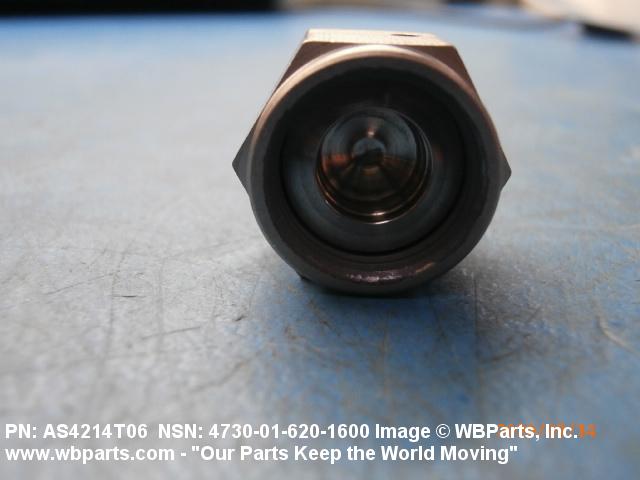

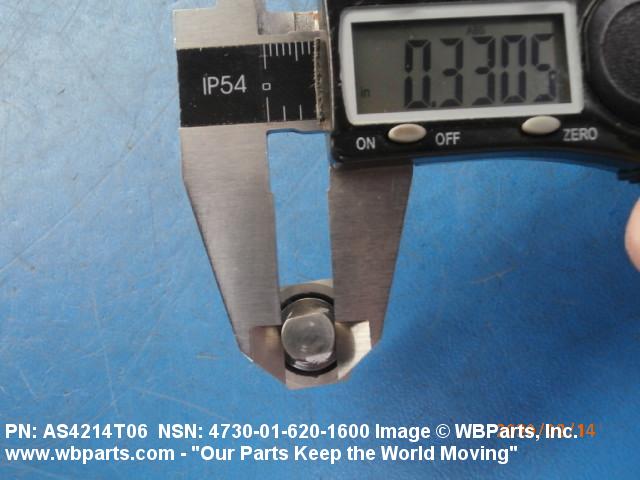

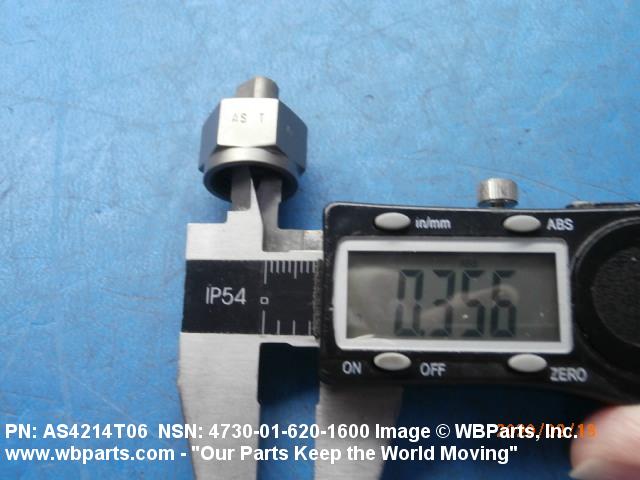

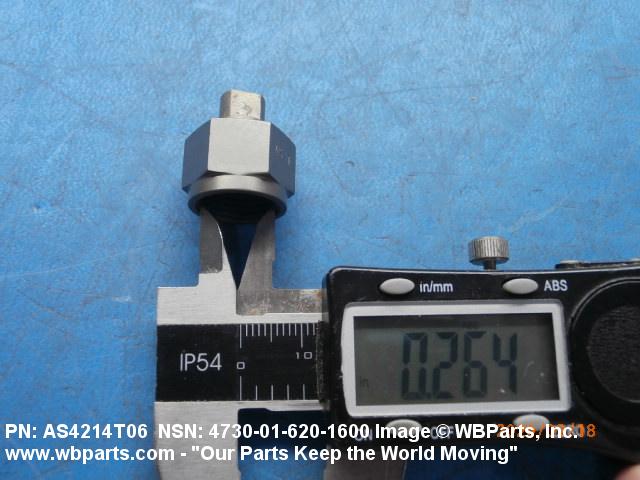

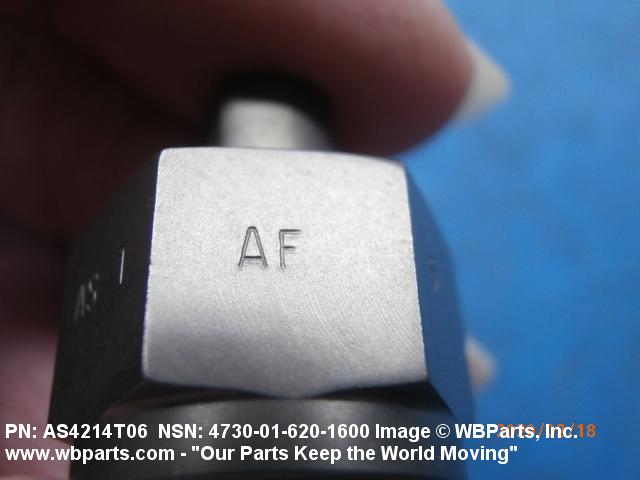

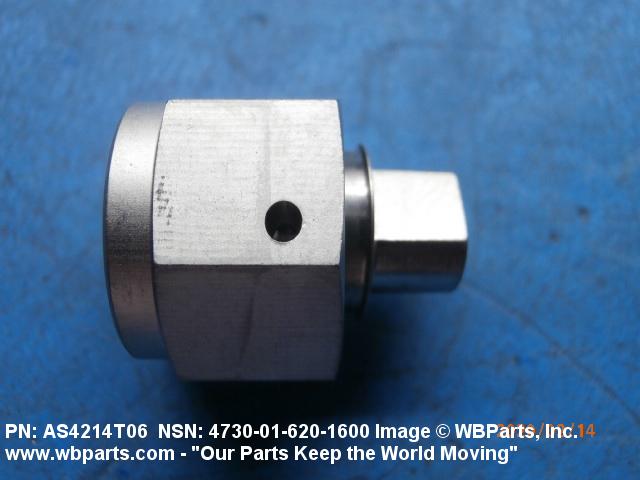

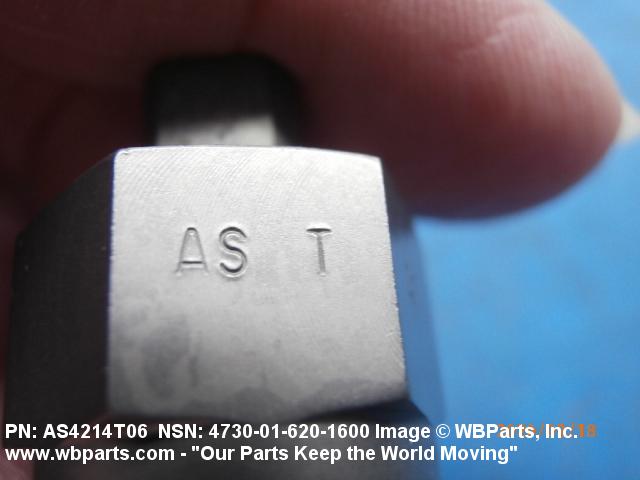

Drawings & Photos | NSN 4730-01-620-1600
Demand History | NSN 4730-01-620-1600
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-620-1600 | 2025-05-128 | 89 | DIBBS |
| AS4214T06 | 2023-04-117 | 14 | United States |
| 4730-01-620-1600 | 2022-12-360 | 34 | DIBBS |
| 4730-01-620-1600 | 2022-03-90 | 34 | DIBBS |
| 4730-01-620-1600 | 2020-02-36 | 2 | United States |
| 4730-01-620-1600 | 2019-09-262 | 65 | DIBBS |
| AS4214T06 | 2018-10-296 | 10 | United States |
| 4730-01-620-1600 | 2018-05-126 | 17 | DIBBS |
| AS4214T06 | 2016-10-293 | 10 | United States |
| 4730-01-620-1600 | 2014-11-329 | 4 | DIBBS |
| AS4214T06 | 2014-05-140 | 3 | United States |
| AS4214T06 | 2014-05-140 | 3 | United States |
| 4730-01-620-1600 | 2014-03-66 | 4 | DIBBS |
| 4730-01-620-1600 | 2014-02-52 | 4 | DIBBS |
| 4730-01-620-1600 | 2013-12-350 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-620-1600
Related Products | NSN 4730-01-620-1600
Technical Data | NSN 4730-01-620-1600
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4965 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | CAP, TUBE, FLARELESS |
| CONNECTION STYLE | GASKET SEAL |
| THREAD SERIES DESIGNATOR | UNJS INTERNAL |

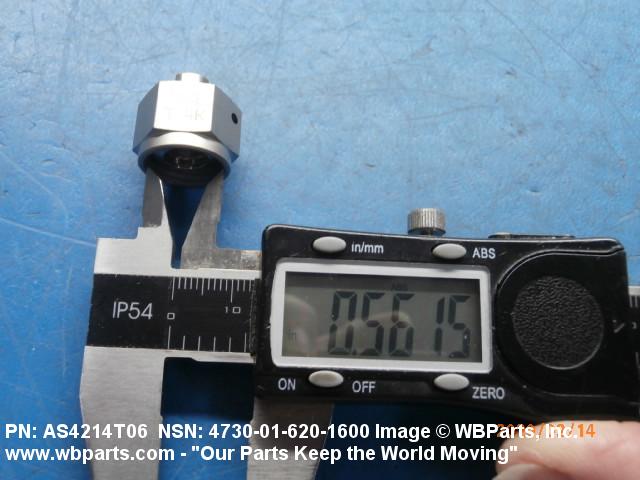

| NOMINAL THREAD SIZE | 0.563 INCHES INTERNAL |

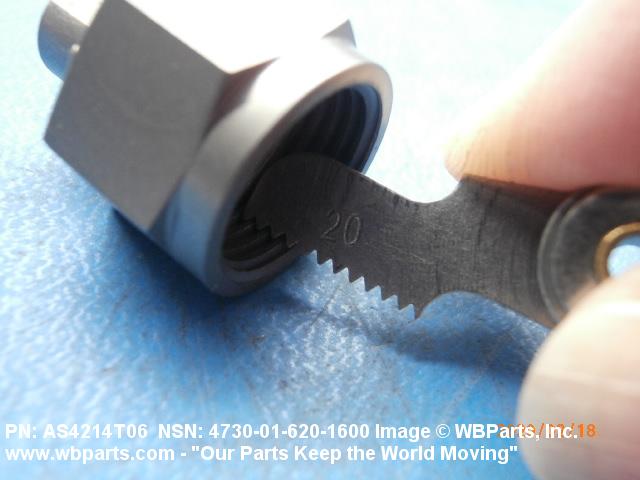

| THREAD QUANTITY PER INCH | 20 INTERNAL |
| THREAD CLASS | 3B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |

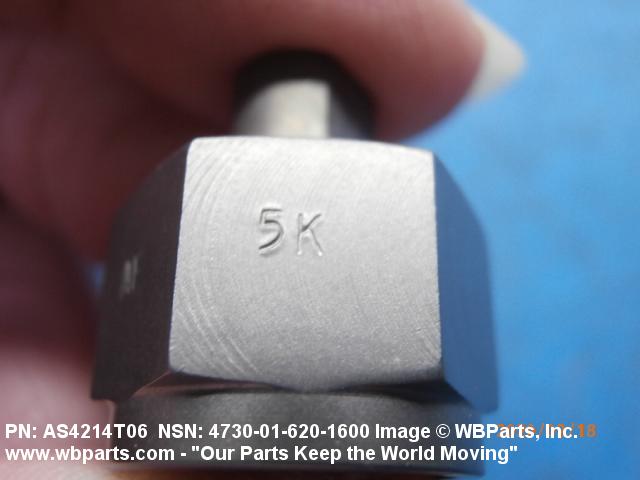

| MAXIMUM OPERATING PRESSURE | 5000.0 POUNDS PER SQUARE INCH |
| III END ITEM IDENTIFICATION | F-35 AIRCRAFT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FITTING,CAP ASSEMBLY,BEAM SEAL,HYDRAULIC |
Restrictions/Controls & Freight Information | NSN 4730-01-620-1600
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 040500 | CAP/PLUG (PROTECTOR) |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-620-1600
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | NV | TG:JOINT VERTICAL LIFT AIRCRAFT CV-22 (OSPREY) |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
