NSN 4730-01-622-7187 MS20757D12, MS20757-D12 , 01-622-7187
Product Details | FLANGE TO HOSE STRAIGHT ADAPTER
4730-01-622-7187 An adapter having a flange connection on one end designed to connect with another flange connection or a compression type mounting pad. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a flange or flange fitting to a hose or hose fitting in a straight line.
Part Alternates: MS20757D12, MS20757-D12 , 4730-01-622-7187, 01-622-7187, 4730016227187, 016227187
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 2013294 | 01-622-7187 | 29655 ( ADAPTER, STRAIGHT, FLANGE TO HOSE ) |

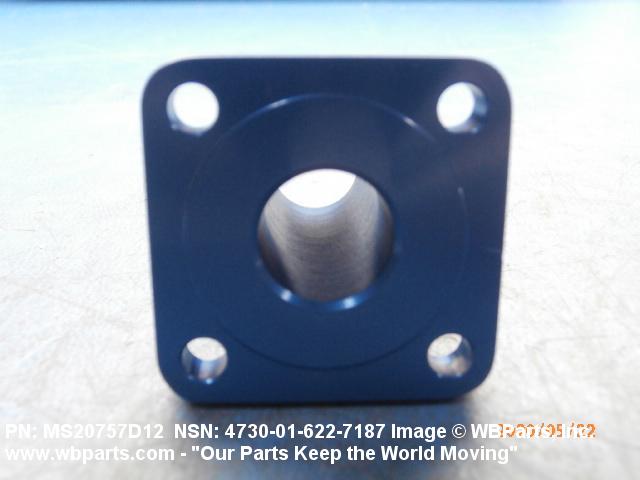

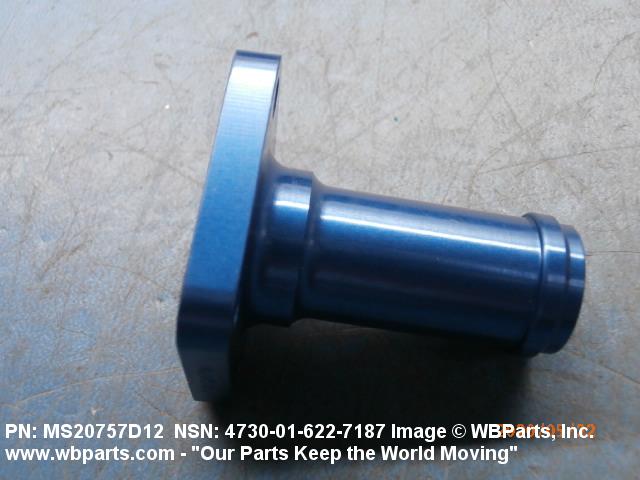

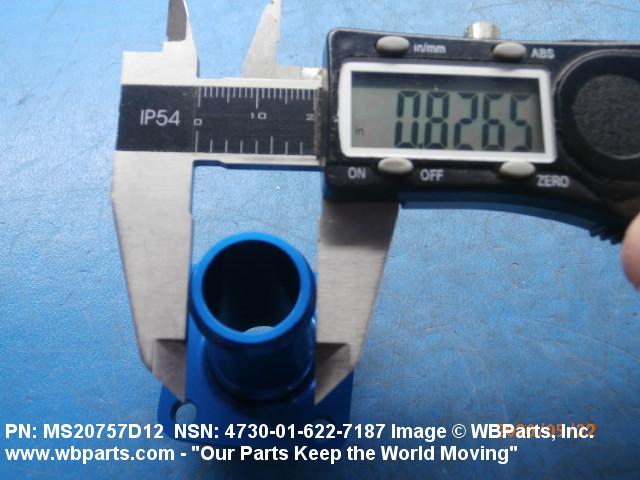

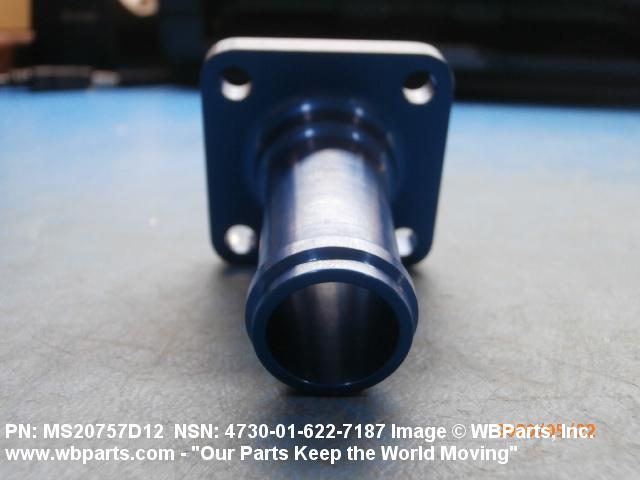

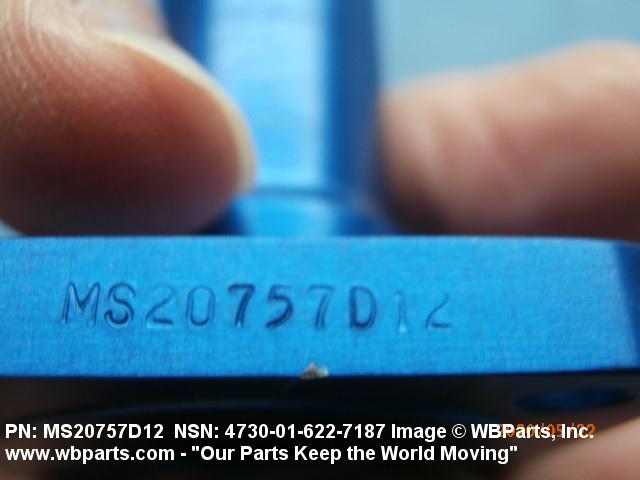

Drawings & Photos | NSN 4730-01-622-7187
Demand History | NSN 4730-01-622-7187
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-622-7187 | 2020-02-43 | 4 | United States |
Cross Reference | NSN 4730-01-622-7187
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20757-D12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-622-7187
Technical Data | NSN 4730-01-622-7187
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| MEDIA FOR WHICH DESIGNED | FUEL SINGLE RESPONSE |
| STYLE DESIGNATOR | INSERT AND THREADED INTERNAL |
| CONNECTION TYPE | FLANGE 2ND END |
| NOMINAL OUTSIDE DIAMETER | 2.312 INCHES 2ND END |

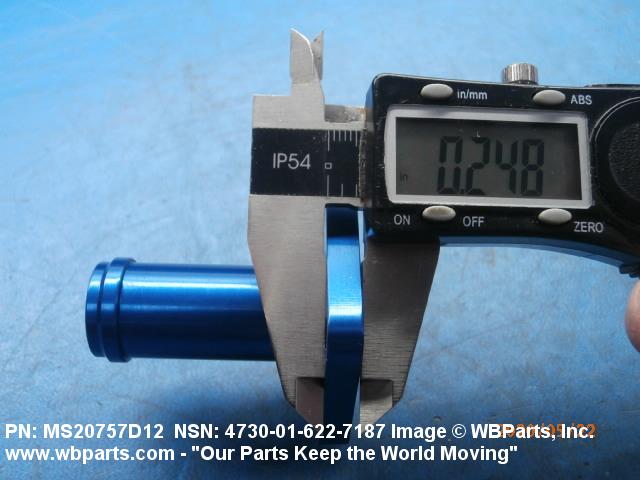

| NOMINAL THICKNESS | 0.250 INCHES 2ND END |
| BOLT HOLE QUANTITY | 4 2ND END |

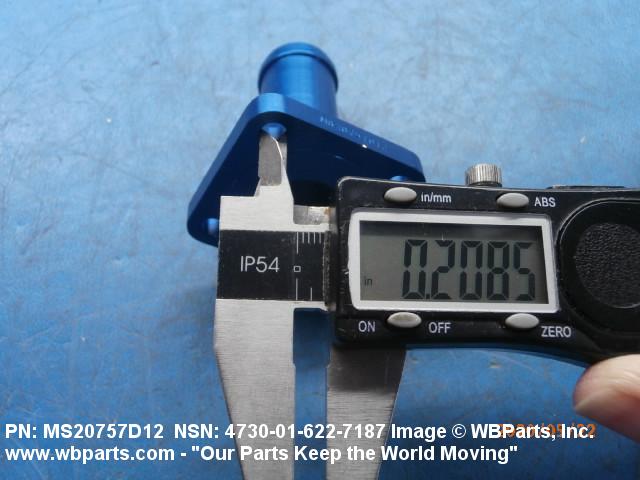

| BOLT HOLE NOMINAL DIAMETER | 0.210 INCHES 2ND END |
| BOLT CIRCLE NOMINAL DIAMETER | 0.219 INCHES 2ND END |

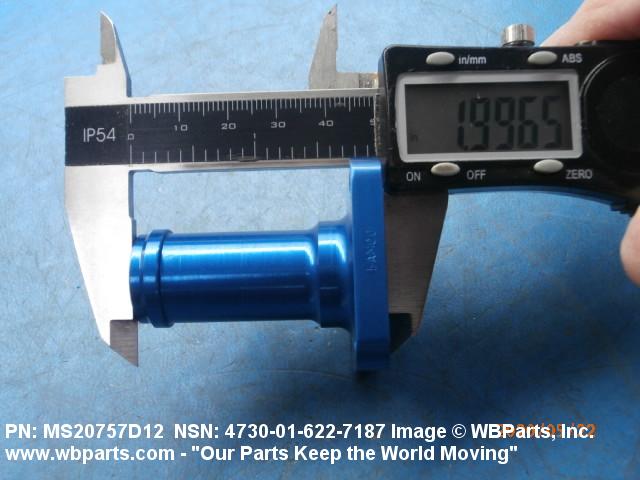

| NOMINAL OVERALL LENGTH | 2.000 INCHES |
| END ITEM IDENTIFICATION | B-52 AIRCRAFT |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | CONNECTOR, FIXED FLANGE, TO HOSE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20757-D12 |
Restrictions/Controls & Freight Information | NSN 4730-01-622-7187
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-622-7187
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
