NSN 4810-00-133-1389 442-M 3IN, 442M3IN, 45205C
Product Details | GLOBE VALVE
4810-00-133-1389 A valve with one inlet and one outlet connection with outlet flow parallel to inlet flow. The flow is controlled by the action of a stem which lifts the disk perpendicularly off the center axis of its seat. The stem is at a 90 degree (1.5708 radians) angle to axis of flow. Excludes VALVE, STOP-CHECK; COCK, SHUTOFF, SCREW STEM; and VALVE, SOLENOID.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 442-M 3IN, 442M3IN, 45205C, 45205G, 4810-00-133-1389, 00-133-1389, 4810001331389, 001331389
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 02 JAN 1969 | 00-133-1389 | 05485 ( VALVE, GLOBE ) |

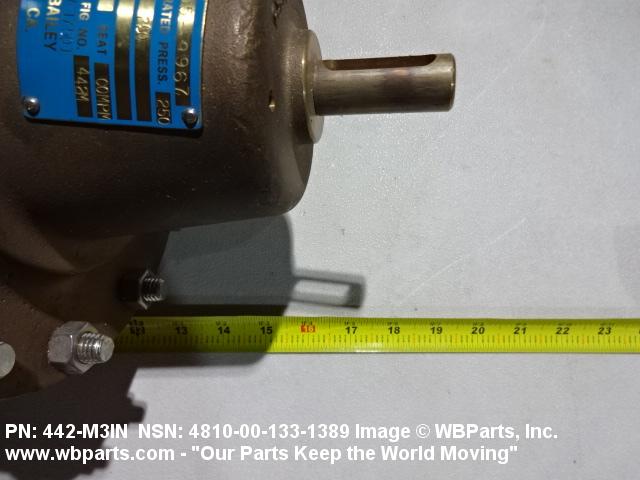

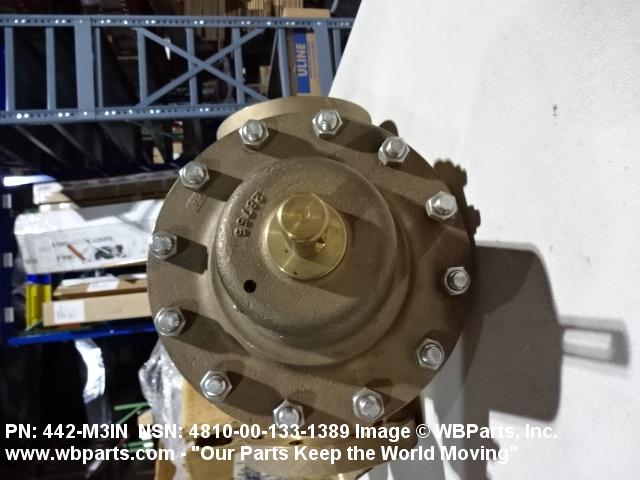

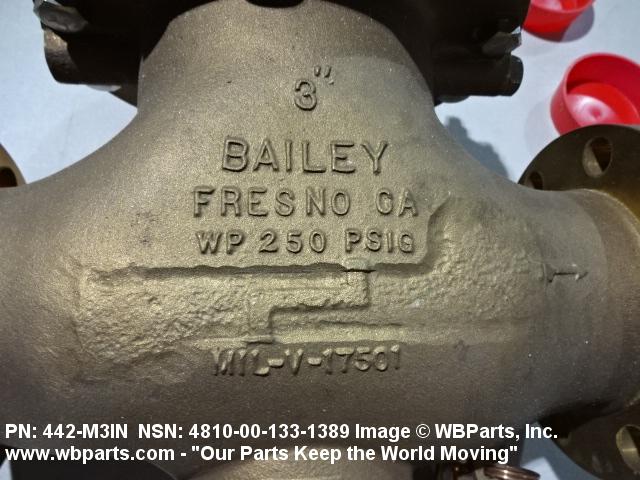

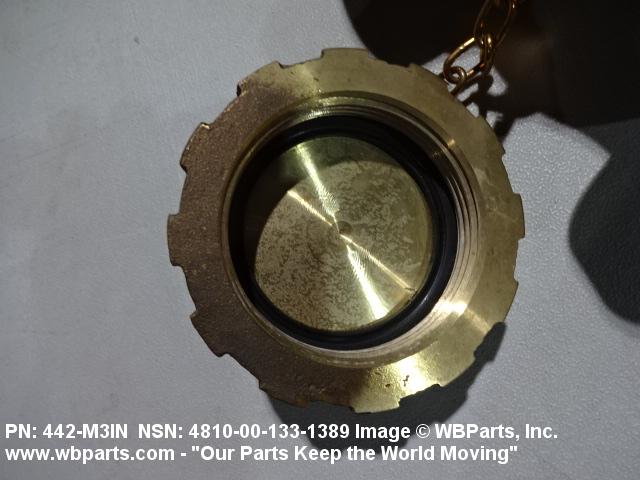

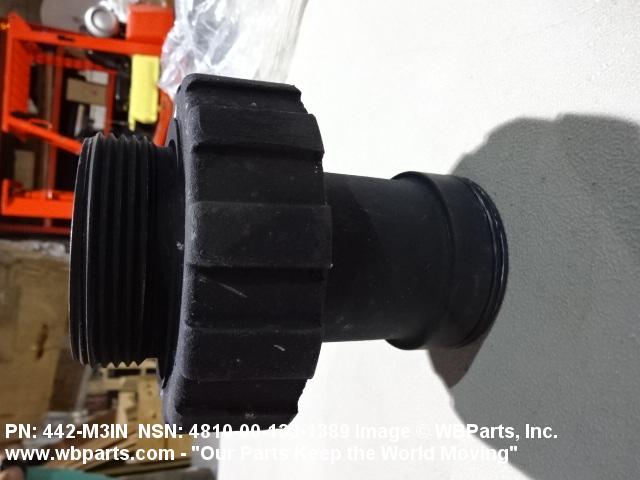

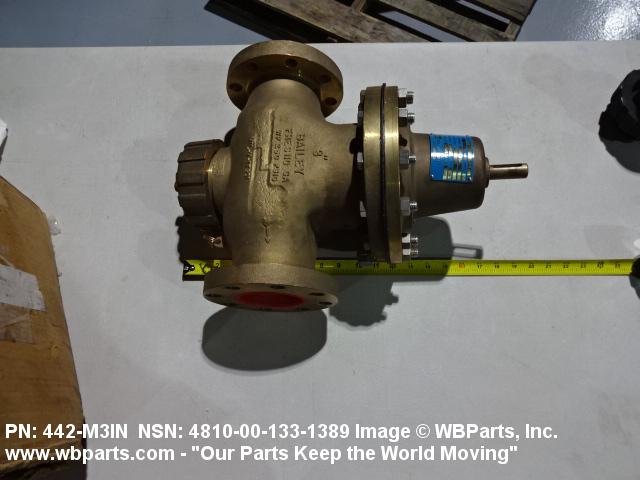

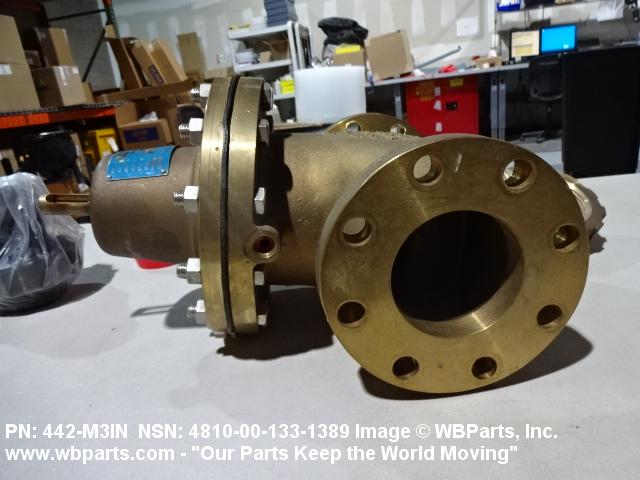

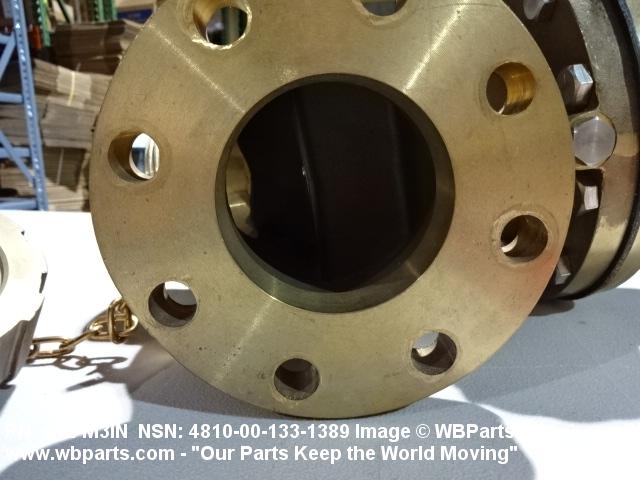

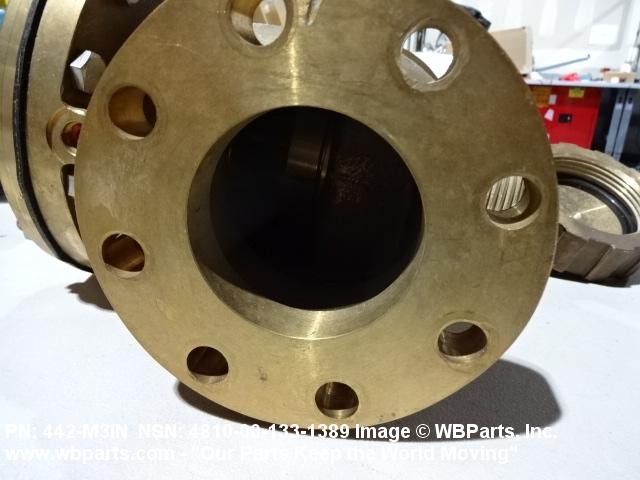

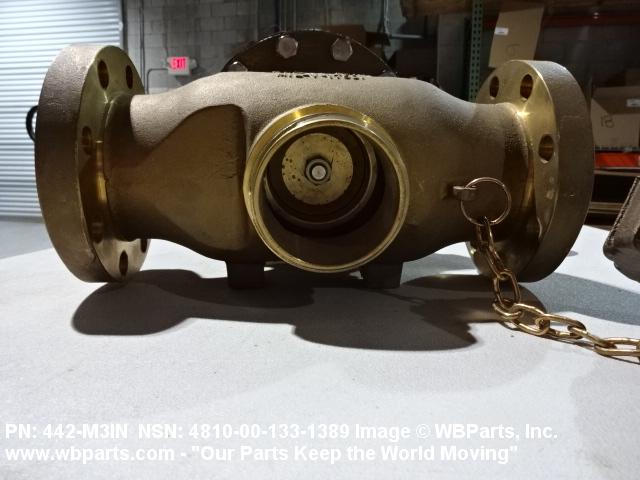

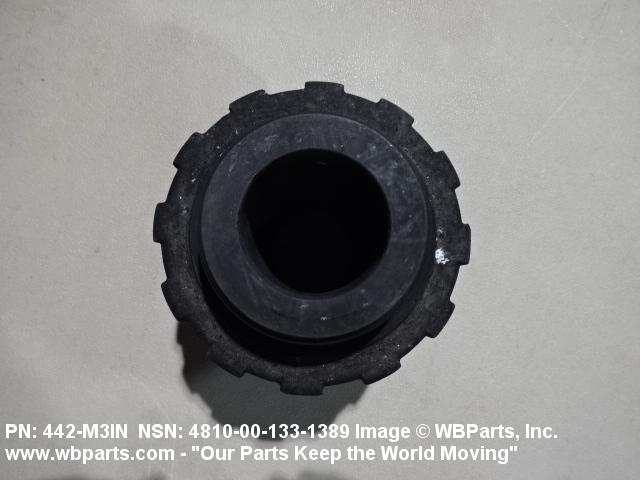

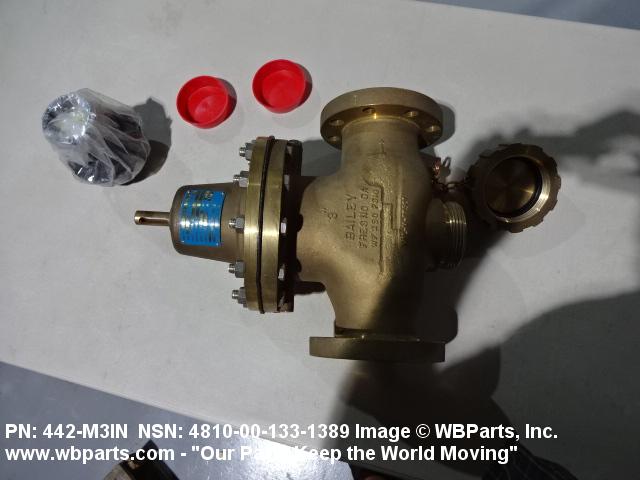

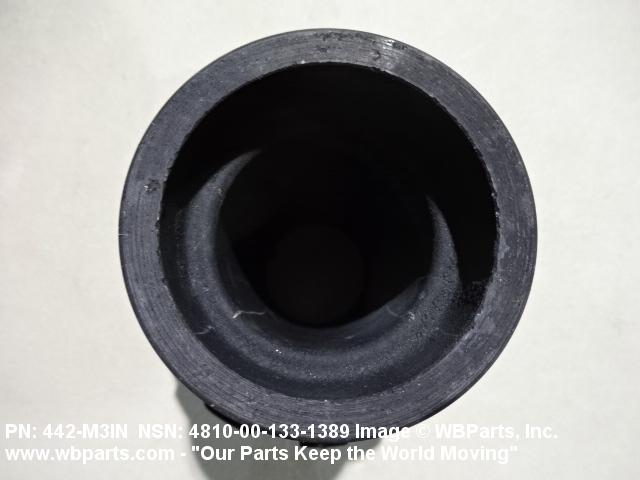

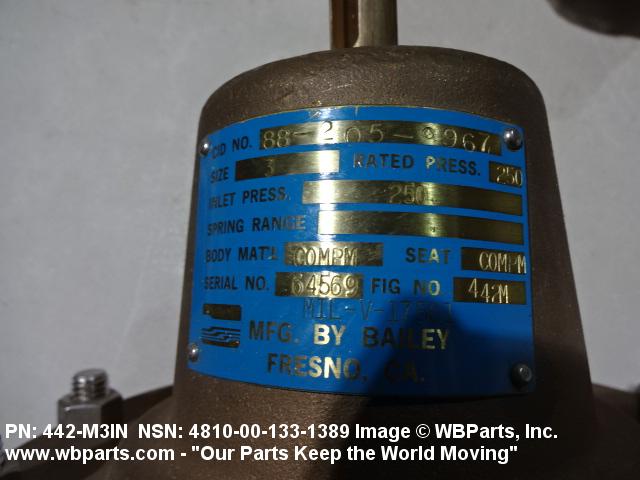

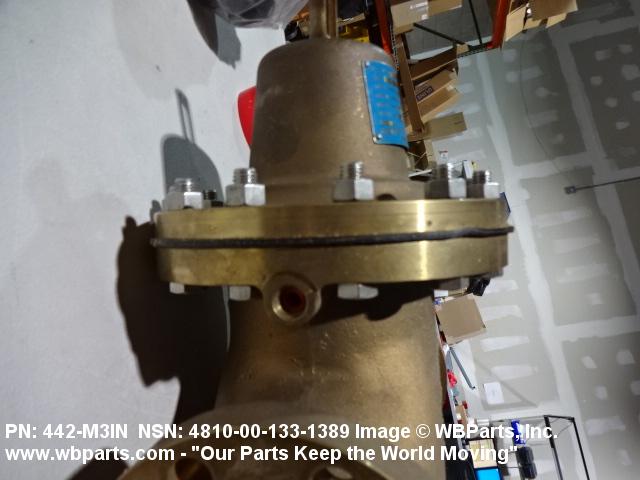

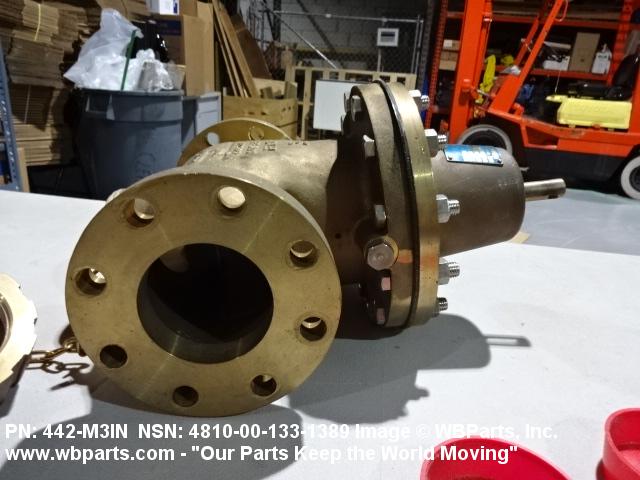

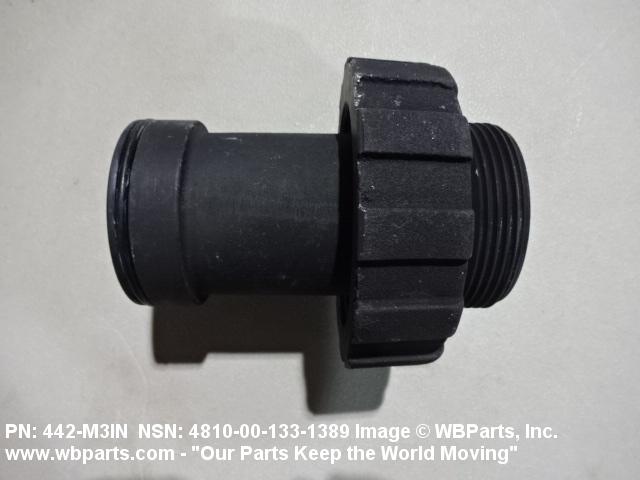

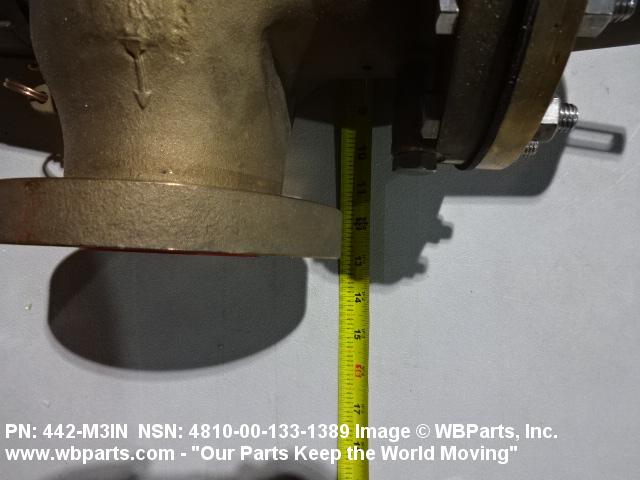

Drawings & Photos | NSN 4810-00-133-1389
Demand History | NSN 4810-00-133-1389
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4810-00-133-1389 | 2020-02-42 | 2 | NECO |
| 4810-00-133-1389 | 2019-08-233 | 1 | NECO |
| 4810-00-133-1389 | 2018-11-306 | 2 | NECO |
| 4810-00-133-1389 | 2017-08-240 | 1 | United States |
| 4810-00-133-1389 | 2012-10-298 | 1 | NECO |
| 4810-00-133-1389 | 2011-06-159 | 2 | NECO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-00-133-1389
Related Products | NSN 4810-00-133-1389
Technical Data | NSN 4810-00-133-1389
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY COPPER ALLOY FLOW CONTROL DEVICE RUBBER SEAT NICKEL ALLOY STEM |
| STYLE DESIGNATOR | A1A STRAIGHT THRU FLANGED ENDS |
| VALVE SIZE | 3.000 INCHES |
| FLOW CONTROL DEVICE | DISK |
| MEDIA FOR WHICH DESIGNED | WATER, SALT SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 250.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | FLANGE 1ST END |
| FLANGE SHAPE | ROUND WITH HOLES 1ST END |
| NOMINAL OUTSIDE DIAMETER | 6.630 INCHES 1ST END |
| NOMINAL THICKNESS | 0.940 INCHES 1ST END |
| BOLT HOLE QUANTITY | 8 1ST END |
| BOLT HOLE NOMINAL DIAMETER | 0.690 INCHES 1ST END |
| BOLT CIRCLE NOMINAL DIAMETER | 5.500 INCHES 1ST END |
| RENEWABLE SEAT RING TYPE | THREADED |
| BONNET TYPE | PACKING RETAINING |
| MANUFACTURERS CODE | 86184 |
| DESIGN CONTROL REFERENCE | 45205G |
Restrictions/Controls & Freight Information | NSN 4810-00-133-1389
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-00-133-1389
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
