Product Details | SOLENOID VALVE
4810-01-107-8565 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: 125115CA, 125-115CA, 125AA115, 125AA-115, 4810-01-107-8565, 01-107-8565, 4810011078565, 011078565
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01-107-8565 | 10998 ( VALVE, SOLENOID ) |

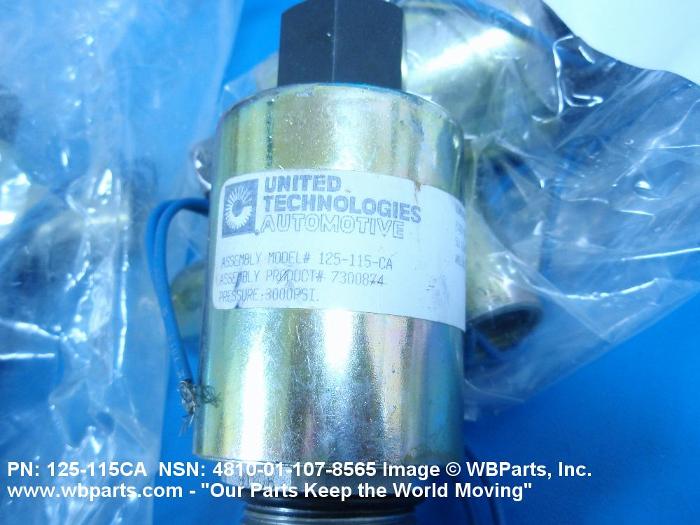

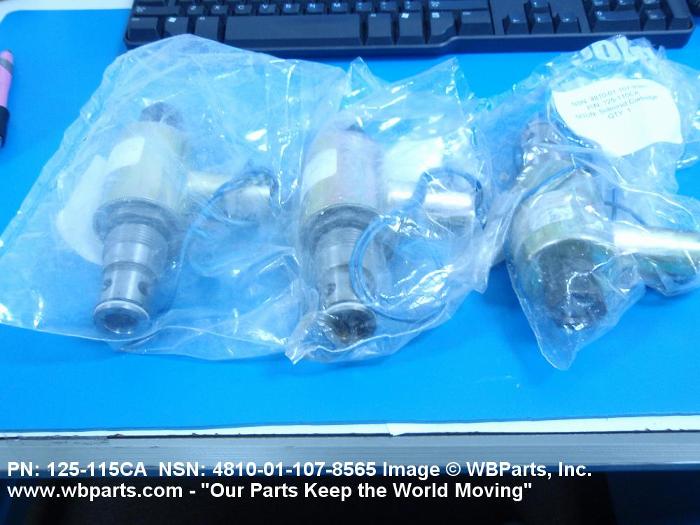

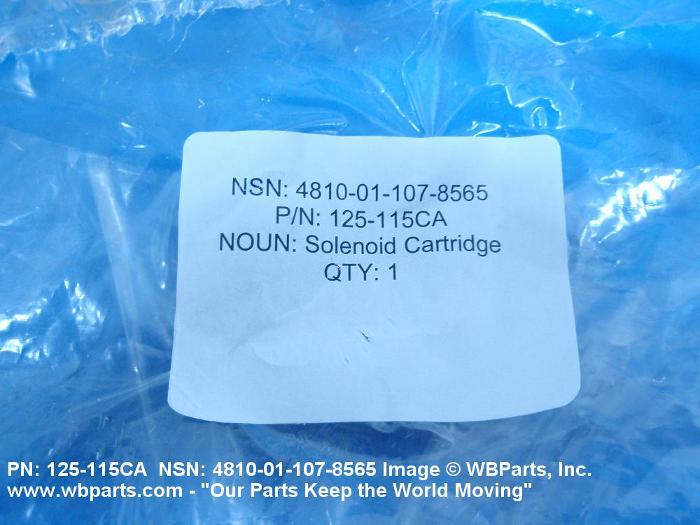

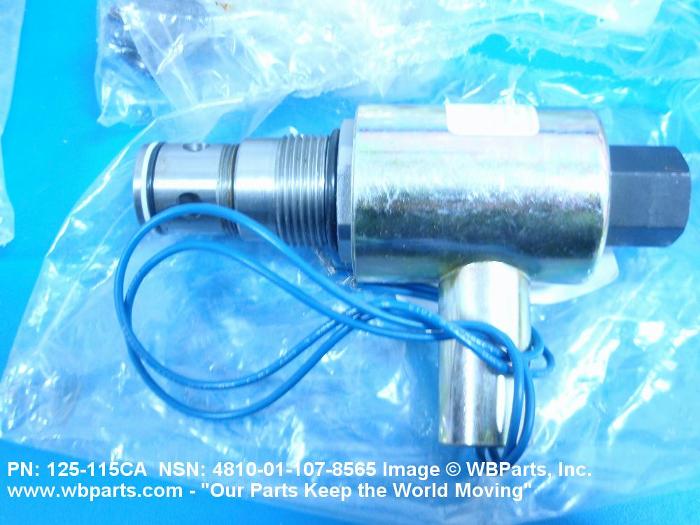

Drawings & Photos | NSN 4810-01-107-8565
Demand History | NSN 4810-01-107-8565
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4810-01-107-8565 | 2023-06-27 | 4 | GU |
| 125AA115 | 2023-06-07 | 4 | US |
| 125AA115 | 2023-06-05 | 4 | US |
| 4810-01-107-8565 | 2022-10-03 | 1 | US |
| 125AA115 | 2022-08-11 | 3 | United States |
| 4810-01-107-8565 | 2022-07-22 | 1 | US |
| 4810-01-107-8565 | 2020-02-27 | 5 | US |
| 4810-01-107-8565 | 2017-08-08 | 1 | United States |
| 4810-01-107-8565 | 2017-08-07 | 4 | us |
| 4810-01-107-8565 | 2015-11-30 | 2 | US |
| 4810-01-107-8565 | 2015-01-20 | 1 | United States |
| 4810-01-107-8565 | 2012-12-06 | 6 | United States |
| 4810-01-107-8565 | 2010-08-09 | 2 | DIBBS |
| 4810-01-107-8565 | 2010-07-27 | 3 | US |
| 4810-01-107-8565 | 2010-07-27 | 1 | DIBBS |
| 4810-01-107-8565 | 2010-07-26 | 2 | US |
| 125115CA | 2008-11-11 | 3 | United States |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4810-01-107-8565
4810-01-107-9694, 4810-01-107-9969, 4810-01-108-0588, 4810-01-108-0737, 4810-01-108-1179
Technical Data | NSN 4810-01-107-8565
| Characteristic | Specifications |
|---|---|
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 180.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| III END ITEM IDENTIFICATION | AIRCRAFT TYPE B52 |
Restrictions/Controls & Freight Information | NSN 4810-01-107-8565
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
