NSN 4810-01-354-5220 DS161CRTD024HD12T, DS161CRTD024HD-12T , DSH161CRTD024HD12T

Product Details | DIRECTIONAL CONTROL LINEAR VALVE

4810-01-354-5220 A manually or power operated valve having three or more ports. The direction of the flow through the various ports is controlled by either one or more reciprocating slide(s) or spool(s) with recess areas which mate with ports in an integral or replaceable ported sleeve, or one or more poppet(s). It is designed to change the direction of fluid flow from one valve port to another. An off (no flow) position is not a flow pattern. The valve is designed to actuate various components of a fluid system. A power operated valve may have a manual override. For items which stop, start, or change the flow of fluid, see: VALVE, SOLENOID. Excludes VALVE, PLUG. See also SERVOVALVE, HYDRAULIC; BODY SECTION, WORKING, LINEAR DIRECTIONAL CONTROL VALVE; and VALVE ASSEMBLY.20248100015Valves, Powered48200018Valves, Nonpowered

Part Alternates: DS161CRTD024HD12T, DS161CRTD024HD-12T , DSH161CRTD024HD12T, DSH161CRTD024HD-12T , 2HG468 , 7926002881, 7-926-002881, 4810-01-354-5220, 01-354-5220, 4810013545220, 013545220

Valves | Valves, Powered

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
48	29 FEB 1992	01-354-5220	61929 ( VALVE, LINEAR, DIRECTIONAL CONTROL )

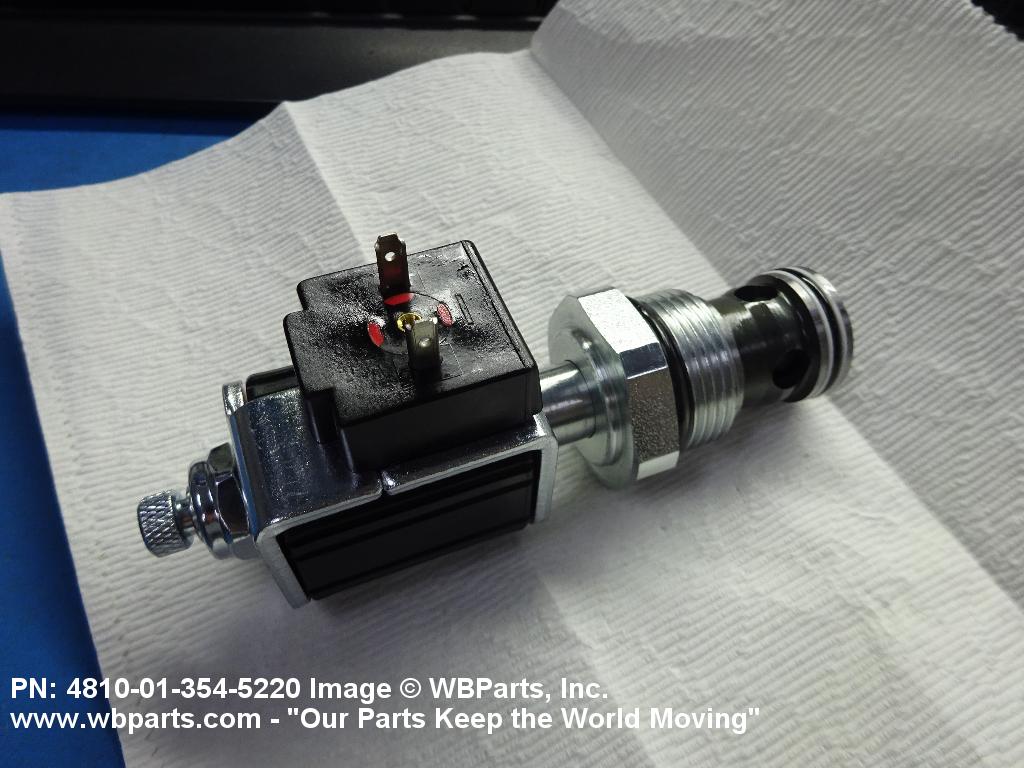

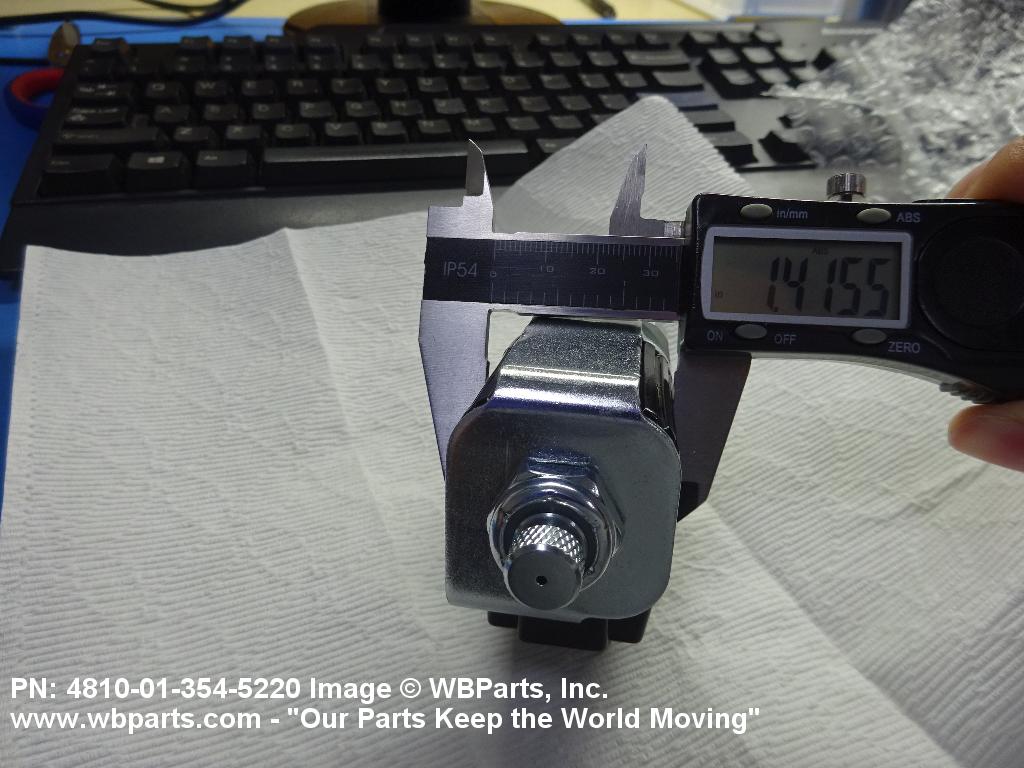

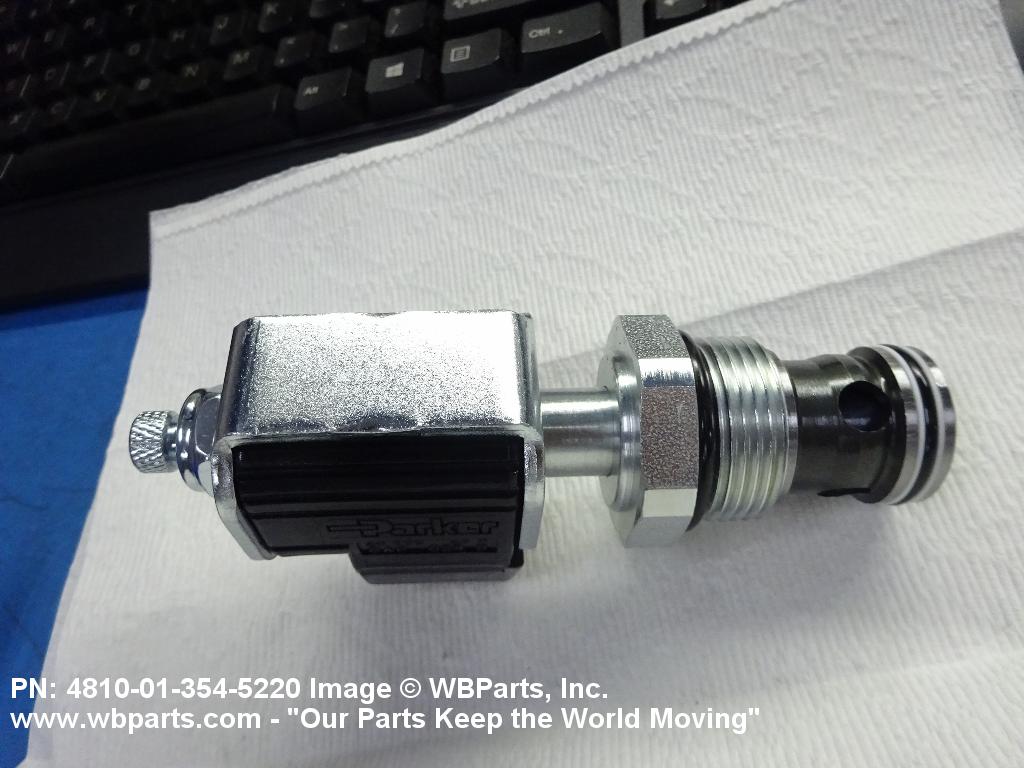

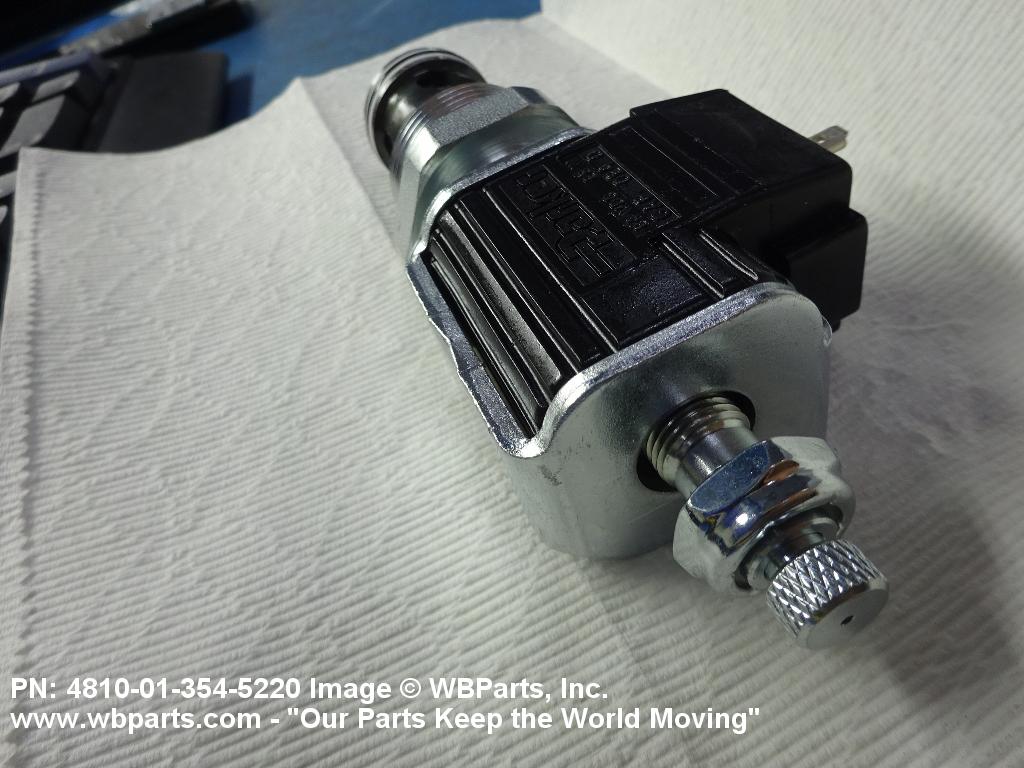

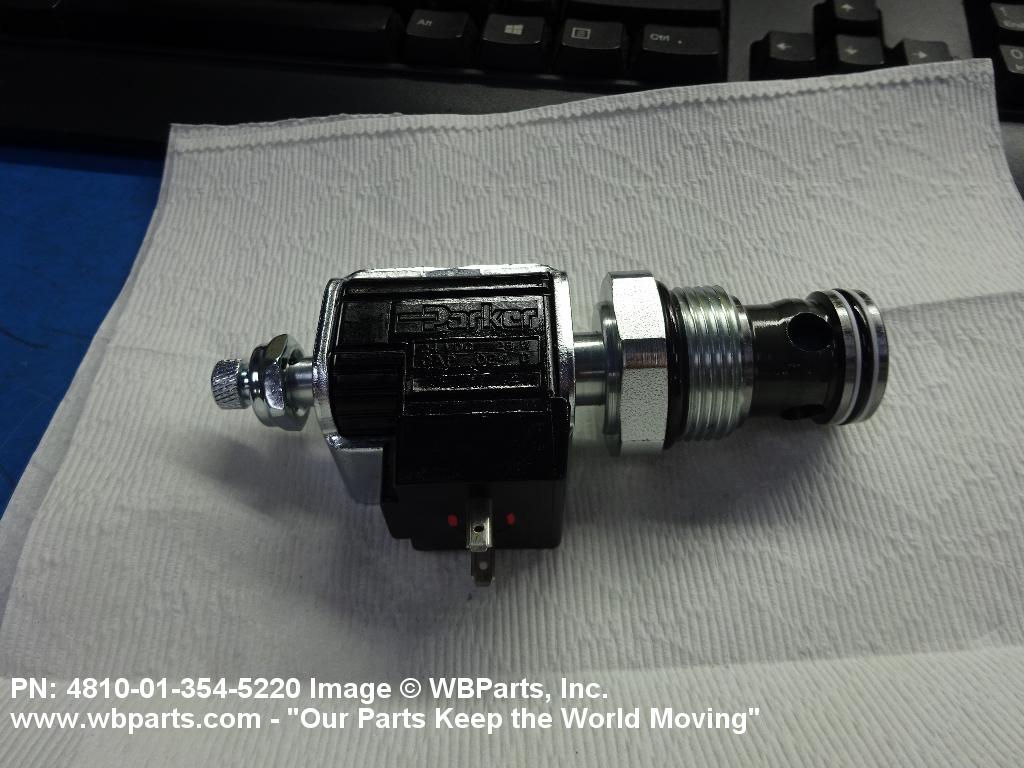

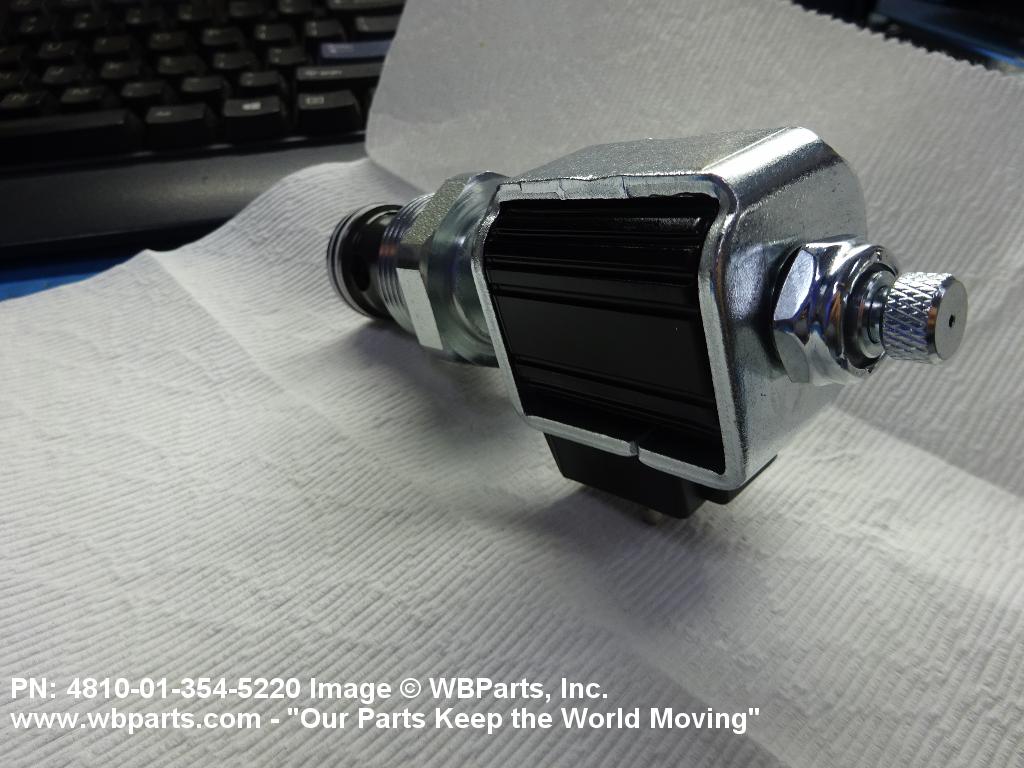

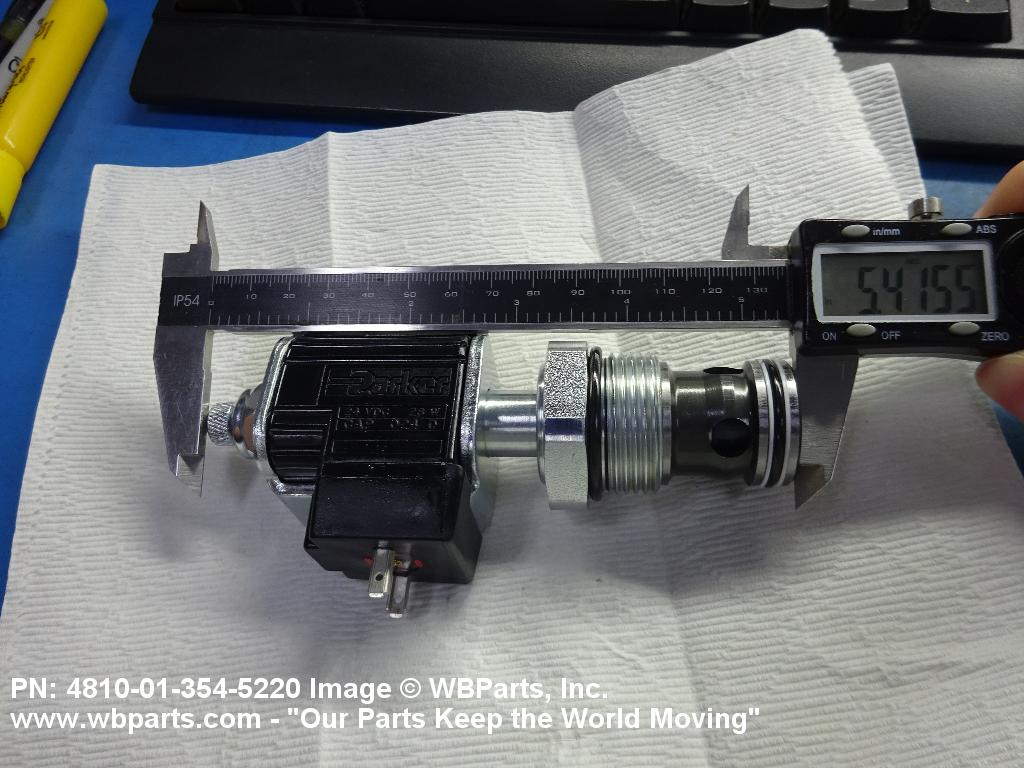

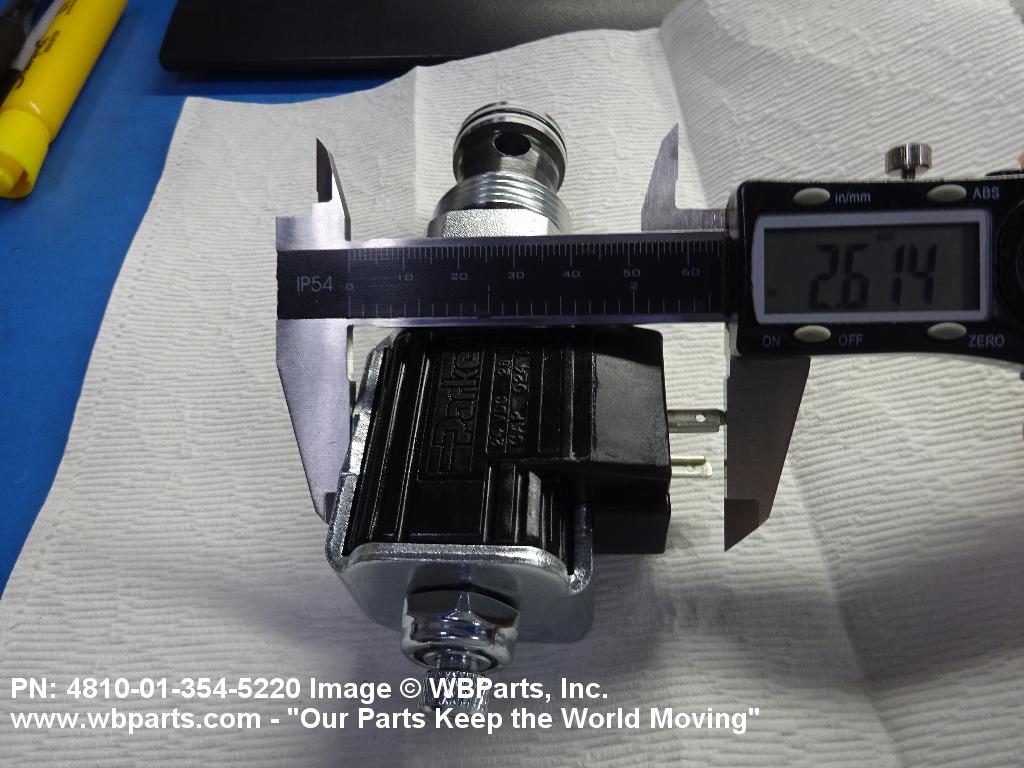

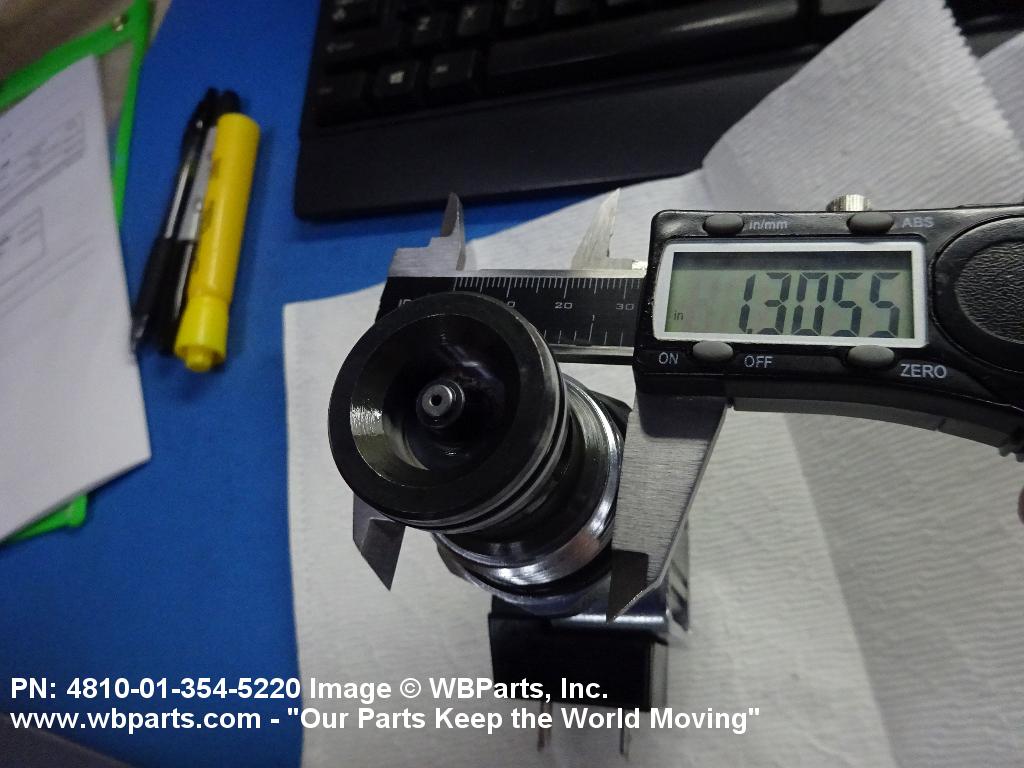

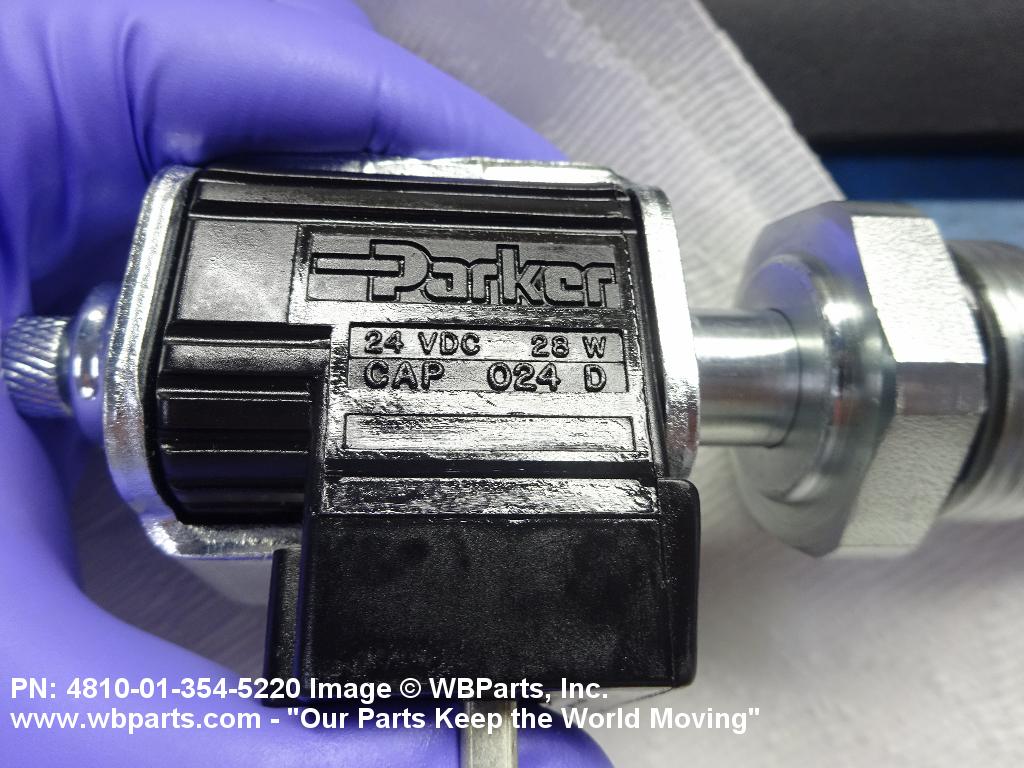

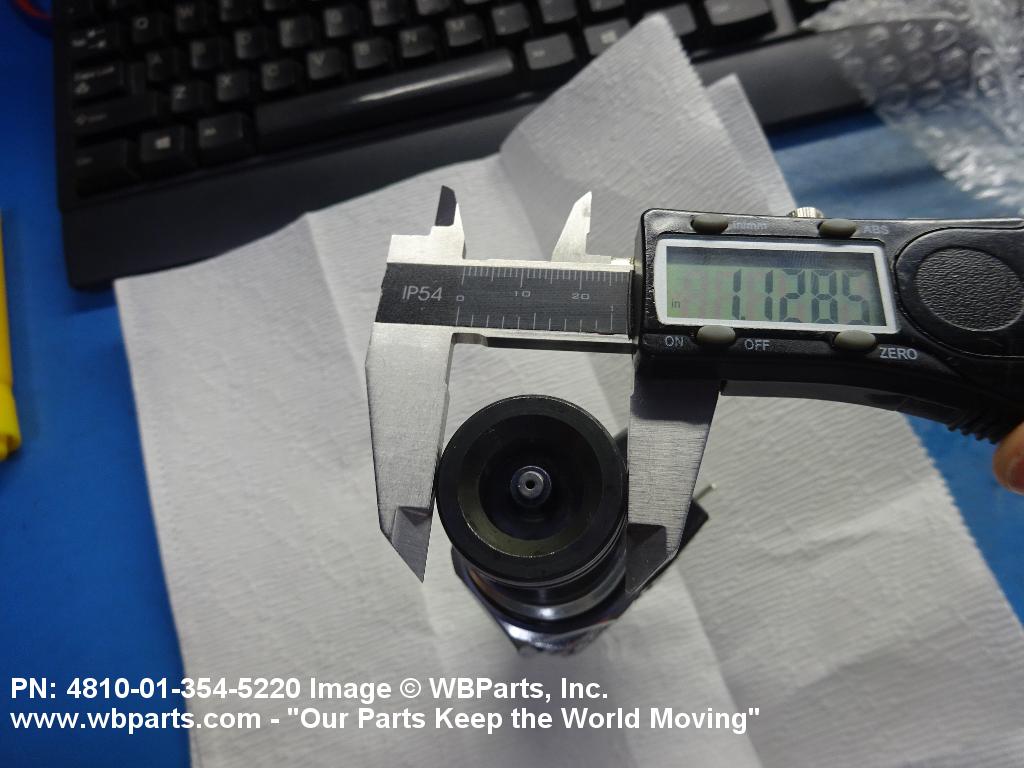

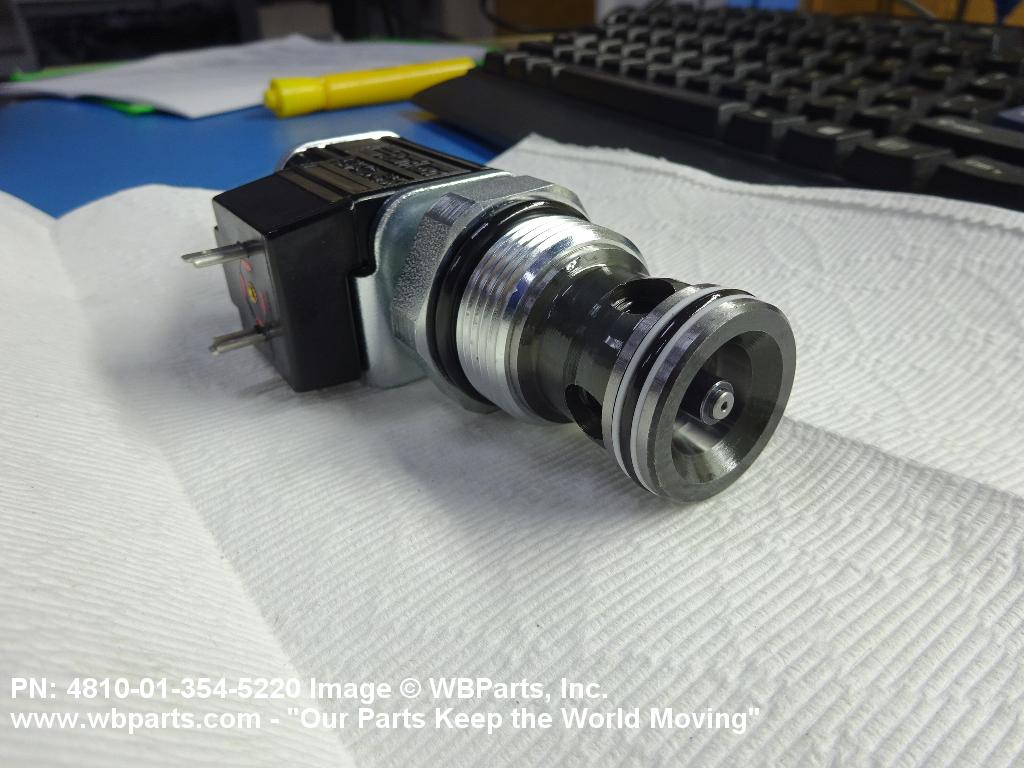

Drawings & Photos | NSN 4810-01-354-5220

Part Number	Request Date	QTY	Origin
90045225	2025-07-209	43	DIBBS
DSH161CRTSPD024D-12T	2025-07-209	43	DIBBS
90045225	2025-07-198	43	DIBBS
DSH161CRTSPD024D-12T	2025-07-198	43	DIBBS
90045225	2025-05-139	9	DIBBS
DSH161CRTSPD024HD-12T	2025-05-139	9	DIBBS
90045225	2025-05-128	9	DIBBS
DSH161CRTSPD024HD-12T	2025-05-128	9	DIBBS
90045225	2024-07-204	21	DIBBS
DSH161CRTSPD024HD-12T	2024-07-204	21	DIBBS
90045225	2024-07-193	21	DIBBS
DSH161CRTSPD024HD-12T	2024-07-193	21	DIBBS
90045225	2023-12-352	22	DIBBS
DSH161CRTSPD024HD-12T	2023-12-352	22	DIBBS
90045225	2023-12-341	22	DIBBS
DSH161CRTSPD024HD-12T	2023-12-341	22	DIBBS
4810-01-354-5220	2022-10-291	1	United States
7-926-002881	2022-10-279	27	DIBBS
DSH161CRTSPD024HD-12T	2022-10-279	27	DIBBS
4810-01-354-5220	2022-07-201	1	US
7-926-002881	2022-06-167	24	DIBBS
DSH161CRTSPD024HD-12T	2022-06-167	24	DIBBS
7-926-002881	2022-03-67	17	DIBBS
DSH161CRTSPD024HD-12T	2022-03-67	17	DIBBS
7-926-002881	2022-02-55	17	DIBBS
DSH161CRTSPD024HD-12T	2022-02-55	17	DIBBS
7-926-002881	2021-05-127	27	DIBBS
DSH161CRTSPD024HD-12T	2021-05-127	27	DIBBS
7-926-002881	2021-04-112	27	DIBBS
DSH161CRTSPD024HD-12T	2021-04-112	27	DIBBS
4810-01-354-5220	2018-10-288	43	DIBBS
4810-01-354-5220	2018-10-277	43	DIBBS
4810-01-354-5220	2016-07-213	51	DIBBS
4810-01-354-5220	2015-07-194	45	DIBBS
4810-01-354-5220	2015-07-182	45	DIBBS
4810-01-354-5220	2014-12-349	72	DIBBS
4810-01-354-5220	2014-12-337	72	DIBBS
4810-01-354-5220	2013-01-24	13	DIBBS
4810-01-354-5220	2012-08-226	39	DIBBS
4810-01-354-5220	2012-05-151	21	DIBBS
4810-01-354-5220	2009-12-338	25	DIBBS
4810-01-354-5220	2009-11-307	18	DIBBS
4810-01-354-5220	2009-10-296	17	DIBBS
4810-01-354-5220	2009-10-289	19	DIBBS
4810-01-354-5220	2009-10-288	19	DIBBS
4810-01-354-5220	2009-08-216	14	DIBBS
4810-01-354-5220	2009-05-151	16	DIBBS

Cross Reference | NSN 4810-01-354-5220

Part Number	Cage Code	Manufacturer
2HG468	45152	OSHKOSH CORPORATION
7-926-002881	12361	GROVE U.S. L.L.C DBA MANITOWOC CRANE GROUP
DS161CRTD024HD-12T	09990	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC VALVE DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4810-01-354-5220

Compare

Related Products | NSN 4810-01-354-5220

4810-01-354-5221, 4810-01-354-5222, 4810-01-354-5438, 4810-01-354-7132, 4810-01-354-7138

Technical Data | NSN 4810-01-354-5220

Characteristic	Specifications
BODY MATERIAL	STEEL
SPOOL QUANTITY	1
FLOW PATTERN QUANTITY	2
SPOOL POSITION QUANTITY	2
VALVE OPERATION METHOD	SOLENOID
VOLTAGE IN VOLTS AND CURRENT TYPE	24.0 DC
CURRENT RATING IN AMPS	0.8
END CONNECTION QUANTITY	2
CONNECTION TYPE	THREADED INTERNAL BOSS
THREAD SERIES DESIGNATOR	UN
NOMINAL THREAD SIZE	1.313 INCHES
THREAD QUANTITY PER INCH	12
THREAD CLASS	2B

Restrictions/Controls & Freight Information | NSN 4810-01-354-5220

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	128000	PUMPS PWR NOI/WORKING HEADS/PARTS
Less than car load rating
Less than truck load rating	M	85.0
Water commodity Code	594	unknown
Originating Activity Code	AH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4810-01-354-5220

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
