NSN 4810-01-368-8262 XH935LB215028VDC, XH935LB2150-28VDC, 73419AN2NN00N0H111C2
Product Details | DIRECTIONAL CONTROL LINEAR VALVE
4810-01-368-8262 A manually or power operated valve having three or more ports. The direction of the flow through the various ports is controlled by either one or more reciprocating slide(s) or spool(s) with recess areas which mate with ports in an integral or replaceable ported sleeve, or one or more poppet(s). It is designed to change the direction of fluid flow from one valve port to another. An off (no flow) position is not a flow pattern. The valve is designed to actuate various components of a fluid system. A power operated valve may have a manual override. For items which stop, start, or change the flow of fluid, see: VALVE, SOLENOID. Excludes VALVE, PLUG. See also SERVOVALVE, HYDRAULIC; BODY SECTION, WORKING, LINEAR DIRECTIONAL CONTROL VALVE; and VALVE ASSEMBLY.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: XH935LB215028VDC, XH935LB2150-28VDC, 73419AN2NN00N0H111C2, 73419AN2NNOONOH111N7, 4810-01-368-8262, 01-368-8262, 4810013688262, 013688262
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 09 DEC 1992 | 01-368-8262 | 61929 ( VALVE, LINEAR, DIRECTIONAL CONTROL ) |

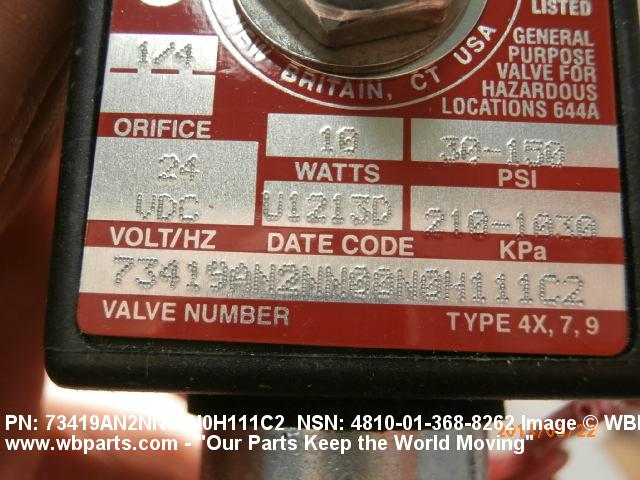

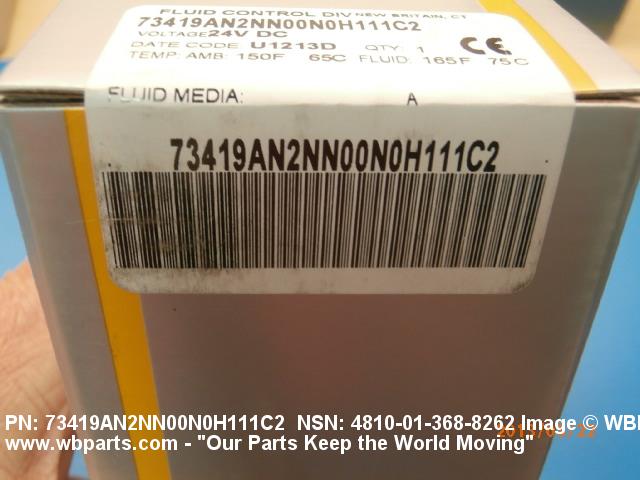

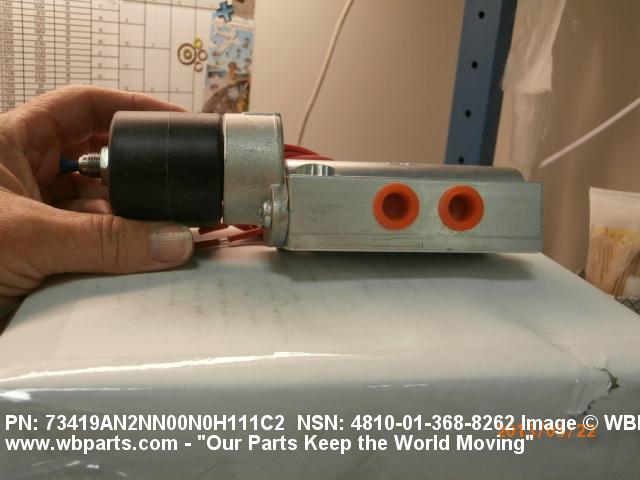

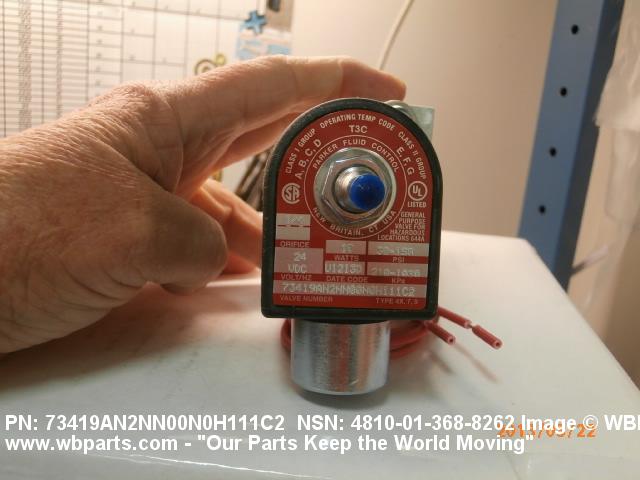

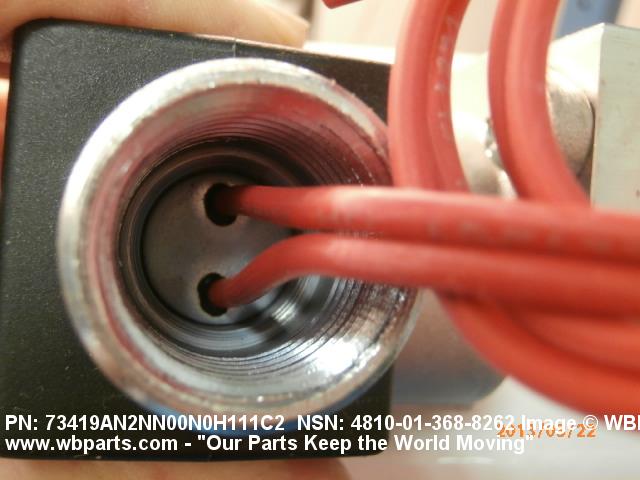

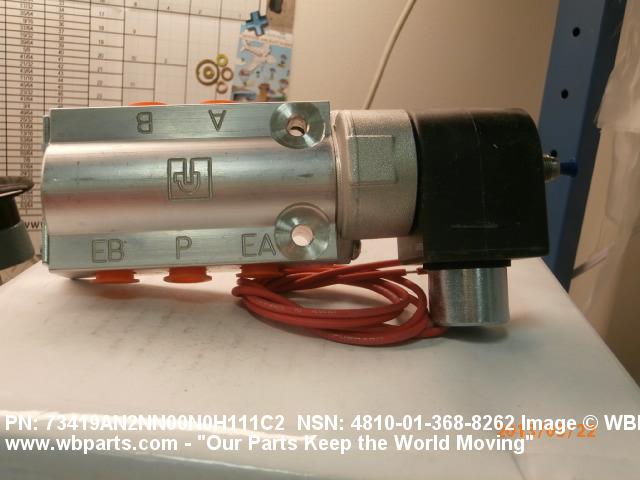

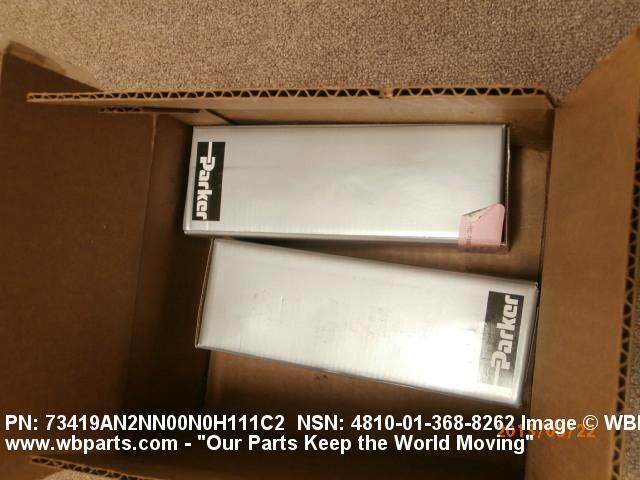

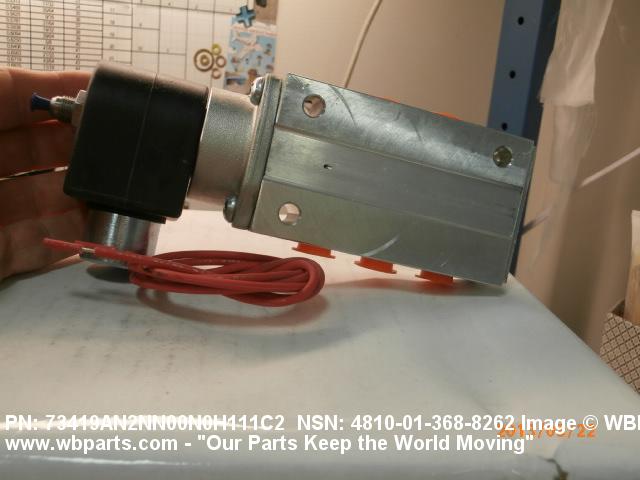

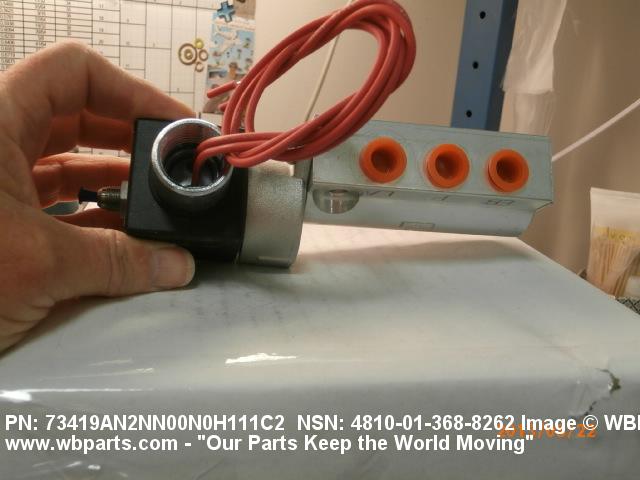

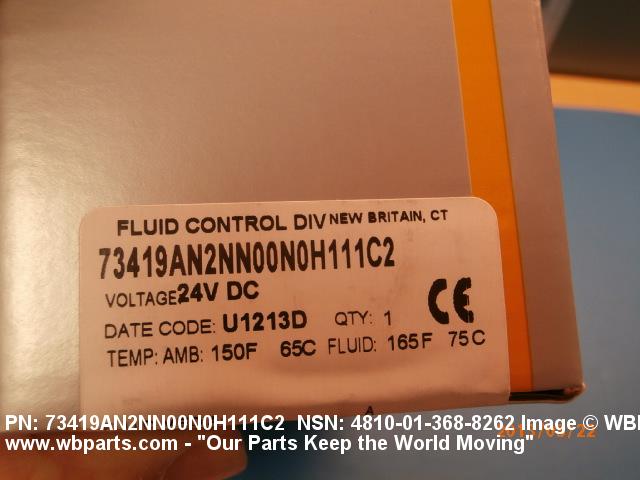

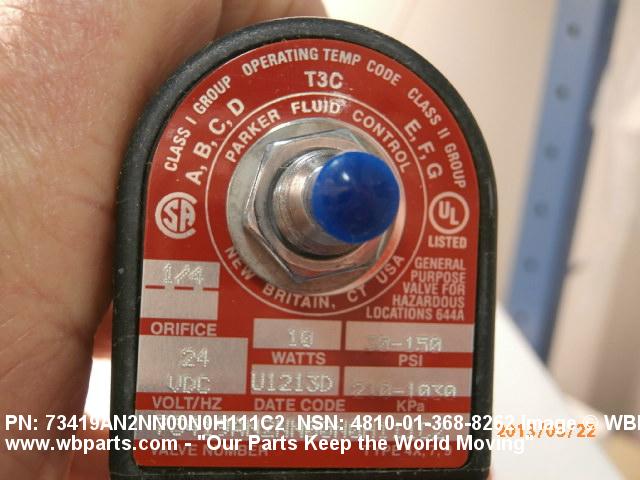

Drawings & Photos | NSN 4810-01-368-8262
Demand History | NSN 4810-01-368-8262
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4810-01-368-8262 | 2020-07-190 | 1 | US |
| 4810-01-368-8262 | 2013-08-213 | 18 | DIBBS |
| 73419AN2NN00N0H111C2 | 2013-03-65 | 2 | United States |
| 4810-01-368-8262 | 2011-10-296 | 1 | DIBBS |
| 4810-01-368-8262 | 2011-05-147 | 2 | DIBBS |
| 4810-01-368-8262 | 2011-05-143 | 1 | DIBBS |
| 4810-01-368-8262 | 2010-09-273 | 3 | DIBBS |
| 4810-01-368-8262 | 2010-08-226 | 3 | DIBBS |
Cross Reference | NSN 4810-01-368-8262
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4810-01-368-8262
Technical Data | NSN 4810-01-368-8262
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM |
| SPOOL QUANTITY | 1 |
| FLOW PATTERN QUANTITY | 4 |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 150.0 POUNDS PER SQUARE INCH AIR |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 28.0 DC |
| CURRENT RATING IN AMPS | 0.4 |
| END CONNECTION QUANTITY | 5 |
| CONNECTION TYPE | THREADED INTERNAL PIPE |
| THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| FEATURES PROVIDED | EXPLOSION PROOF |
| SPECIAL FEATURES | SEALED SPOOL |
| III END ITEM IDENTIFICATION | 4920-01-268-6058 |
Restrictions/Controls & Freight Information | NSN 4810-01-368-8262
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-01-368-8262
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
