NSN 4810-01-527-4455 9379183001, 9379-183-001, 9379183003
Product Details | STOP DIAPHRAGM VALVE
4810-01-527-4455 A valve designed specifically so the diaphragm seals the flow stream from the valve operating mechanism. The flow is controlled by the lifting of the diaphragm from or compressing it against an integral seat. For packless diaphragm valves which utilize a diaphragm as packing and a disk to control the flow, see VALVE, Y.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 9379183001, 9379-183-001, 9379183003, 9379-183-003, 4810-01-527-4455, 01-527-4455, 4810015274455, 015274455
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 02 FEB 2005 | 01-527-4455 | 13619 ( VALVE, DIAPHRAGM, STOP ) |
Drawings & Photos | NSN 4810-01-527-4455
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4810-01-527-4455
Technical Data | NSN 4810-01-527-4455
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC BODY STEEL STEM |
| SURFACE TREATMENT | ZINC AND CHROMATE |

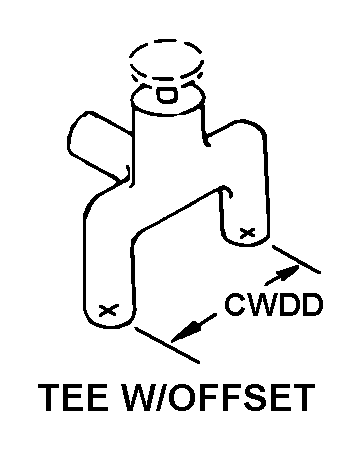

| STYLE DESIGNATOR | A28 TEE W/OFFSET |
| CENTER TO CENTER DISTANCE | 1.300 INCHES |
| MEDIA FOR WHICH DESIGNED | WATER, FRESH SINGLE RESPONSE |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 120.0 AC |
| FREQUENCY IN HERTZ | 50.0 AND 60.0 |
| CONNECTION TYPE | THREADED EXTERNAL HOSE 1ST END UNTHREADED EXTERNAL HOSE 2ND END UNTHREADED EXTERNAL HOSE 3RD END |
| CONNECTION STYLE | G49C GASKET SEAL 1ST END G63 BEADED 2ND END G63 BEADED 3RD END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 0.500 INCHES 2ND END 0.500 INCHES 3RD END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 11.5 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| SPECIAL FEATURES | BODY COLOR, TAN |
| III END ITEM IDENTIFICATION | MODEL WCN18, LARGE CAPACITY WASHER |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | VALVE, WATER, INLET |
Restrictions/Controls & Freight Information | NSN 4810-01-527-4455
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
