NSN 4820-00-050-7670 81088, 00-050-7670, 000507670
Product Details | VALVE SEAT
4820-00-050-7670 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 81088, 4820-00-050-7670, 00-050-7670, 4820000507670, 000507670
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 11 MAY 1967 | 00-050-7670 | 22113 ( SEAT, VALVE ) |
Drawings & Photos | NSN 4820-00-050-7670
Demand History | NSN 4820-00-050-7670
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-050-7670 | 2010-12-337 | 4 | DIBBS |
Cross Reference | NSN 4820-00-050-7670
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 81088 | 81982 | HYDRO-AIRE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-050-7670
Related Products | NSN 4820-00-050-7670
Technical Data | NSN 4820-00-050-7670
| Characteristic | Specifications |
|---|---|

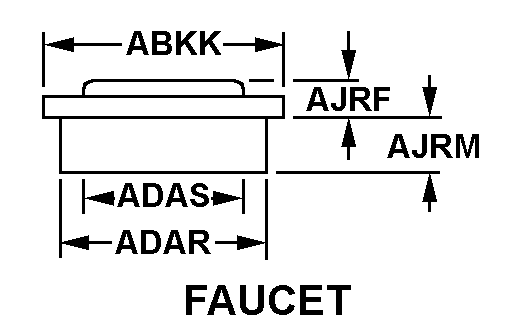

| STYLE DESIGNATOR | A13 FAUCET |
| BODY OUTSIDE DIAMETER | 0.328 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.135 INCHES MINIMUM AND 0.137 INCHES MAXIMUM |
| FLANGE SEAT TO DISK END HEIGHT | 0.050 INCHES MINIMUM AND 0.060 INCHES MAXIMUM |
| UNDER FLANGE HEIGHT | 0.225 INCHES MINIMUM AND 0.238 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM BODY |
| SEATING SURFACE SHAPE | FLAT |
| SEAL ACCOMMODATION TYPE | GROOVED |
| SPECIAL FEATURES | TWO 0.125 IN. DIA HOLES IN FLANGE |
| III FSC APPLICATION DATA | MANIFOLD,HYDRAULIC SYSTEM ACCESSORIES,ACFT |
| MANUFACTURERS CODE | 81982 |
| DESIGN CONTROL REFERENCE | 81088 |
Restrictions/Controls & Freight Information | NSN 4820-00-050-7670
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-050-7670
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
