NSN 4820-00-064-7346 1430RA1, 00-064-7346, 000647346
Product Details | BALL VALVE
4820-00-064-7346 A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 1430RA1, 4820-00-064-7346, 00-064-7346, 4820000647346, 000647346
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 00-064-7346 | 20962 ( VALVE, BALL ) |
Drawings & Photos | NSN 4820-00-064-7346
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-064-7346
Technical Data | NSN 4820-00-064-7346
| Characteristic | Specifications |
|---|---|

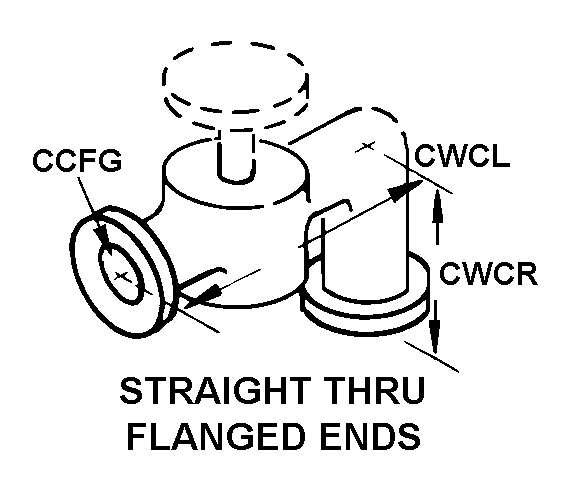

| STYLE DESIGNATOR | A20A STRAIGHT THRU FLANGED ENDS |
| FIRST CONNECTION FACE TO CENTERLINE DISTANCE | 23.500 INCHES |
| SECOND CONNECTION FACE TO CENTERLINE DISTANCE | 16.688 INCHES |
| VALVE SIZE | 8.000 INCHES |
| MEDIA FOR WHICH DESIGNED | WATER, SALT SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 700.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | FLANGE 1ST END FLANGE 2ND END |
| FLANGE SHAPE | ROUND WITH HOLES 1ST END ROUND 2ND END |
| NOMINAL OUTSIDE DIAMETER | 13.125 INCHES 1ST END 15.500 INCHES 2ND END |
| NOMINAL THICKNESS | 1.750 INCHES 1ST END 2.000 INCHES 2ND END |
| BOLT HOLE QUANTITY | 16 1ST END |
| BOLT HOLE NOMINAL DIAMETER | 0.688 INCHES 1ST END |
| BOLT CIRCLE NOMINAL DIAMETER | 11.625 INCHES 1ST END |
| FLANGE FACE DESIGN | PLAIN 1ST END PLAIN 2ND END |
| MANUFACTURERS CODE | 78062 |
| DESIGN CONTROL REFERENCE | 1430RA1 |
Restrictions/Controls & Freight Information | NSN 4820-00-064-7346
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
