NSN 4820-00-070-7874 F504032, F5040-32 , 504051
Product Details | CHECK VALVE
4820-00-070-7874 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: F504032, F5040-32 , 504051, 5040-5-1, 4820-00-070-7874, 00-070-7874, 4820000707874, 000707874
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-070-7874 | 05487 ( VALVE, CHECK ) |

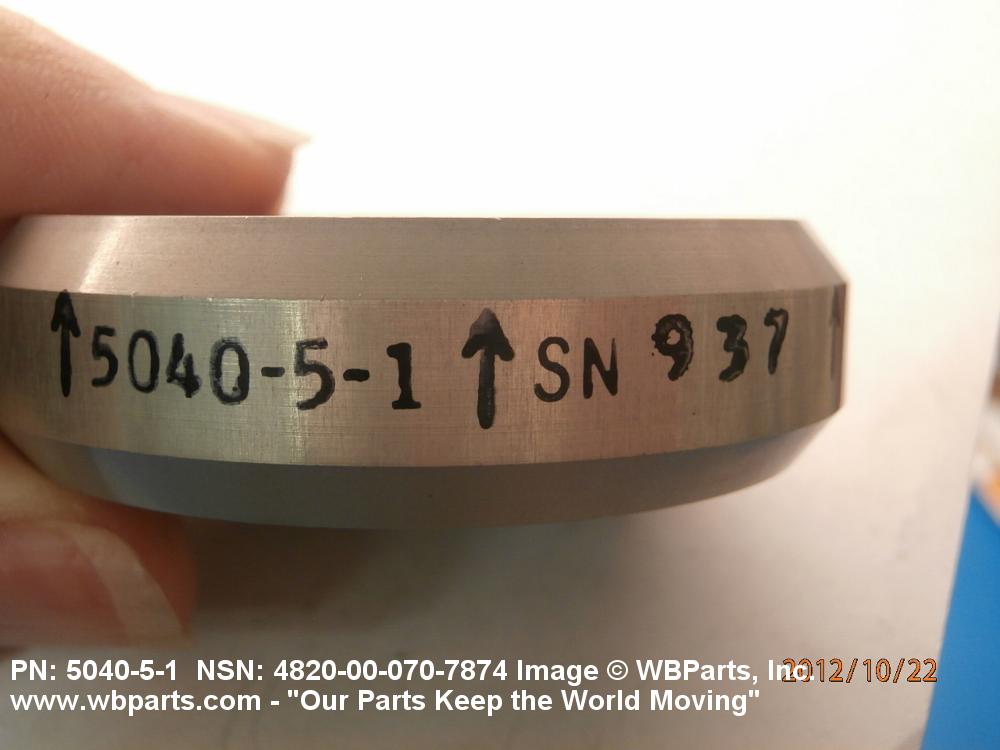

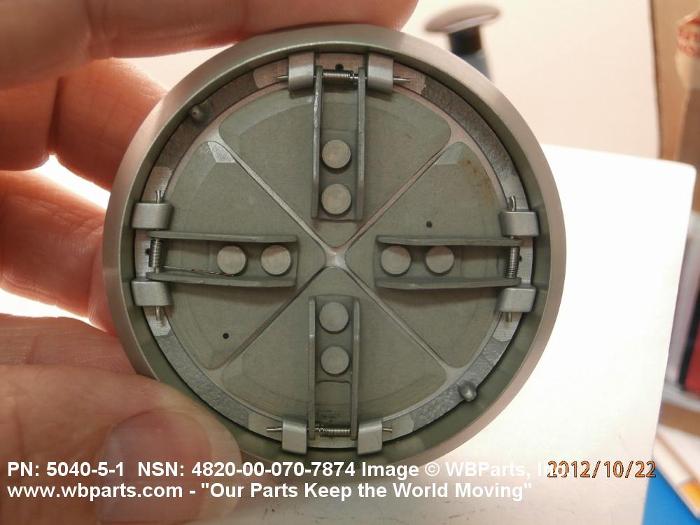

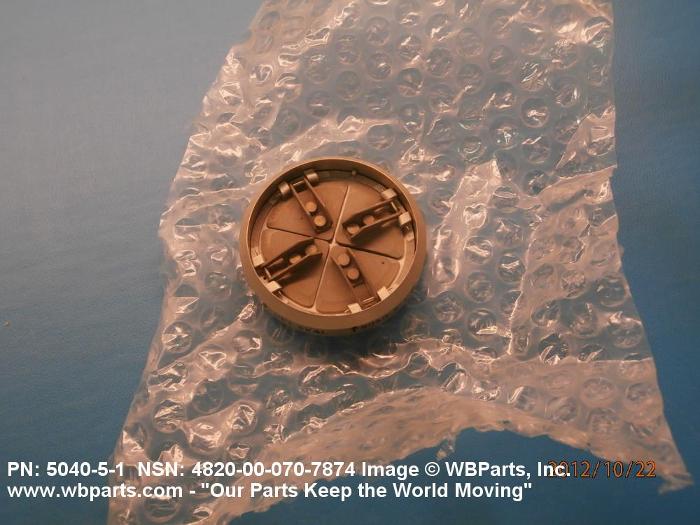

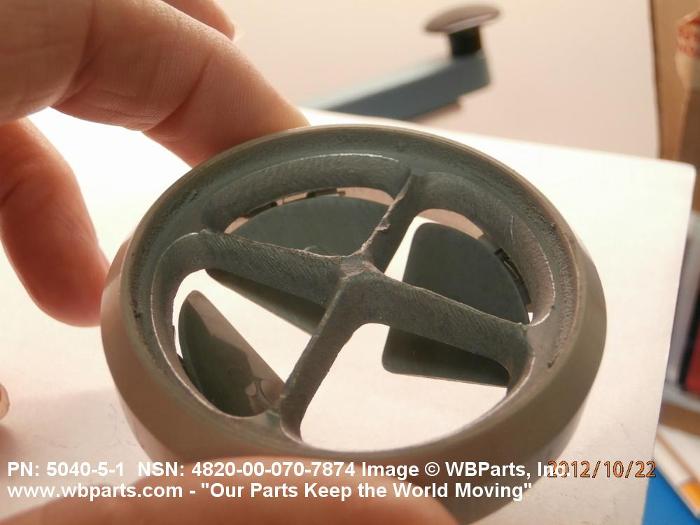

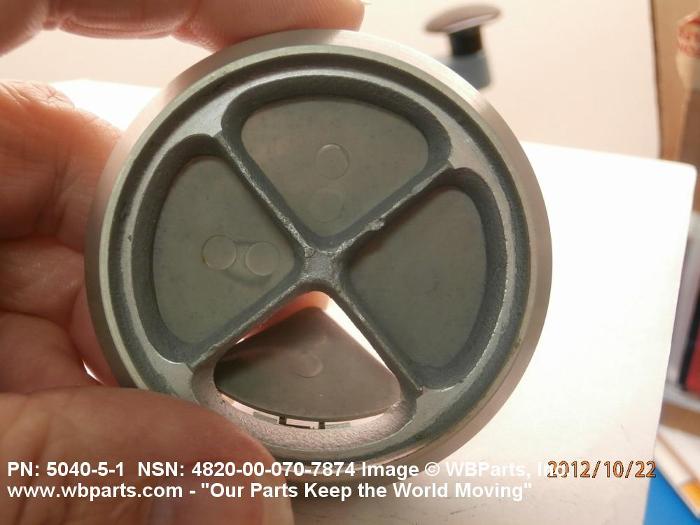

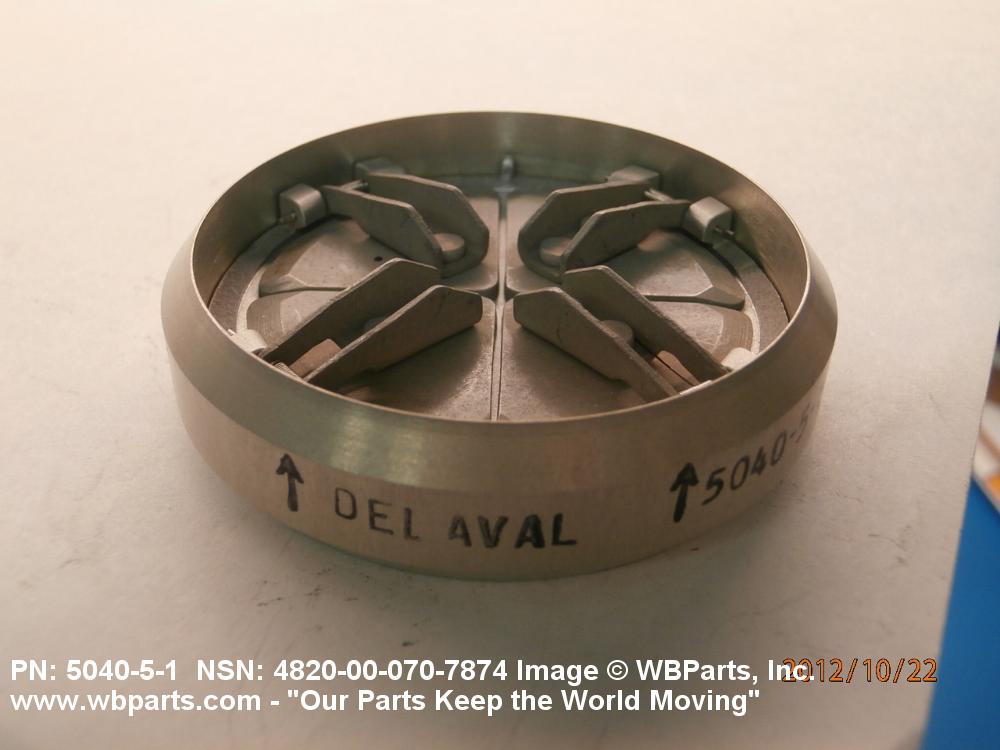

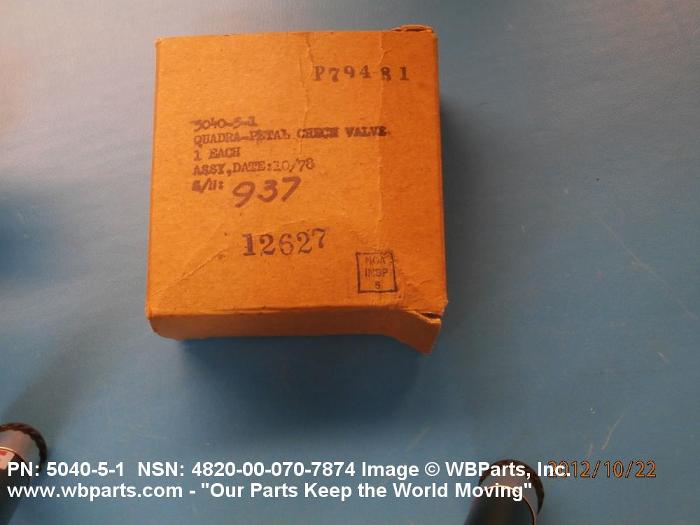

Drawings & Photos | NSN 4820-00-070-7874
Demand History | NSN 4820-00-070-7874
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-070-7874 | 2012-10-285 | 1 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-070-7874
Technical Data | NSN 4820-00-070-7874
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY |
| FLOW CONTROL DEVICE | DISK |
| VALVE OPERATION METHOD | AUTOMATIC |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
Restrictions/Controls & Freight Information | NSN 4820-00-070-7874
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
