NSN 4820-00-075-2380 40300134, 403-00134, 46-2020-018
Product Details | CHECK VALVE
4820-00-075-2380 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: 40300134, 403-00134, 46-2020-018, 91761854, 9176185-4, 4820-00-075-2380, 00-075-2380, 4820000752380, 000752380, 462020018
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-075-2380 | 05487 ( VALVE, CHECK ) |
Drawings & Photos | NSN 4820-00-075-2380
Demand History | NSN 4820-00-075-2380
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-075-2380 | 2016-02-32 | 3 | DIBBS |
| 4820-00-075-2380 | 2015-09-258 | 2 | DIBBS |
| 4820-00-075-2380 | 2015-02-50 | 2 | DIBBS |
| 4820-00-075-2380 | 2015-02-50 | 2 | DIBBS |
| 4820-00-075-2380 | 2014-06-174 | 3 | DIBBS |
| 4820-00-075-2380 | 2013-10-283 | 2 | DIBBS |
| 91761854 | 2013-04-119 | 10 | Malaysia |
| 4820-00-075-2380 | 2013-04-92 | 1 | DIBBS |
| 91761854 | 2011-07-184 | 2 | Malaysia |
| 91761854 | 2011-05-151 | 2 | China |
| 4820-00-075-2380 | 2011-04-102 | 2 | DIBBS |
| 4820-00-075-2380 | 2011-04-101 | 1 | DIBBS |
| 4820-00-075-2380 | 2010-08-228 | 11 | DIBBS |
| 4820-00-075-2380 | 2010-05-145 | 2 | DIBBS |
| 4820-00-075-2380 | 2009-03-71 | 2 | DIBBS |
Cross Reference | NSN 4820-00-075-2380
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 403-00134 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 403-00134 | 79470 | DANA CORP WEATHERHEAD DIV |
| 46-2020-018 | 1S0M4 | HONEYWELL ENGINES AND SYSTEMS |
| 46-2020-018 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| 9176185-4 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-075-2380
Related Products | NSN 4820-00-075-2380
Technical Data | NSN 4820-00-075-2380
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE |
| STYLE DESIGNATOR | A6A STRAIGHT THRU FLANGED ENDS |
| VALVE SIZE | 0.750 INCHES |
| FACE TO FACE DISTANCE | 3.000 INCHES |
| FLOW CONTROL DEVICE | POPPET |
| MEDIA FOR WHICH DESIGNED | ETHYLENE GLYCOL SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 100.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 500.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED INTERNAL TUBE ALL ENDS |

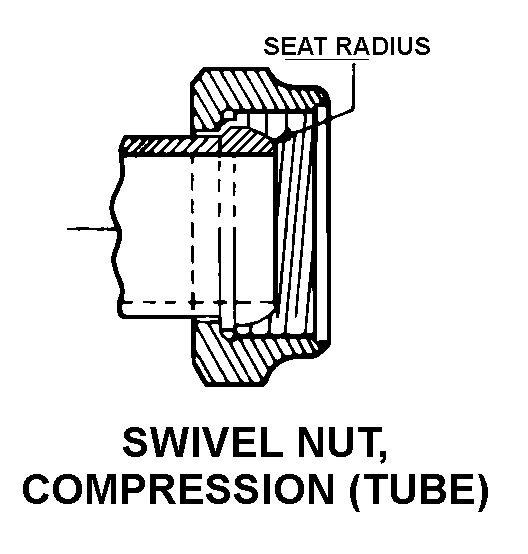

| CONNECTION STYLE | B6 SWIVEL NUT, COMPRESSION ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.750 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 16 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| MOUNTING POSITION | HORIZONTAL |
| MOUNTING FACILITY | THREADED FASTENER |
| (NON-CORE DATA) SEAT NOMINAL RADIUS | 0.370 INCHES |
| MANUFACTURERS CODE | 18876 |
| MFR SOURCE CONTROLLING REFERENCE | 9176185-4 |
Restrictions/Controls & Freight Information | NSN 4820-00-075-2380
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-075-2380
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
