NSN 4820-00-095-0223 113509, 11-350-9, 113509M4
Product Details | PLUG VALVE
4820-00-095-0223 A valve designed to control the flow of a fluid by the rotation of a ported plug or plug sector within a suitable ported seat. The plug requires lubrication for ease of operation or contains a bonded composition seal(s). See also VALVE, SEATLESS and COCK, PLUG.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 113509, 11-350-9, 113509M4, 11-350-9M4, 113509M4N, 113509MA, 11-350-9MA, 4820-00-095-0223, 00-095-0223, 11-350-9M4N, 4820000950223, 000950223
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-095-0223 | 05490 ( VALVE, PLUG ) |
Drawings & Photos | NSN 4820-00-095-0223
Cross Reference | NSN 4820-00-095-0223
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11-350-9 | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 11-350-9 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 11-350-9M4 | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 11-350-9M4 | 86768 | TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC |
| 11-350-9M4 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 11-350-9M4N | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 11-350-9M4N | 86768 | TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC |
| 11-350-9M4N | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 11-350-9MA | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 11-350-9MA | 86768 | TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC |
| 11-350-9MA | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-095-0223
Technical Data | NSN 4820-00-095-0223
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY ALUMINUM ALLOY SEAT ALUMINUM ALLOY STEM |

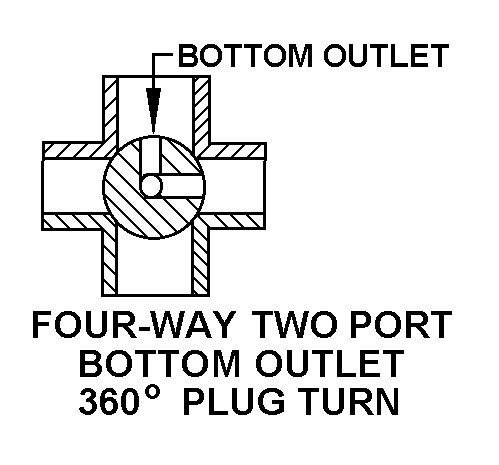

| FLOW STYLE | F29 FOUR-WAY TWO PORT BOTTOM OUTLET 360 DEGREE PLUG TURN |
