NSN 4820-00-121-9660 5143815, 00-121-9660, 001219660
Product Details | SELECTOR ROTARY VALVE
4820-00-121-9660 A manually or power operated valve designed to control the flow of a fluid by the rotation of a ported or curved rotor. A spring, ball, or cam detent may be included to locate or hold position. The item may be panel or subplate mounted, or be an inline design. Excludes VALVE, PLUG. See also VALVE, LINEAR, DIRECTIONAL CONTROL.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 5143815, 4820-00-121-9660, 00-121-9660, 4820001219660, 001219660
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-121-9660 | 45485 ( VALVE, ROTARY, SELECTOR ) |

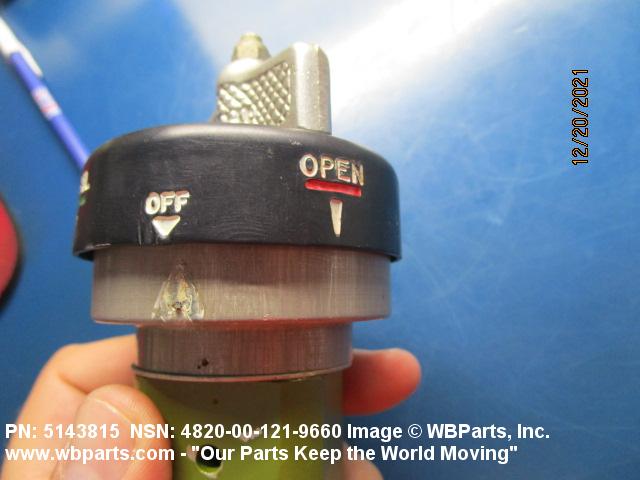

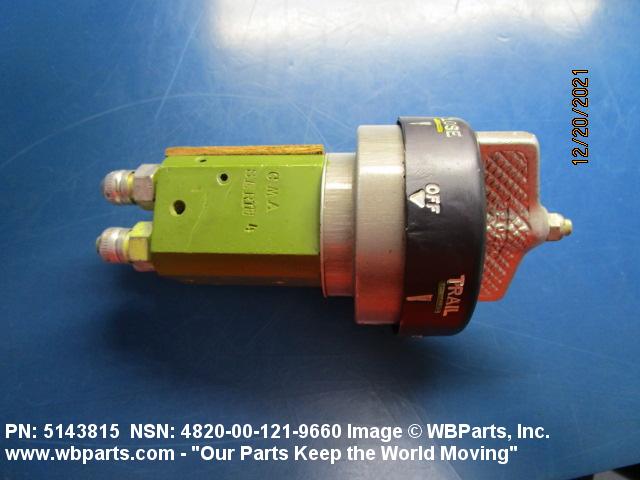

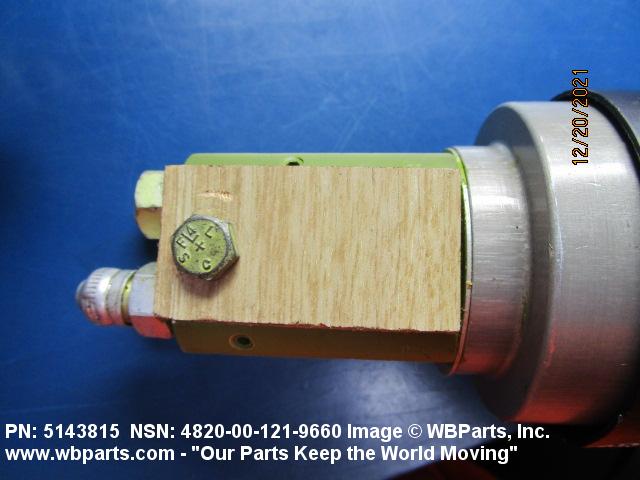

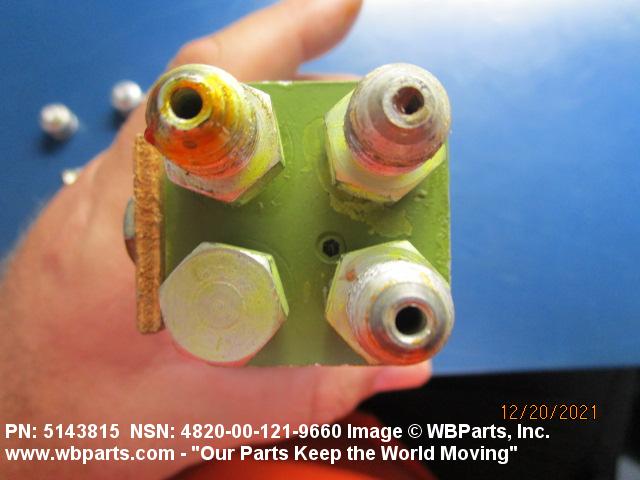

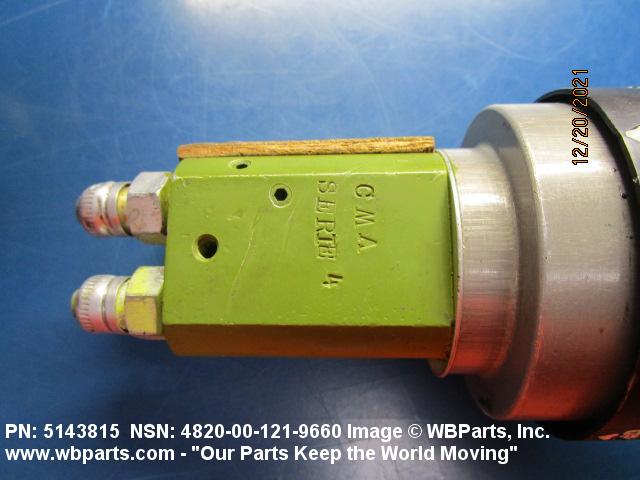

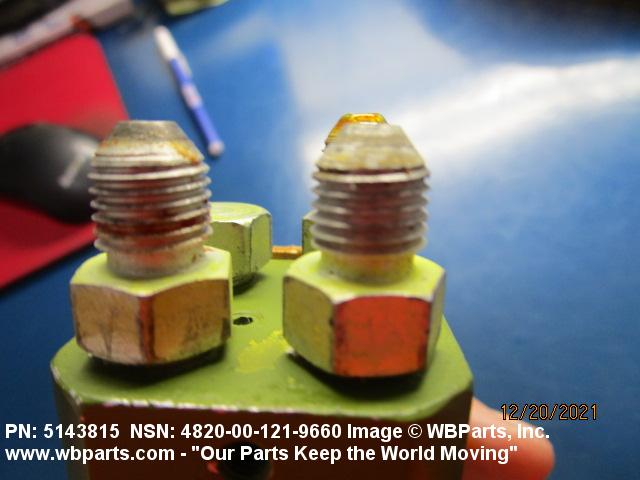

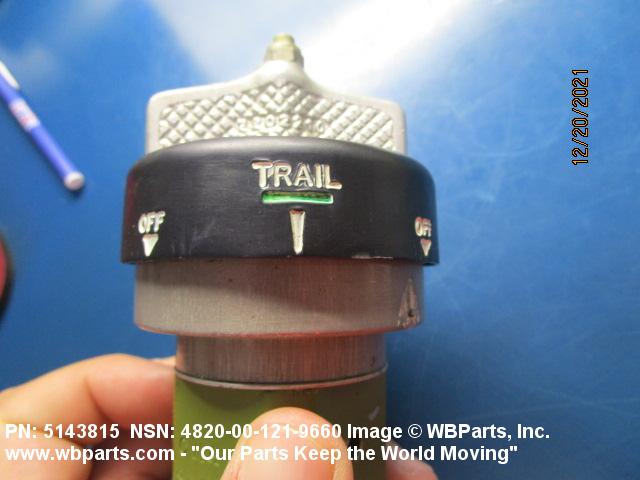

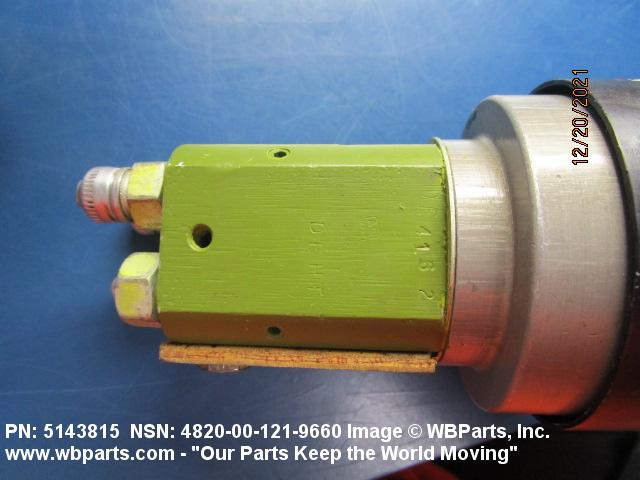

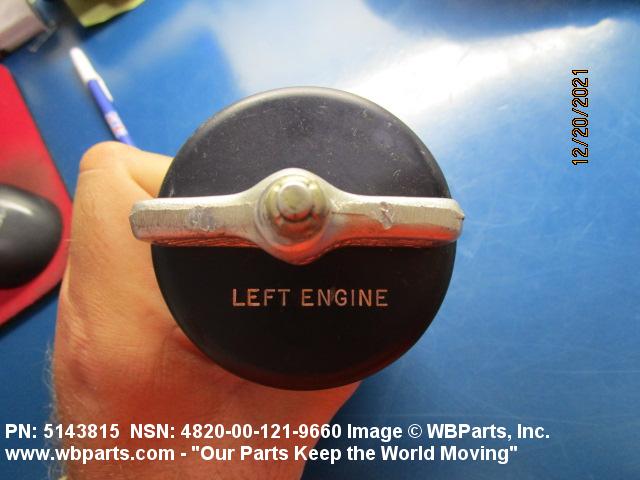

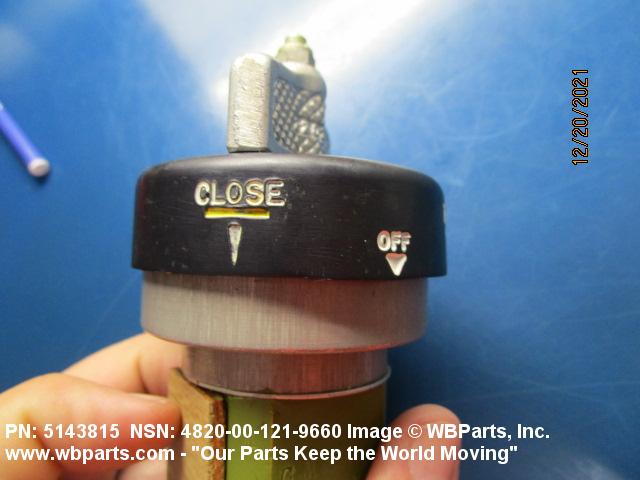

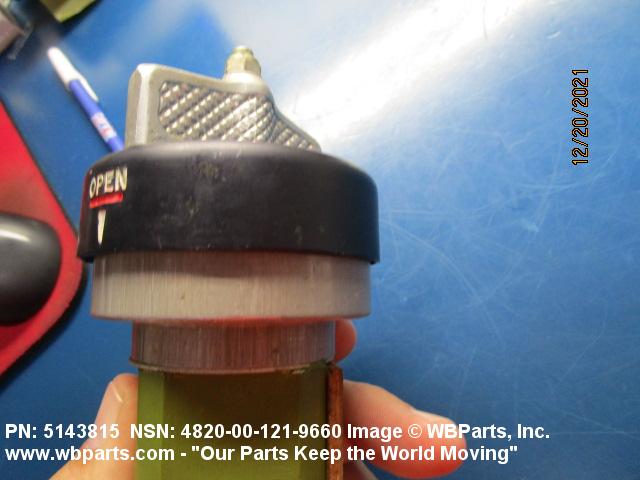

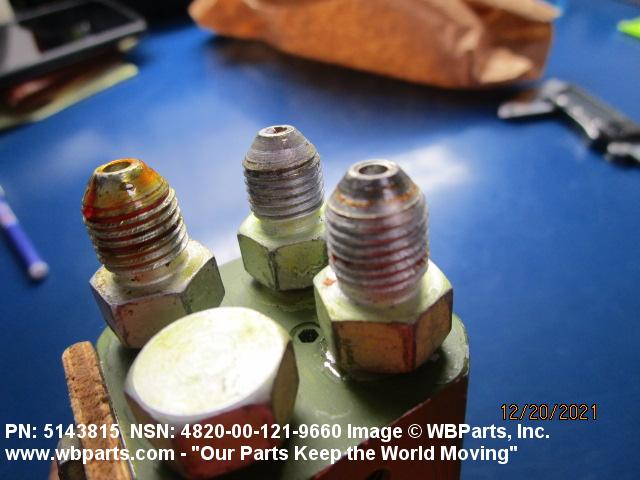

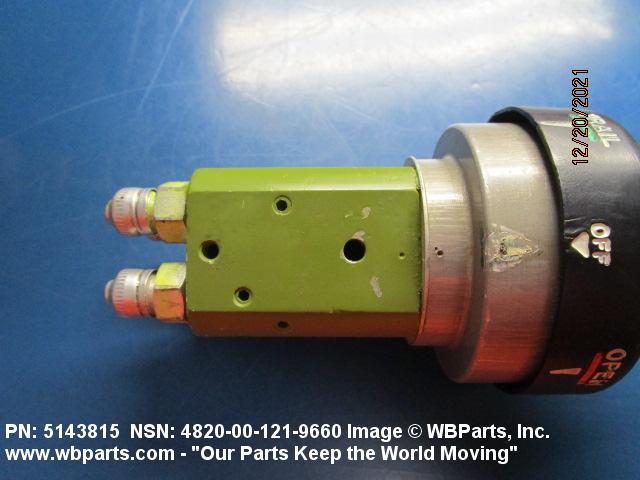

Drawings & Photos | NSN 4820-00-121-9660
Demand History | NSN 4820-00-121-9660
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5143815 | 2021-12-340 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-121-9660
Technical Data | NSN 4820-00-121-9660
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | USED ON COWLING FLAP,LH;PART OF VALVE AND BRACKET ASSEMBLY,COWLING FLAP ON MCDONNELL DOUGLAS CORP MODEL DC-3 AIRPLANE |
| III END ITEM IDENTIFICATION | ACFT,TYPE C-47 |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 5143815 |
Restrictions/Controls & Freight Information | NSN 4820-00-121-9660
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-121-9660
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | C | 1857X3010:Procurement Other than Air Force |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | VU | Vendor to user-of-supply concept. |
| Materiel Management Aggregation Code | XV | SX:FMS UNIQUE/OC-ALC |
| Source of Supply | F8U | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | P | RESTRICTED REQUISITION - SECURITY ASSISTANCE PROGRAM (SAP) 1. Indicates item is stocked or acquired only for SAP (replaces Military Assistance Program (MAP)) requirements, or 2. Indicates item is nonstocked and materiel is ordered from the contractor for shipment directly to the foreign government. 3. Base, post, camp, or station will not requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
