NSN 4820-00-126-5114 NFES 0212 , NFES0212, 5100-383-1.5 9H
Product Details | FOOT VALVE
4820-00-126-5114 A valve used on the free end of a suction line permitting flow in only one direction. It is always equipped with a strainer at the inlet end. See also VALVE, CHECK.
Part Alternates: NFES 0212 , NFES0212, 5100-383-1.5 9H, 5100383159H, 5A202, 0212, 4820-00-126-5114, 00-126-5114, 4820001265114, 001265114
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 MAR 1975 | 00-126-5114 | 13762 ( VALVE, FOOT ) |
Drawings & Photos | NSN 4820-00-126-5114
Demand History | NSN 4820-00-126-5114
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-126-5114 | 2019-04-115 | 1 | DIBBS-RFPs |
| 4820-00-126-5114 | 2016-02-36 | 1 | DIBBS-RFPs |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-126-5114
Technical Data | NSN 4820-00-126-5114
| Characteristic | Specifications |
|---|---|
| BODY STYLE | B1 SINGLE CONNECTION, STRAIGHT FLOW |
| BODY MATERIAL | ALUMINUM OR BRASS |
| FLOW CONTROL DEVICE | POPPET |
| FLOW CONTROL DEVICE MATERIAL | BRASS OR STEEL, CORROSION RESISTING OR PLASTIC |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |

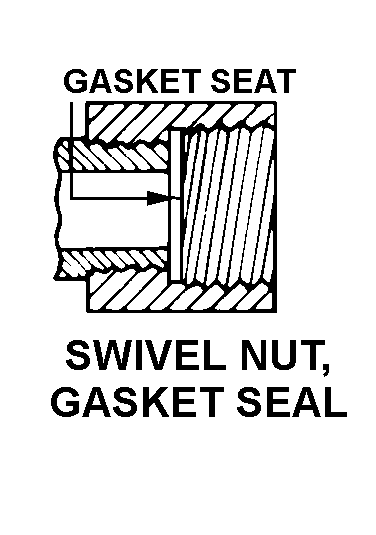

| FIRST END STYLE DESIGNATOR | G5 SWIVEL NUT, GASKET SEAL |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 1.500 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| MEDIA FOR WHICH DESIGNED | WATER, FRESH |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 4820-00-126-5114
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | 75 | GSA, FSS/FCSC Washington, DC 20406 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
