NSN 4820-00-135-0367 13021211, 130212-1-1, 00-135-0367
Product Details | PRESSURE AND TEMPERATURE RELIEF VALVE
4820-00-135-0367 A valve designed to release under excessive pressure and/or excessive temperature by opening at a predetermined pressure and/or temperature. Thermostatically operated valves close when the pressure is relieved or the temperature is reduced. Fusible plug valves require replacement of the plug. See also VALVE, SAFETY RELIEF and VALVE, REGULATING. TEMPERATURE.
Part Alternates: 13021211, 130212-1-1, 4820-00-135-0367, 00-135-0367, 4820001350367, 001350367
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 17 JUL 1968 | 00-135-0367 | 16996 ( VALVE, RELIEF, PRESSURE AND TEMPERATURE ) |
Drawings & Photos | NSN 4820-00-135-0367
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-135-0367
Technical Data | NSN 4820-00-135-0367
| Characteristic | Specifications |
|---|---|

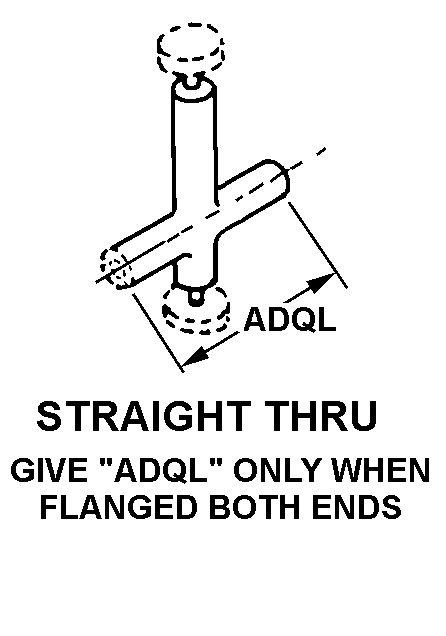

| BODY STYLE | A44 STRAIGHT THRU |
| BODY MATERIAL | ALUMINUM ALLOY, QQ-A-225/8, ALLOY 6061, T6 |
| OUTSIDE SURFACE TREATMENT | ANODIZED |
| SEAT MATERIAL | ALUMINUM ALLOY, QQ-A-225/8, ALLOY 6061, T6 |
| FLOW CONTROL DEVICE | POPPET |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL BOSS |
| FIRST END STYLE DESIGNATOR | G6 GASKET SEAL |
| FIRST END THREAD CLASS | 3B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP ADJUSTABILITY | ADJUSTABLE |
| MEDIA FOR WHICH DESIGNED | AIR |
| TEMP RATING | -65.0 DEG FAHRENHEIT 270.0 DEG FAHRENHEIT |
| VALVE DISCHARGE FLOW RATE | NOT RATED |
| TEMP CONTROL DEVICE TYPE | FUSIBLE |
| MANUFACTURERS CODE | 64547 |
| DESIGN CONTROL REFERENCE | 130212-1-1 |
Restrictions/Controls & Freight Information | NSN 4820-00-135-0367
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
