NSN 4820-00-139-3963 1468, AP1, AP-1
Product Details | SADDLE VALVE
4820-00-139-3963 A valve with an outlet end connection, straight thru or at an angle. The flow of liquid or gases may be controlled by the action of stem which lifts the disks perpendicularly off the center axis of its seat or by rotation of a suitable ported seat. This valve has a connection facility which is saddled over a line and bolted, may be line drilled or line self piercing.
Part Alternates: 1468, AP1, AP-1, 4820-00-139-3963, 00-139-3963, 4820001393963, 001393963
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 18-AUG-71 | 00-139-3963 | 35934 ( VALVE, SADDLE ) |
Drawings & Photos | NSN 4820-00-139-3963
Demand History | NSN 4820-00-139-3963
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-139-3963 | 2014-07-188 | 5 | DIBBS |
| 4820-00-139-3963 | 2014-07-188 | 10 | DIBBS |
| 4820-00-139-3963 | 2014-07-188 | 13 | DIBBS |
| 4820-00-139-3963 | 2014-05-140 | 15 | DIBBS |
| 4820-00-139-3963 | 2013-09-251 | 4 | DIBBS |
| 4820-00-139-3963 | 2009-07-207 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-139-3963
Technical Data | NSN 4820-00-139-3963
| Characteristic | Specifications |
|---|---|
| MATERIAL | ZINC ALLOY BODY |

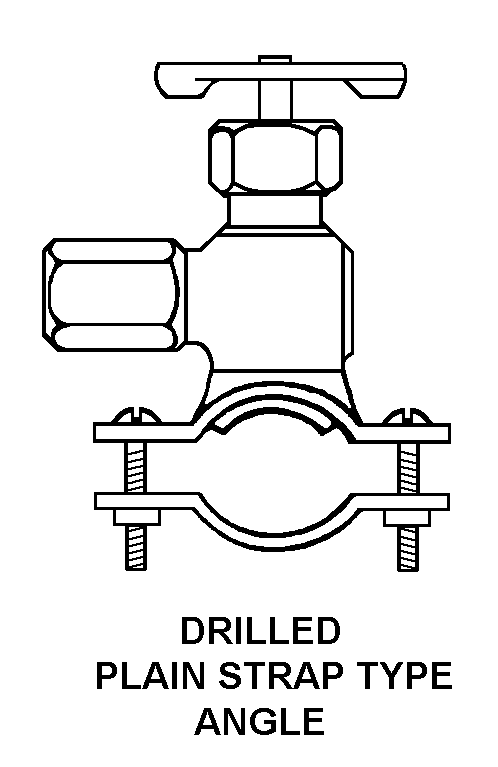

| STYLE DESIGNATOR | E3 DRILLED PLAIN STRAP TYPE ANGLE |
| FLOW CONTROL DEVICE | NEEDLE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | G46A PLAIN 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END |
| THREAD CLASS | 3A 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
Restrictions/Controls & Freight Information | NSN 4820-00-139-3963
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
