NSN 4820-00-161-7729 074914, 6464, 7491
Product Details | VALVE SEAT
4820-00-161-7729 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 074914, 6464, 7491, 4820-00-161-7729, 00-161-7729, 4820001617729, 001617729
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 24 OCT 1971 | 00-161-7729 | 22113 ( SEAT, VALVE ) |
Drawings & Photos | NSN 4820-00-161-7729
Demand History | NSN 4820-00-161-7729
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6464 | 2017-09-270 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-161-7729
Technical Data | NSN 4820-00-161-7729
| Characteristic | Specifications |
|---|---|

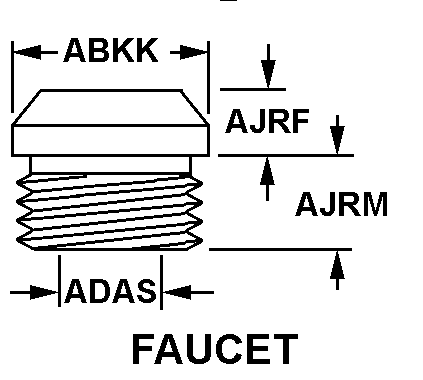

| STYLE DESIGNATOR | A11 FAUCET |
| FLANGE DIAMETER | 0.562 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.250 INCHES NOMINAL |
| FLANGE SEAT TO DISK END HEIGHT | 0.156 INCHES NOMINAL |
| UNDER FLANGE HEIGHT | 0.188 INCHES NOMINAL |
| MATERIAL | PLASTIC OVERALL |
| HARDNESS RATING | NOT RATED |
| SEATING SURFACE SHAPE | ANGULAR |
| SEAT ANGLE IN DEG | 30.000 NOMINAL |
| THREAD SERIES DESIGNATOR | UNF SINGLE THREADED PORTION |
| NOMINAL THREAD SIZE | 0.438 INCHES SINGLE THREADED PORTION |
| THREAD CLASS | 2A SINGLE THREADED PORTION |
| THREAD LENGTH | 0.125 INCHES NOMINAL SINGLE THREADED PORTION |
Restrictions/Controls & Freight Information | NSN 4820-00-161-7729
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-161-7729
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
