NSN 4820-00-191-9201 11652631, 00-191-9201, 001919201
Product Details | PRESSURE AND TEMPERATURE RELIEF VALVE
4820-00-191-9201 A valve designed to release under excessive pressure and/or excessive temperature by opening at a predetermined pressure and/or temperature. Thermostatically operated valves close when the pressure is relieved or the temperature is reduced. Fusible plug valves require replacement of the plug. See also VALVE, SAFETY RELIEF and VALVE, REGULATING. TEMPERATURE.
Part Alternates: 11652631, 4820-00-191-9201, 00-191-9201, 4820001919201, 001919201
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 22 JAN 1969 | 00-191-9201 | 16996 ( VALVE, RELIEF, PRESSURE AND TEMPERATURE ) |
Drawings & Photos | NSN 4820-00-191-9201
Cross Reference | NSN 4820-00-191-9201
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11652631 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-191-9201
Related Products | NSN 4820-00-191-9201
Technical Data | NSN 4820-00-191-9201
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A21 TEE ANGLE |
| CENTER TO CENTER DISTANCE | 1.125 INCHES NOMINAL |
| BODY MATERIAL | ALUMINUM ALLOY, QQ-A-367, COMP 6061, T6 |
| OUTSIDE SURFACE TREATMENT | ENAMEL |
| FLOW CONTROL DEVICE | NEEDLE AND PISTON, FREE TYPE |
| END CONNECTION QUANTITY | 3 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | M1 PLAIN |
| FIRST END FLANGE SHAPE STYLE | 4 RECTANGULAR |
| FIRST END BOLT HOLE QUANTITY | 2 |
| FIRST END FLANGE THICKNESS | 0.880 INCHES NOMINAL |
| FIRST END FLANGE LENGTH | 2.102 INCHES NOMINAL |
| FIRST END FLANGE WIDTH | 1.880 INCHES NOMINAL |
| FIRST END BOLT HOLE DIAMETER | 0.400 INCHES NOMINAL |
| FIRST END CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG WIDTH | 1.000 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | RAISED FACE FLANGE |
| SECOND END STYLE DESIGNATOR | M5 RAISED |
| SECOND END RAISED FACE HEIGHT | 0.060 INCHES NOMINAL |
| SECOND END RAISED FACE DIAMETER | 0.600 INCHES NOMINAL |

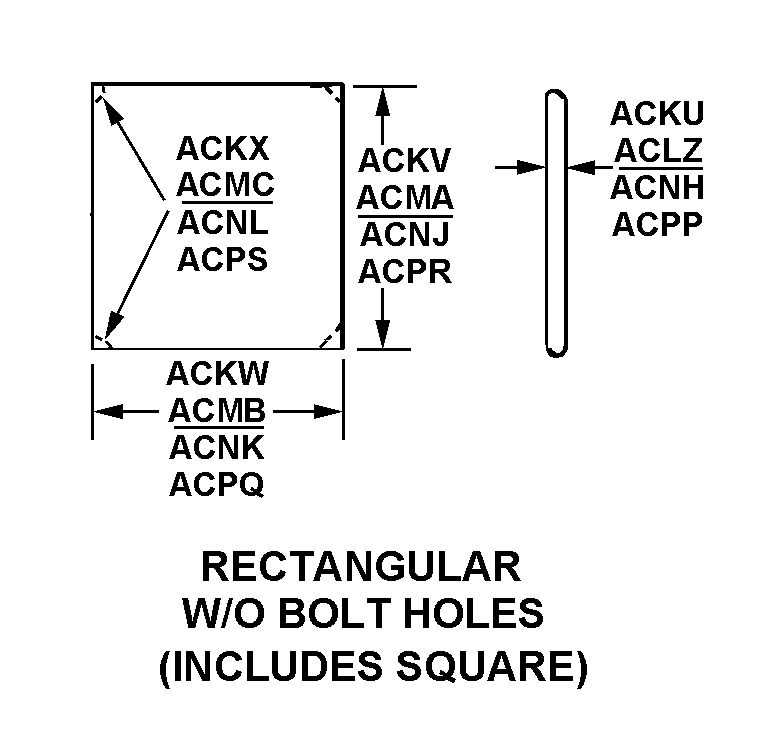

| SECOND END FLANGE SHAPE STYLE | 4A RECTANGULAR |
| SECOND END FLANGE THICKNESS | 2.740 INCHES NOMINAL |
| SECOND END FLANGE LENGTH | 2.102 INCHES NOMINAL |
| SECOND END FLANGE WIDTH | 1.880 INCHES NOMINAL |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | NOT IDENTICAL WITH FIRST OR SECOND END |
| THIRD END CONNECTION TYPE | PLAIN FACE FLANGE |
| THIRD END STYLE DESIGNATOR | M1 PLAIN |
| THIRD END FLANGE SHAPE STYLE | 4A RECTANGULAR |
| THIRD END FLANGE THICKNESS | 2.740 INCHES NOMINAL |
| THIRD END FLANGE LENGTH | 2.102 INCHES NOMINAL |
| THIRD END FLANGE WIDTH | 1.880 INCHES NOMINAL |
| TEMP ADJUSTABILITY | NOT ADJUSTABLE |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID, PHOSPHATE-ESTER BASE |
| TEMP RATING | NOT RATED |
| VALVE DISCHARGE FLOW RATE | 0.4 GALLONS PER MINUTE |
| TEMP CONTROL DEVICE TYPE | THERMOSTATIC |
| ADJUSTABLE PRESSURE RANGE | 850.0 TO 1000.0 POUNDS PER SQUARE INCH |
| FURNISHED ITEMS | MANUAL OPERATING DEVICE |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 11652631 |
Restrictions/Controls & Freight Information | NSN 4820-00-191-9201
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-191-9201
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | M | Ammunition weapons, and tracked combat vehicles weapons, special weapons, chemical and fire control materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | J | Tanks |
| Weapons Systems/End Item or Homogeneous Group | JQ | Armored/Reconnaissance/Airborne Assault Vehicles, 152mm M551 with Trainer M40 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
