Product Details | EXPANSION VALVE
4820-00-256-6677 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Part Alternates: F23046, TCLN00FA10D, TCLN100FA2D, TCLN100FA2D3/8X1/20DF, TCLN100FA2D38X120DF, TCLN1FW2D, TCLN1FWODFEE3/8X1/20DFANG, TCLN1FWODFEE38X120DFANG, 4820-00-256-6677, 00-256-6677, 4820002566677, 002566677
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-256-6677 | 05493 ( VALVE, EXPANSION ) |
Drawings & Photos | NSN 4820-00-256-6677
Cross Reference | NSN 4820-00-256-6677
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F23046 | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
| TCLN00FA10D | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
| TCLN100FA2D | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
| TCLN100FA2D3/8X1/20DF | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
| TCLN1FW2D | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
| TCLN1FWODFEE3/8X1/20DFANG | 2B475 | PROGRESS SUPPLY, INC. |
| TCLN1FWODFEE3/8X1/20DFANG | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-256-6677
Related Products | NSN 4820-00-256-6677
Technical Data | NSN 4820-00-256-6677
| Characteristic | Specifications |
|---|---|
| BODY STYLE | C3 ANGLE |
| BODY MATERIAL | BRASS |
| SEAT MATERIAL | BRASS |
| FLOW CONTROL DEVICE | DISK, TOP GUIDED |
| FLOW CONTROL DEVICE MATERIAL | STEEL |
| STEM MATERIAL | ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | BUTT WELD TUBE |

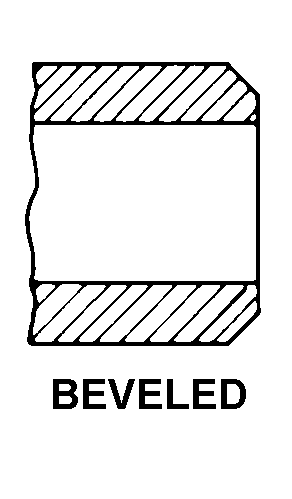

| FIRST END STYLE DESIGNATOR | L3 BEVELED |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | BUTT WELD TUBE |
| SECOND END STYLE DESIGNATOR | L3 BEVELED |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.625 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 12 |
| TEMP RATING | 250.0 DEG FAHRENHEIT |
| VALVE EXPANSION CONTROL TYPE | THERMOSTATIC |
| VALVE EVAPORATOR TEMP RANGE DESIGNATION | LOW |
| VALVE PRESSURE LIMITING DEVICE | NOT INCLUDED |
| REFRIGERATION CAPACITY IN BTU PER HOUR | 15.6 |
| BULB MEDIA TYPE | REFRIGERANT 12 |
| CAPILLARY TUBE LENGTH | 120.000 INCHES NOMINAL |
| BULB MOUNTING METHOD | CLAMP |
| BULB LENGTH | 3.562 INCHES NOMINAL |
| BULB DIAMETER | 0.625 INCHES NOMINAL |
| VALVE EQUALIZER LOCATION | EXTERNAL |
| ADJUSTABLE PRESSURE RANGE | NOT RATED |
| SPECIAL FEATURES | MAX.PRESSURE 450 PSI |
