NSN 4820-00-287-4120 AN771P1, 1007, 00-287-4120
Product Details | DRAIN COCK
4820-00-287-4120 An item with one mounting end and one free flowing end with a metal to metal valve closure. It is designed to drain fluids from radiators, boilers, and similar items.
Part Alternates: AN771P1, 1007, 4820-00-287-4120, 00-287-4120, 4820002874120, 002874120
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-287-4120 | 16988 ( COCK, DRAIN ) |
Drawings & Photos | NSN 4820-00-287-4120
Demand History | NSN 4820-00-287-4120
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-287-4120 | 2021-07-209 | 3 | FX |
| 1007 | 2014-06-171 | 24 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-287-4120
Related Products | NSN 4820-00-287-4120
Technical Data | NSN 4820-00-287-4120
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY COPPER ALLOY FLOW CONTROL DEVICE |

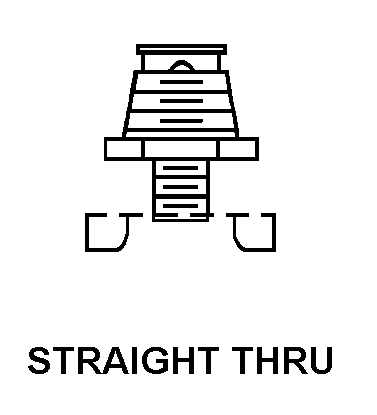

| STYLE DESIGNATOR | A2 STRAIGHT THRU |
| FLOW CONTROL DEVICE | STEM OR DISK |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END |
| CONNECTION STYLE | B46B PLAIN 1ST END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.125 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | NPTF 1ST END |
| NOMINAL THREAD SIZE | 0.125 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 27 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| SPECIAL FEATURES | STEM W/LH THD |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN771P1 |
Restrictions/Controls & Freight Information | NSN 4820-00-287-4120
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
