NSN 4820-00-287-4418 S48243167653, S4824-3167653, 3132193275F
Product Details | PLUG VALVE
4820-00-287-4418 A valve designed to control the flow of a fluid by the rotation of a ported plug or plug sector within a suitable ported seat. The plug requires lubrication for ease of operation or contains a bonded composition seal(s). See also VALVE, SEATLESS and COCK, PLUG.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: S48243167653, S4824-3167653, 3132193275F, 3132193-2-75F, 31321932IN, 3132193-2IN, 35752IN, 3575-2IN, 504592IN, 50459-2IN, 4820-00-287-4418, 00-287-4418, 4820002874418, 002874418
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-287-4418 | 05490 ( VALVE, PLUG ) |
Drawings & Photos | NSN 4820-00-287-4418
Cross Reference | NSN 4820-00-287-4418
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-287-4418
Technical Data | NSN 4820-00-287-4418
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY COPPER ALLOY FLOW CONTROL DEVICE |

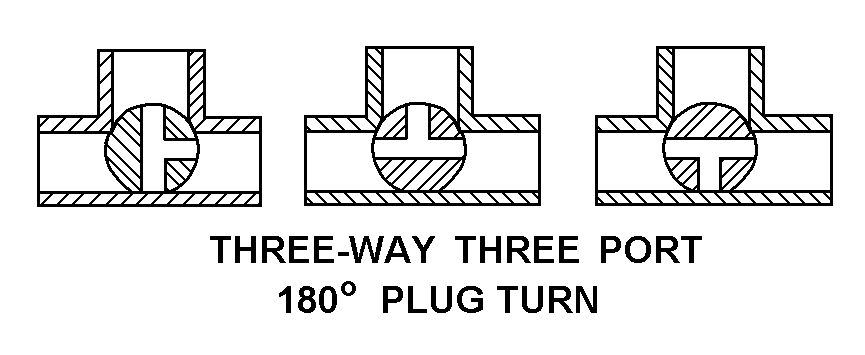

| FLOW STYLE | F14 THREE-WAY THREE PORT 180 DEGREE PLUG TURN |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 75.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | FLANGE ALL ENDS |
| FLANGE SHAPE | ROUND WITH HOLES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER | 5.562 INCHES ALL ENDS |
| NOMINAL THICKNESS | 0.438 INCHES ALL ENDS |
| BOLT HOLE QUANTITY | 6 ALL ENDS |
| BOLT HOLE NOMINAL DIAMETER | 0.562 INCHES ALL ENDS |
| BOLT CIRCLE NOMINAL DIAMETER | 4.438 INCHES ALL ENDS |
| FLANGE FACE DESIGN | PLAIN ALL ENDS |
| FURNISHED ITEMS AND QUANTITY | 1 LEVER |
| FEATURES PROVIDED | NONADJUSTABLE ROTATION |
| SPECIAL FEATURES | VALVE SIZE 2.000 IN. |
Restrictions/Controls & Freight Information | NSN 4820-00-287-4418
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-287-4418
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
