NSN 4820-00-289-3939 MS295288, MS29528-8, BJ1000AS3
Product Details | POPPET DRAIN COCK
4820-00-289-3939 An item designed to drain fluids from fuel systems, tanks, filters, or similar items. It has a mounting end, a free flowing end, and a quick-acting nonmetallic sealed closure, usually spring loaded, that holds it in an "off" position. It requires no lubrication other than from the fluid being drained.
Part Alternates: MS295288, MS29528-8, BJ1000AS3, C2E2365ND, MILV25023, MIL-V-25023, 49F979854, 49F9798-54, 575B8AS, 71D8, 71D-8, 835013, 83501-3, 23020020, 230-20020, 3590028, 3-59002-8, 371728, 3-7172-8, 3D100A, 4820-00-289-3939, 00-289-3939, 4820002893939, 002893939
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-289-3939 | 16989 ( COCK, POPPET DRAIN ) |

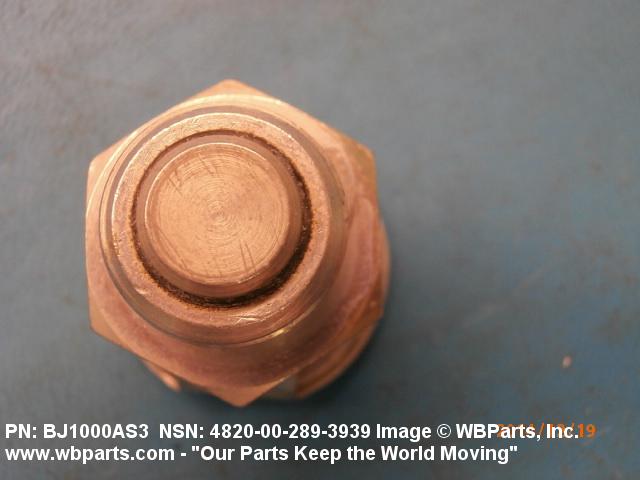

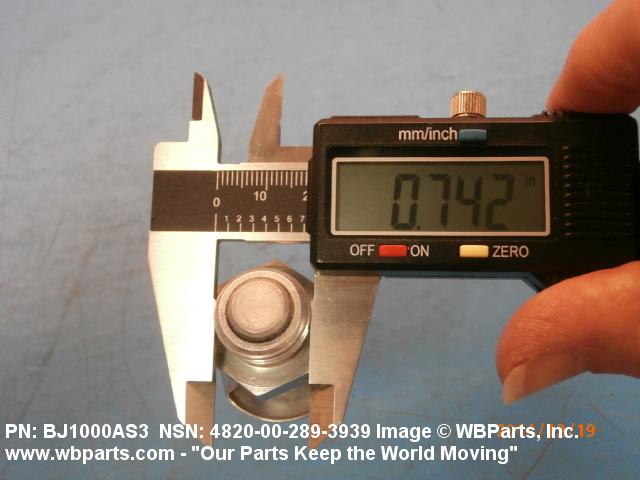

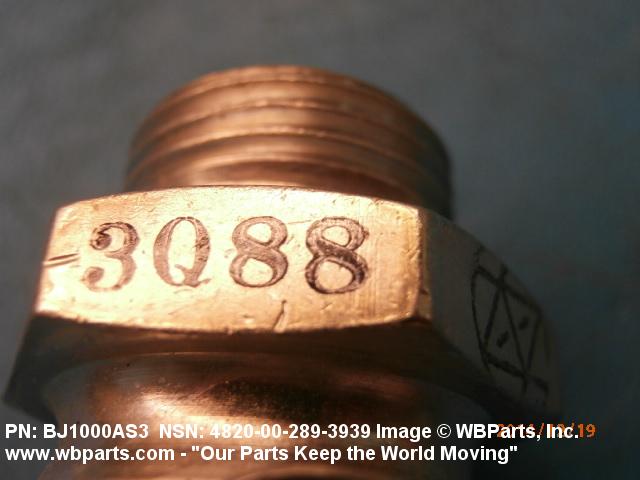

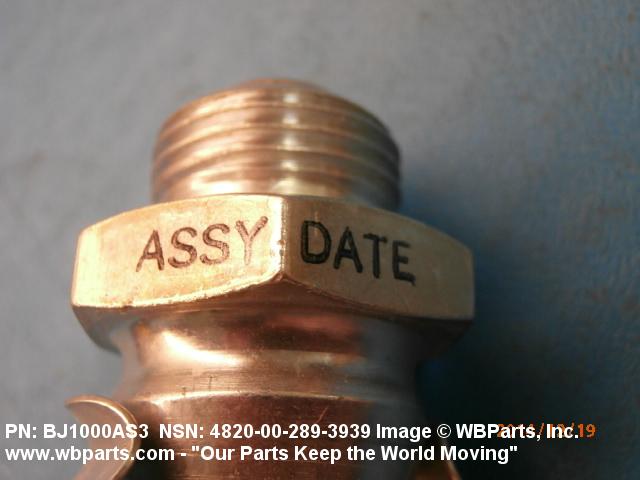

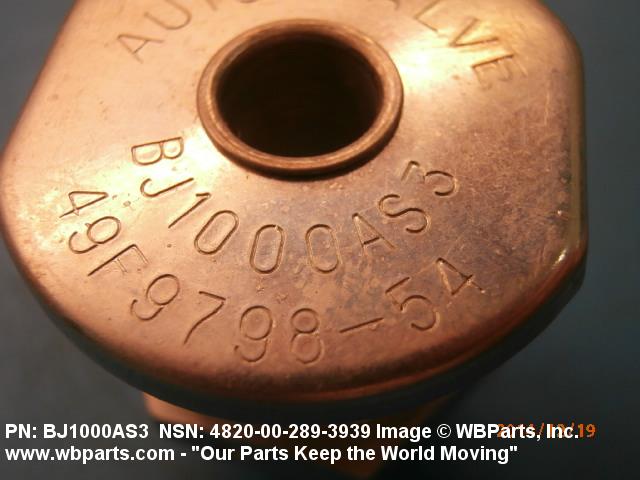

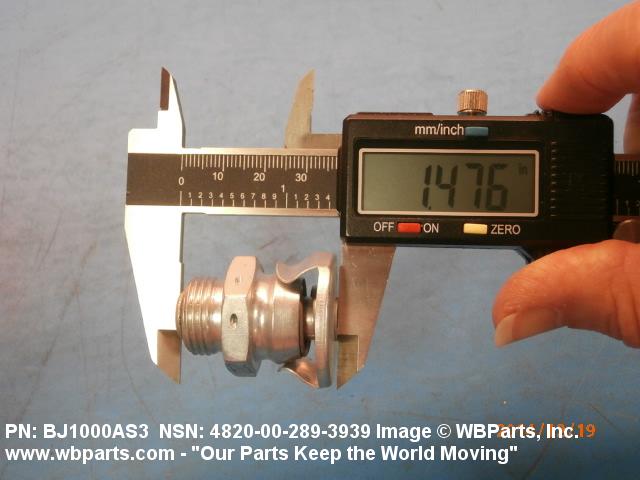

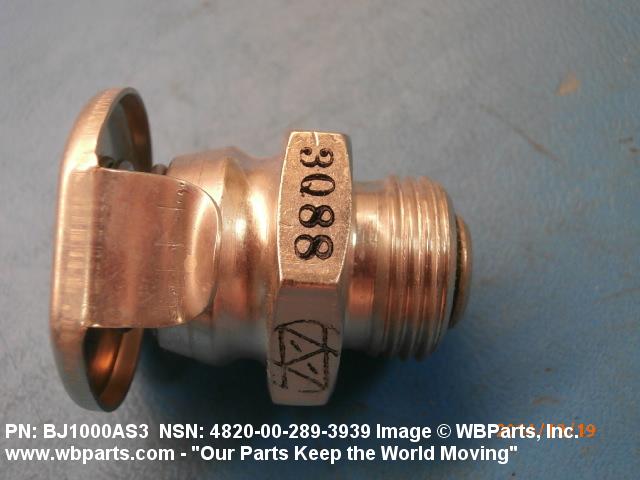

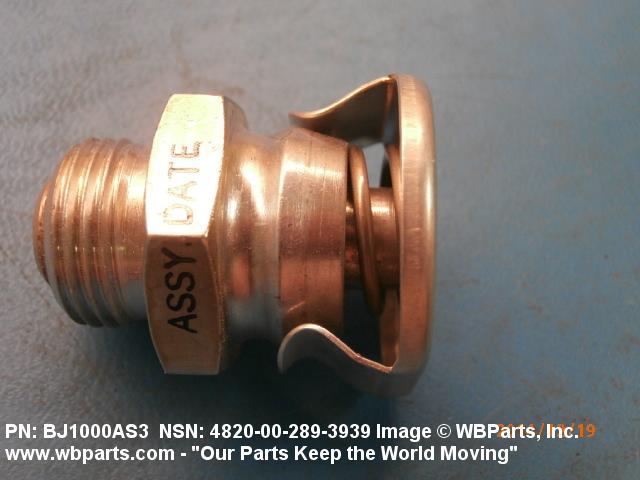

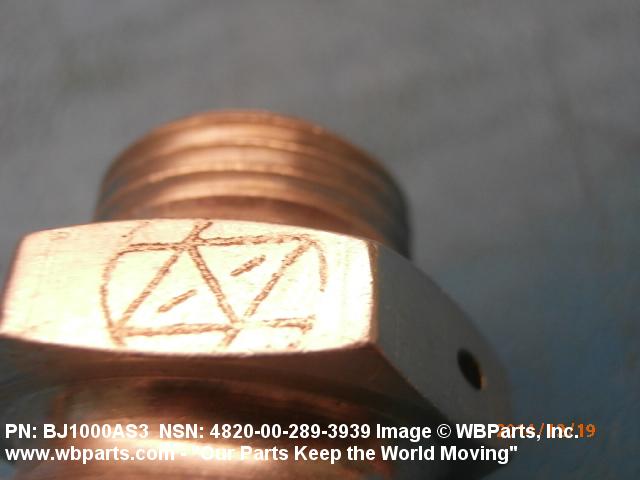

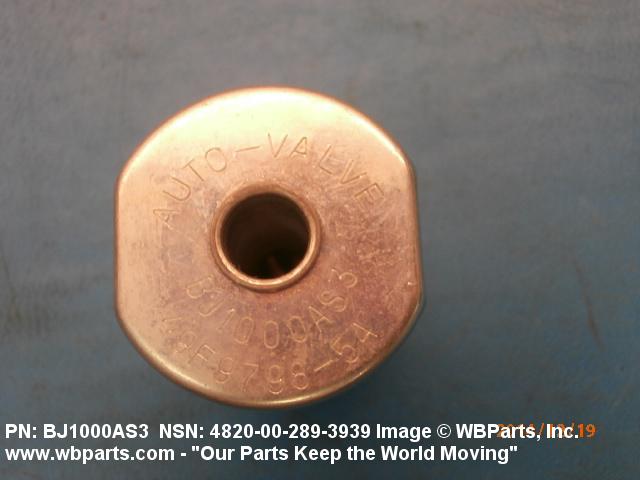

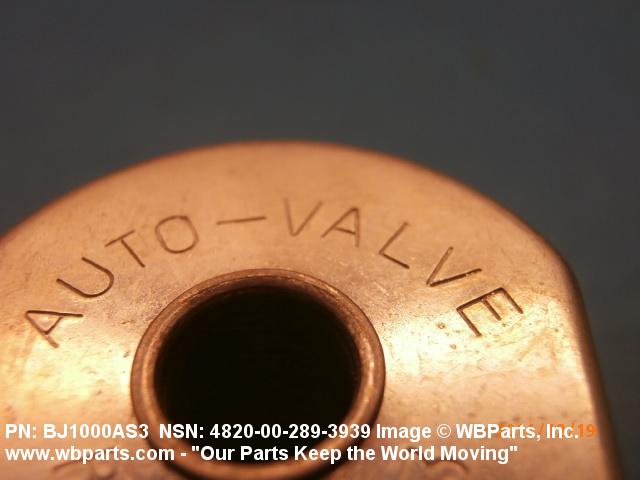

Drawings & Photos | NSN 4820-00-289-3939
Demand History | NSN 4820-00-289-3939
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| C2E2365ND | 2014-12-343 | 1 | United States |
| C2E2365ND | 2014-11-329 | 1 | United States |
| 49F979854 | 2011-04-110 | 1 | US |
Cross Reference | NSN 4820-00-289-3939
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 230-20020 | 79470 | DANA CORP WEATHERHEAD DIV |
| 3-59002-8 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 3-7172-8 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 3D100A | 82829 | ALLEN AIRCRAFT PRODUCTS INC |
| 49F9798-54 | 80049 | DEPARTMENT OF THE AIR FORCE |
| 575B8AS | 91511 | AUTO-VALVE, INC. |
| 71D-8 | 91511 | AUTO-VALVE, INC. |
| 83501-3 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| BJ1000AS3 | 91511 | AUTO-VALVE, INC. |
| C2E2365ND | 36480 | HELIGEAR CANADA ACQUISITION CORPORATION |
| MIL-V-25023 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS29528-8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-289-3939
Technical Data | NSN 4820-00-289-3939
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY |
| SURFACE TREATMENT | COPPER ALLOY |

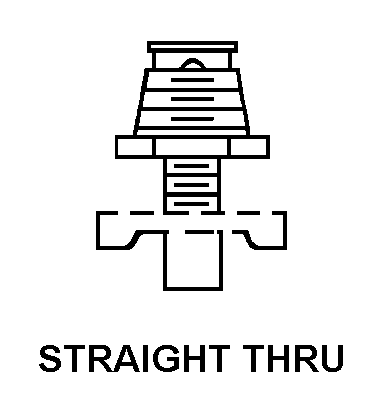

| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 60.0 POUNDS PER SQUARE INCH 1ST RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END |
| CONNECTION STYLE | B46A PLAIN 1ST END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 16 1ST END |
| THREAD CLASS | 3A 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| TEST DATA DOCUMENT | 81349-MIL-V-25023 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-V-25023 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS29528-8 |
Restrictions/Controls & Freight Information | NSN 4820-00-289-3939
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-289-3939
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
