NSN 4820-00-304-9386 1313532038, 1313-532-038, 8396816
Product Details | PLUG VALVE
4820-00-304-9386 A valve designed to control the flow of a fluid by the rotation of a ported plug or plug sector within a suitable ported seat. The plug requires lubrication for ease of operation or contains a bonded composition seal(s). See also VALVE, SEATLESS and COCK, PLUG.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 1313532038, 1313-532-038, 8396816, 4820-00-304-9386, 00-304-9386, 4820003049386, 003049386
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-304-9386 | 05490 ( VALVE, PLUG ) |
Drawings & Photos | NSN 4820-00-304-9386
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-304-9386
Technical Data | NSN 4820-00-304-9386
| Characteristic | Specifications |
|---|---|

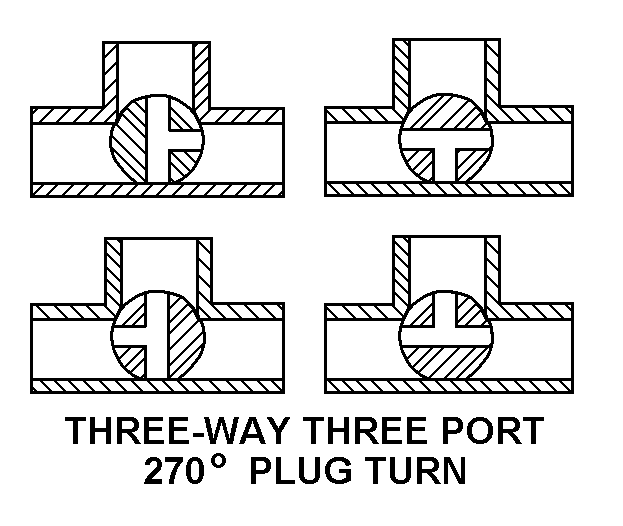

| FLOW STYLE | F22 THREE-WAY THREE PORT 270 DEGREE PLUG TURN |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE 1ST END THREADED INTERNAL PIPE 2ND END |
| CONNECTION STYLE | G9 PLAIN 1ST END |
| NOMINAL PIPE SIZE ACCOMMODATED | 1.250 INCHES 1ST END 0.500 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | NPT 1ST END NPT 2ND END |
| NOMINAL THREAD SIZE | 1.250 INCHES 1ST END 0.500 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 11-1/2 1ST END 14 2ND END |
| THREAD DIRECTION | RIGHT-HAND 1ST END RIGHT-HAND 2ND END |
| MOUNTING FACILITY | THREADED FASTENER |
| FEATURES PROVIDED | ADJUSTABLE ROTATION STOP |
| MANUFACTURERS CODE | 92003 |
| DESIGN CONTROL REFERENCE | 1313-532-038 |
