NSN 4820-00-351-6701 H220T16TT, 00-351-6701, 003516701
Product Details | CHECK VALVE
4820-00-351-6701 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: H220T16TT, 4820-00-351-6701, 00-351-6701, 4820003516701, 003516701
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 31 MAR 1971 | 00-351-6701 | 05487 ( VALVE, CHECK ) |

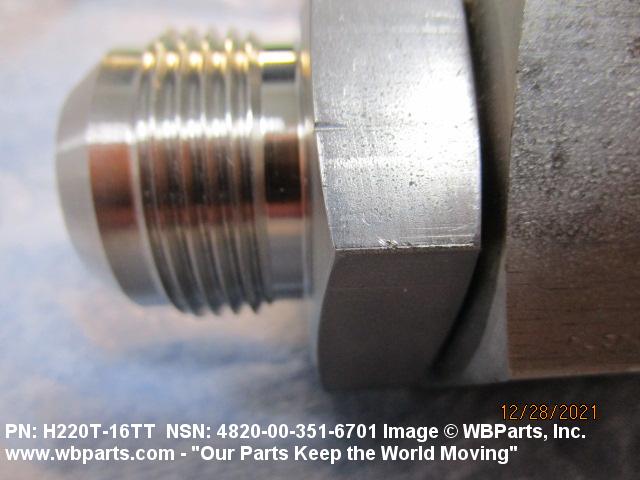

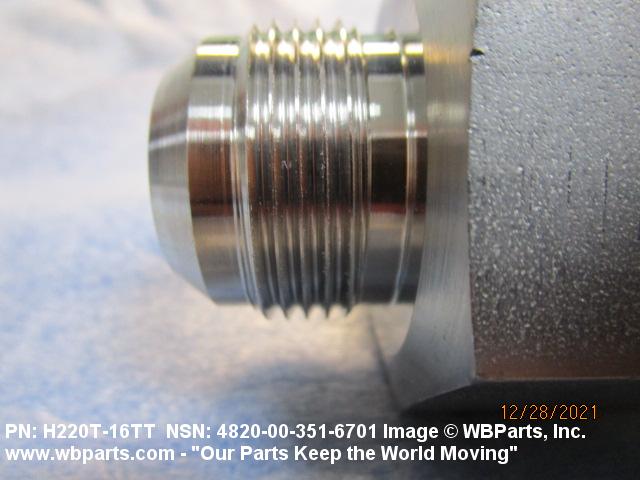

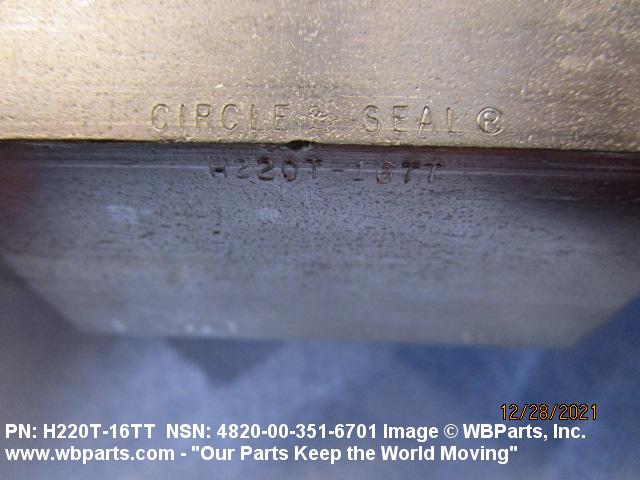

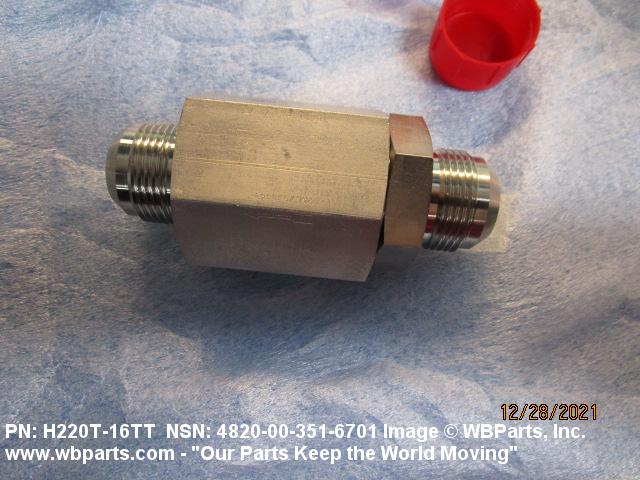

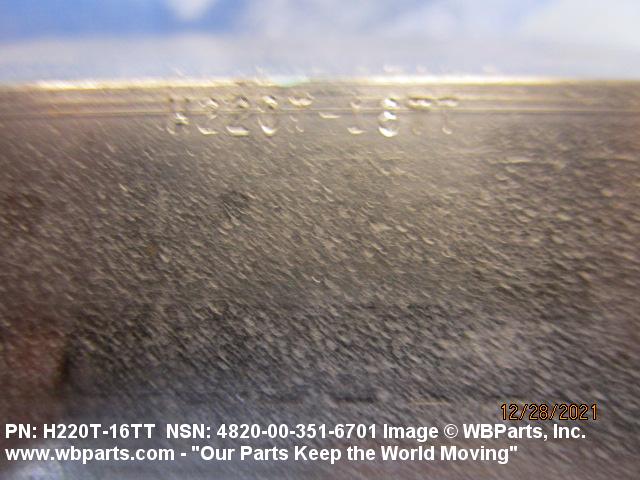

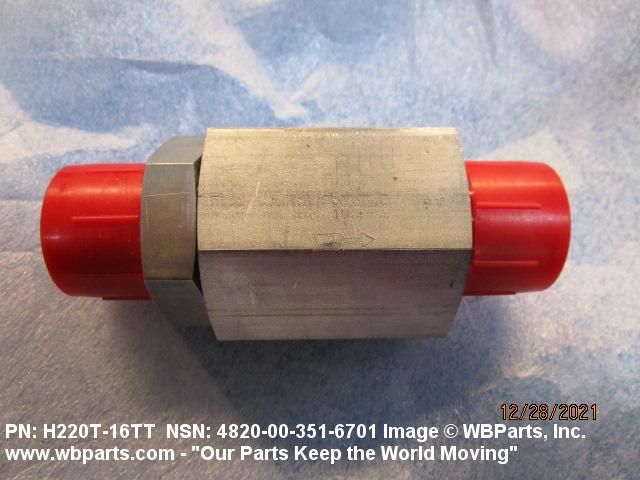

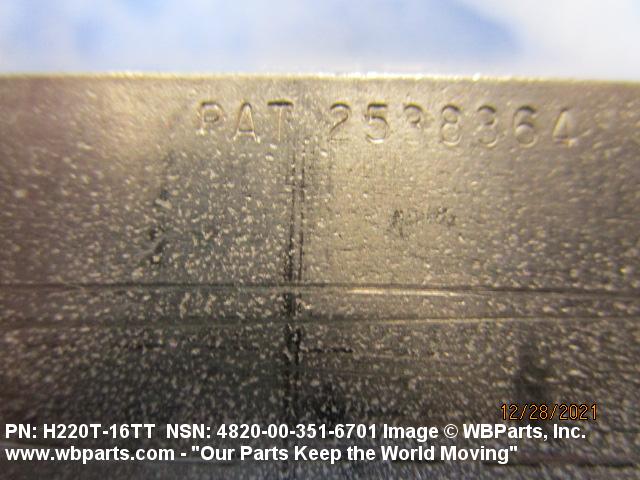

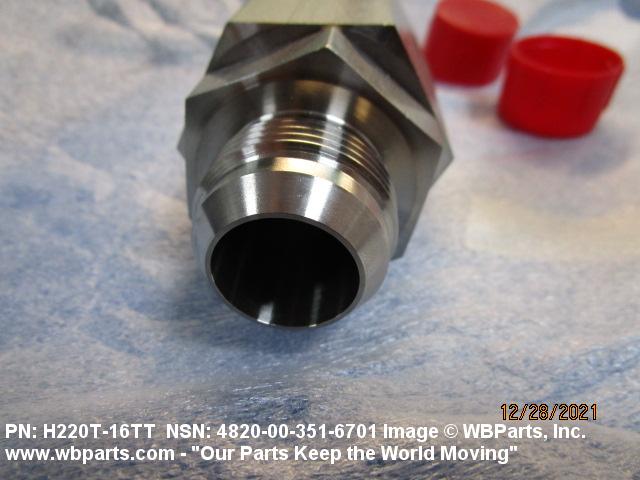

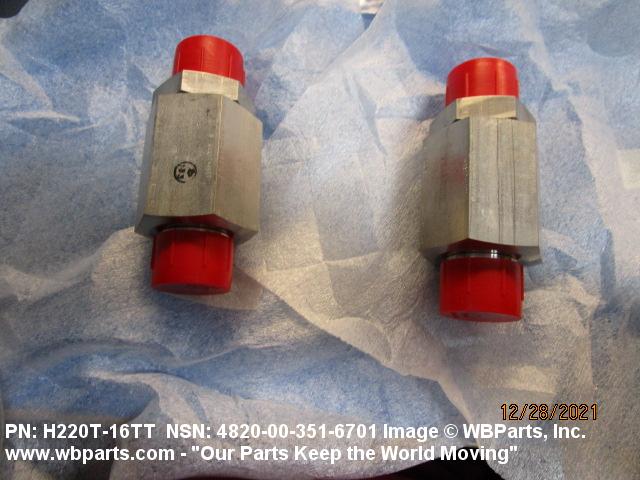

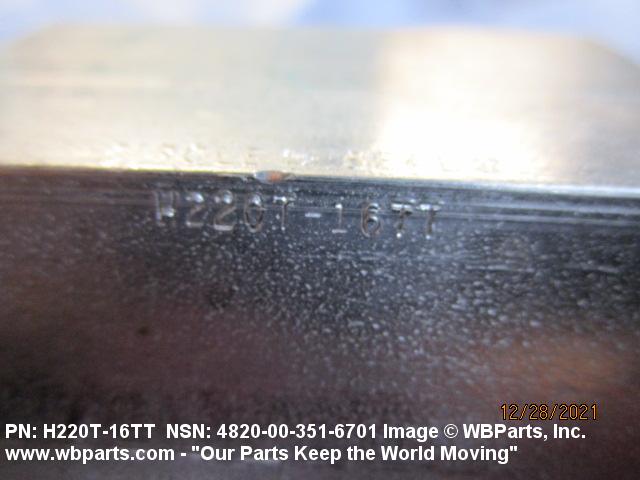

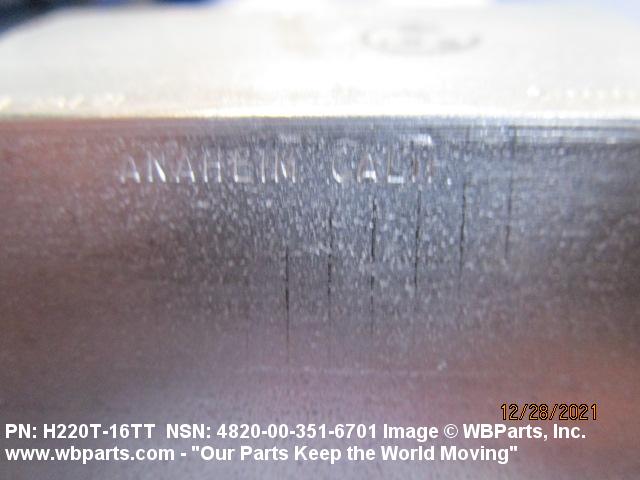

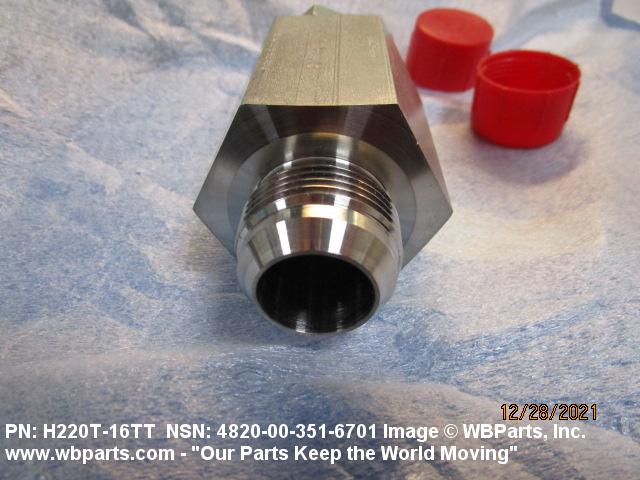

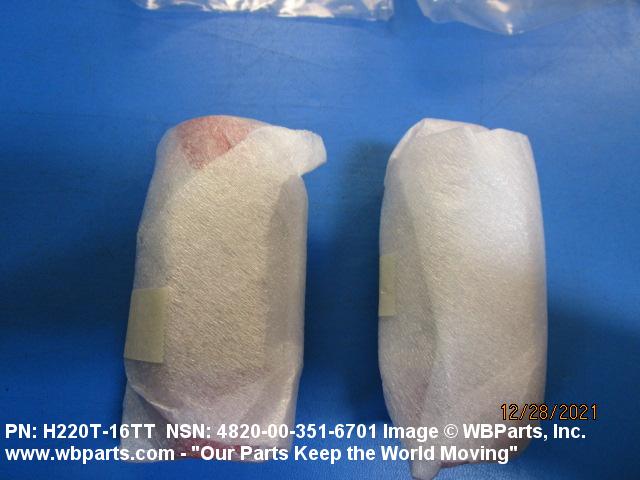

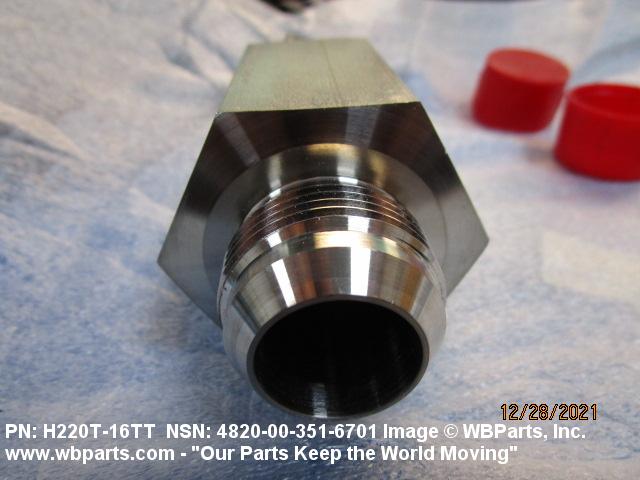

Drawings & Photos | NSN 4820-00-351-6701
Demand History | NSN 4820-00-351-6701
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-351-6701 | 2021-12-344 | 2 | Singapore |
| H220T16TT | 2021-09-257 | 10 | Singapore |
Cross Reference | NSN 4820-00-351-6701
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H220T16TT | 91816 | CIRCOR AEROSPACE, INC. DBA CIRCLE SEAL CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-351-6701
Technical Data | NSN 4820-00-351-6701
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303SE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764,TYPE 303SE-CANCELED FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| MAXIMUM OPERATING PRESSURE | 6000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | -100.0 DEG FAHRENHEIT 1ST RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | FLARED (TUBE) ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| THREAD SERIES DESIGNATOR | UN ALL ENDS |

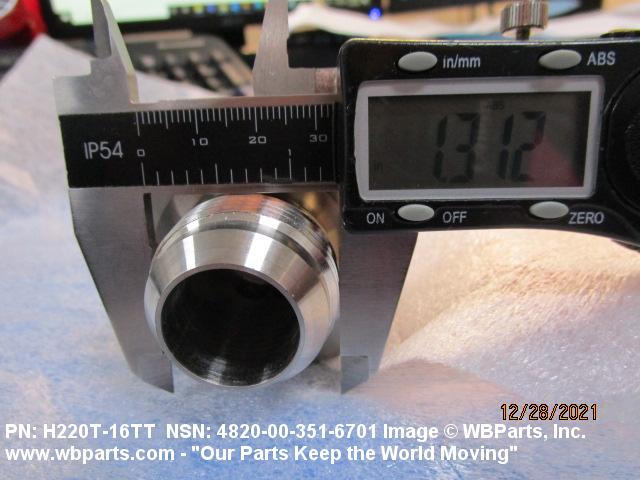

| NOMINAL THREAD SIZE | 1.312 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 12 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| MOUNTING POSITION | HORIZONTAL OR |
| DISK LOADING METHOD | SPRING |
Restrictions/Controls & Freight Information | NSN 4820-00-351-6701
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
