NSN 4820-00-464-9174 1559, 155-9, 595B6
Product Details | HYDRAULIC SYSTEM BLEEDER VALVE
4820-00-464-9174 A metallic, threaded, screw-shaped item used in hydraulic brake cylinders, hydraulic power units, missile launching hydraulic systems, and the like, for the purpose of providing a means of releasing air form and/or flushing a hydraulic system. It may be furnished with or without a dust cap. Excludes spring loaded or automatic type air pressure relief valves, and BOLT, FLUID PASSAGE.
Part Alternates: 1559, 155-9, 595B6, 595B-6, 8852802, 8852802-10, 4820-00-464-9174, 00-464-9174, 4820004649174, 004649174, 885280210
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 14 MAY 1969 | 00-464-9174 | 37648 ( VALVE, BLEEDER, HYDRAULIC SYSTEM ) |

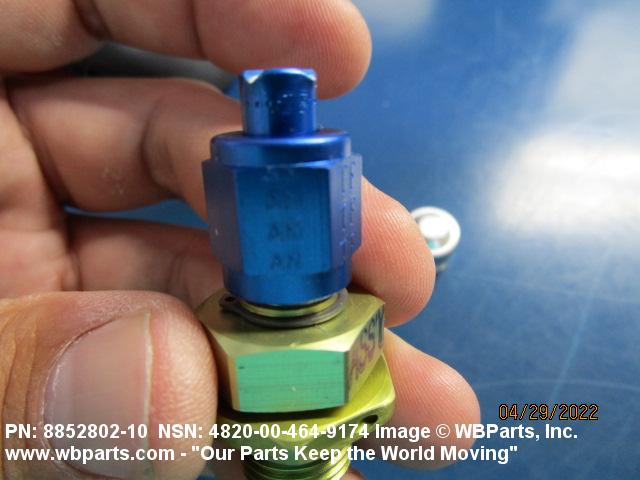

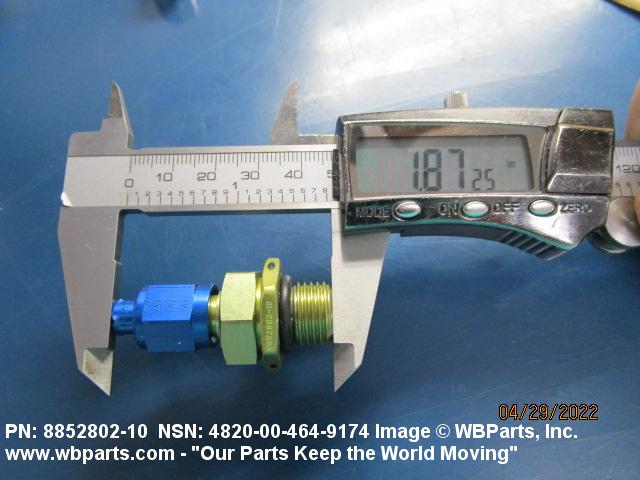

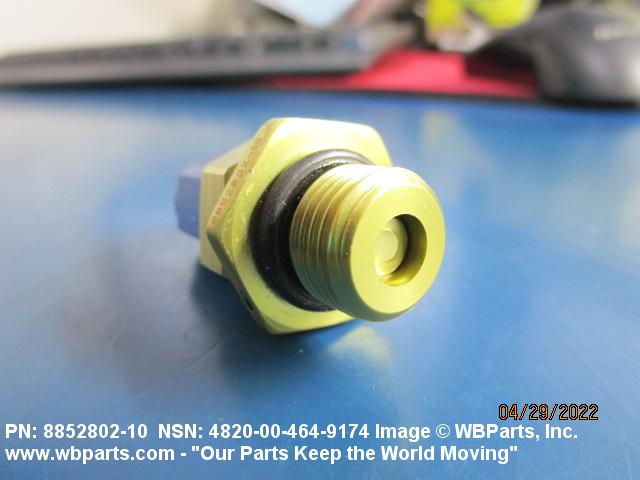

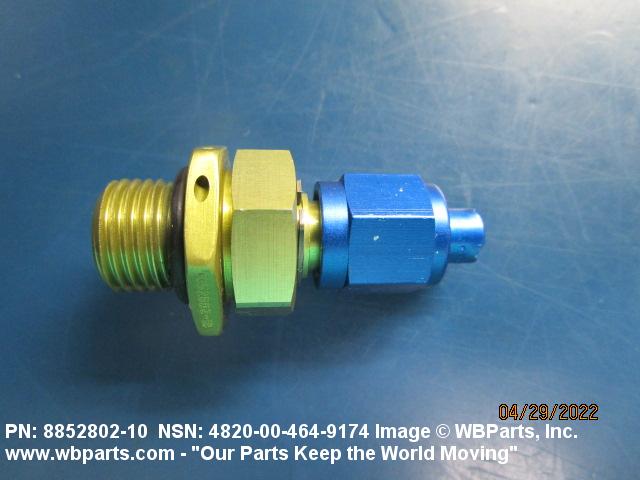

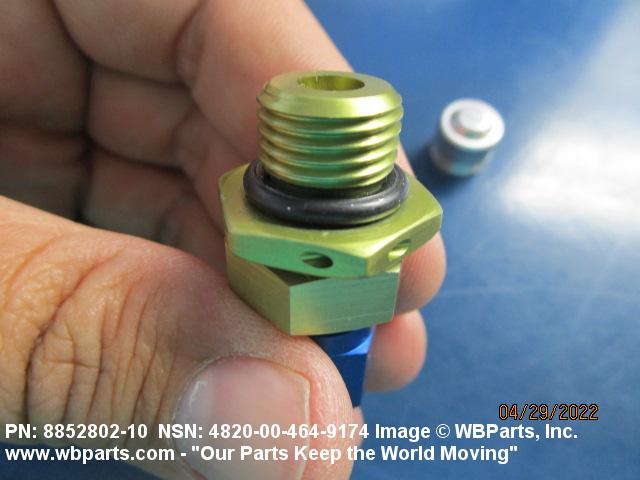

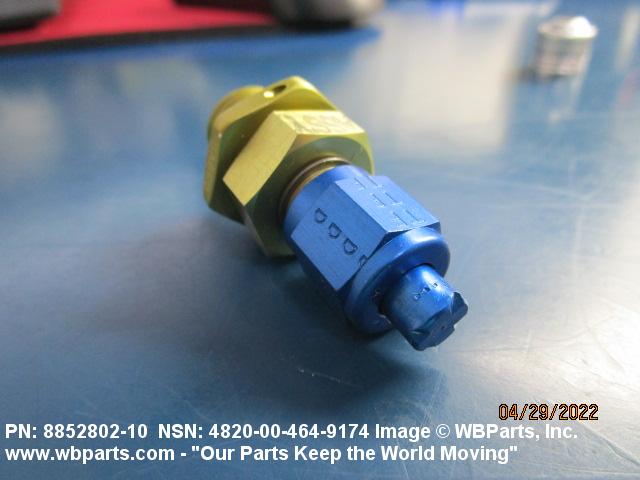

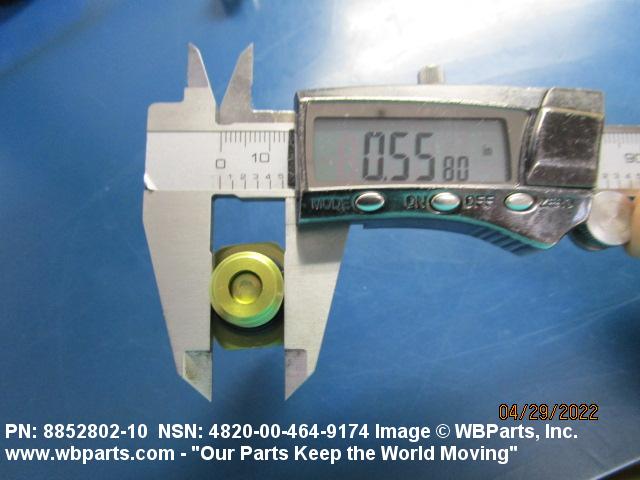

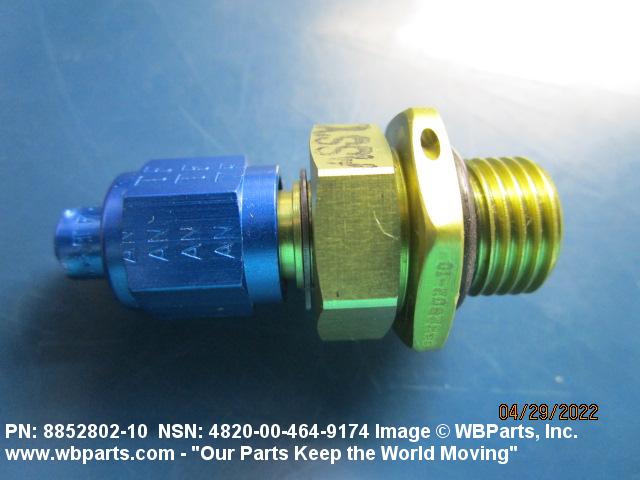

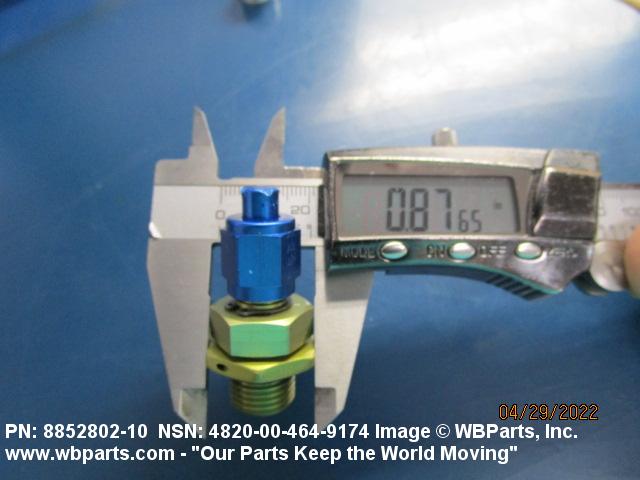

Drawings & Photos | NSN 4820-00-464-9174
Demand History | NSN 4820-00-464-9174
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-464-9174 | 2022-04-117 | 1 | US |
| 4820-00-464-9174 | 2022-04-116 | 1 | us |
| 4820-00-464-9174 | 2018-09-256 | 88 | DIBBS |
| 4820-00-464-9174 | 2017-10-288 | 57 | DIBBS |
| 4820-00-464-9174 | 2016-02-35 | 1 | DIBBS-RFPs |
| 4820-00-464-9174 | 2015-12-337 | 230 | DIBBS |
| 4820-00-464-9174 | 2015-07-210 | 262 | DIBBS |
| 4820-00-464-9174 | 2015-06-165 | 235 | DIBBS |
| 4820-00-464-9174 | 2012-05-151 | 90 | DIBBS |
| 4820-00-464-9174 | 2012-02-33 | 49 | DIBBS |
| 4820-00-464-9174 | 2011-12-355 | 22 | DIBBS |
| 4820-00-464-9174 | 2011-12-341 | 74 | DIBBS |
| 4820-00-464-9174 | 2011-11-318 | 45 | DIBBS |
| 4820-00-464-9174 | 2011-09-255 | 0 | DIBBS |
| 4820-00-464-9174 | 2011-06-180 | 106 | DIBBS |
| 4820-00-464-9174 | 2008-10-283 | 97 | DIBBS |
| 4820-00-464-9174 | 2008-09-247 | 138 | DIBBS |
Cross Reference | NSN 4820-00-464-9174
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-464-9174
Related Products | NSN 4820-00-464-9174
Technical Data | NSN 4820-00-464-9174
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| III END ITEM IDENTIFICATION | ACFT, TYPE C-5/T.O. 4B1-2-1203, FIG 8, IND 54 |
| III FSC APPLICATION DATA | BRAKE ASSEMBLY, MAIN LANDING GEAR, REF NBR 2-1490, CAGE CODE 97153, NSN1630-01-189-4176 |
Restrictions/Controls & Freight Information | NSN 4820-00-464-9174
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-464-9174
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
