NSN 4820-00-471-8621 CM11N01R17TDDE21, SP113 , R9W1133
Product Details | DIRECTIONAL CONTROL LINEAR VALVE
4820-00-471-8621 A manually or power operated valve having three or more ports. The direction of the flow through the various ports is controlled by either one or more reciprocating slide(s) or spool(s) with recess areas which mate with ports in an integral or replaceable ported sleeve, or one or more poppet(s). It is designed to change the direction of fluid flow from one valve port to another. An off (no flow) position is not a flow pattern. The valve is designed to actuate various components of a fluid system. A power operated valve may have a manual override. For items which stop, start, or change the flow of fluid, see: VALVE, SOLENOID. Excludes VALVE, PLUG. See also SERVOVALVE, HYDRAULIC; BODY SECTION, WORKING, LINEAR DIRECTIONAL CONTROL VALVE; and VALVE ASSEMBLY.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: CM11N01R17TDDE21, SP113 , R9W1133, 212510, 212-510 , 328893 , 49131, 491311, 49131-1 , 491312, 49131-2 , 4820-00-471-8621, 00-471-8621, 4820004718621, 004718621
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 13 JAN 1971 | 00-471-8621 | 61929 ( VALVE, LINEAR, DIRECTIONAL CONTROL ) |

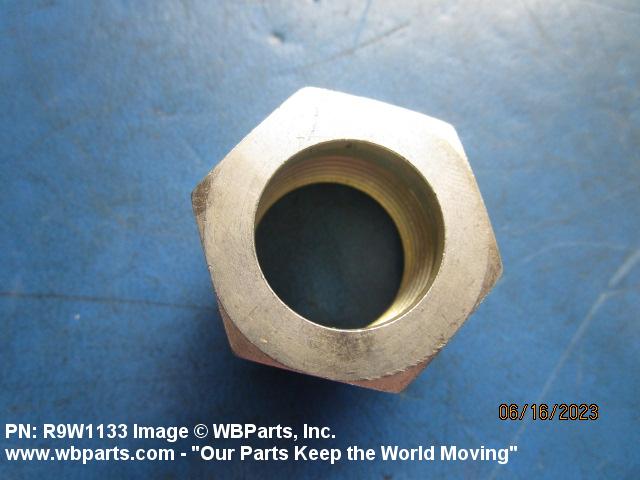

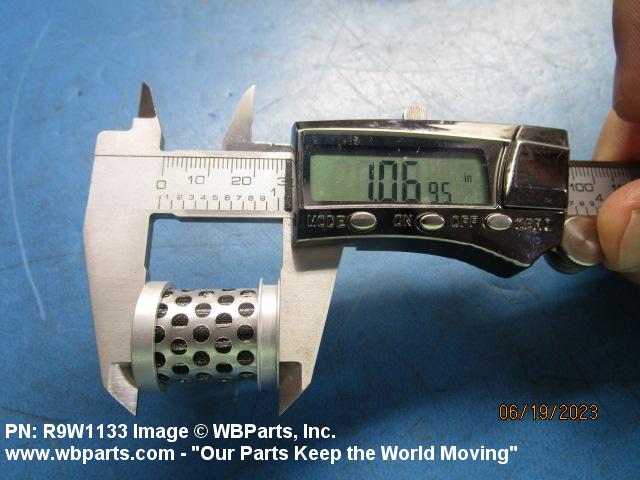

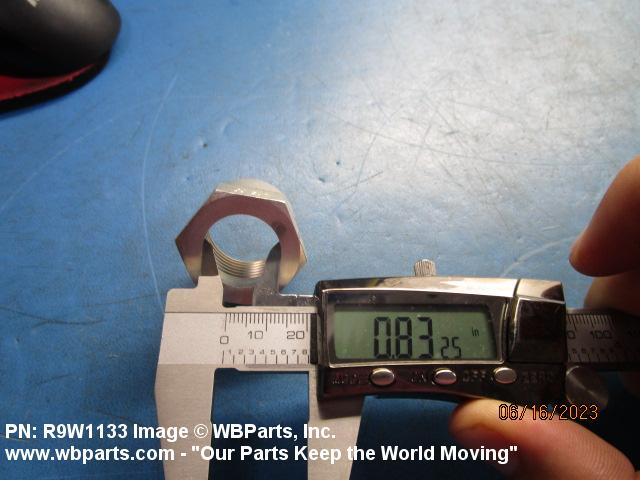

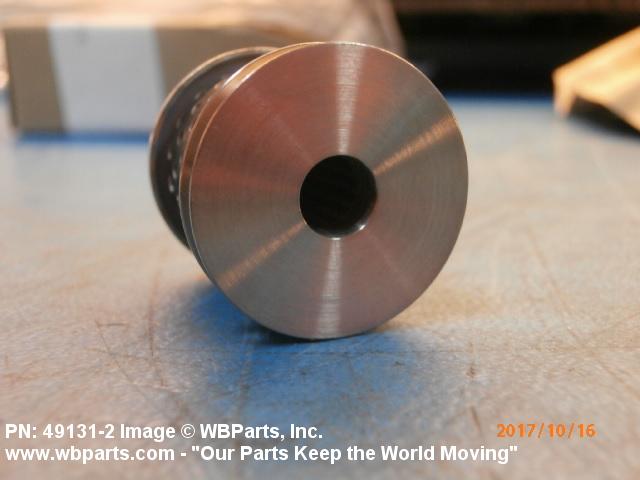

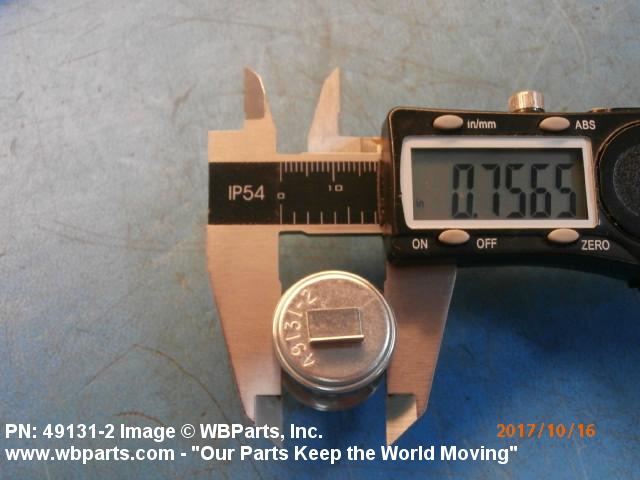

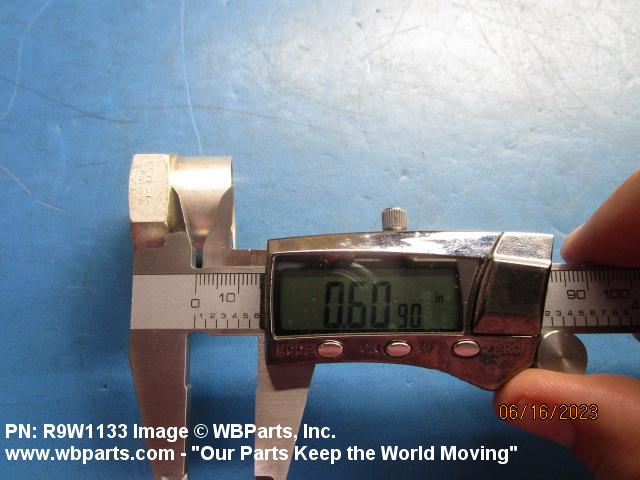

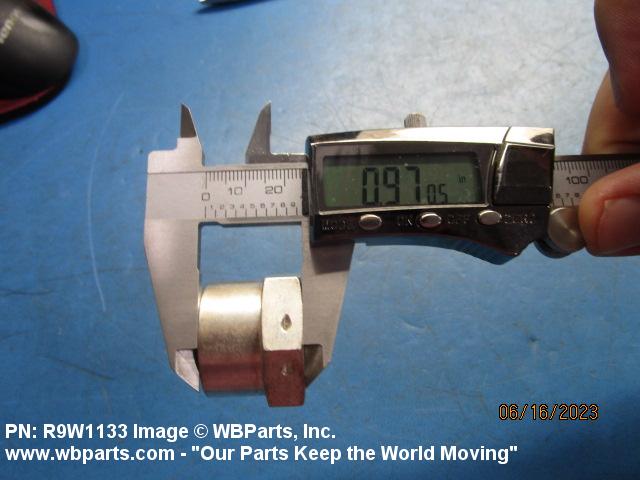

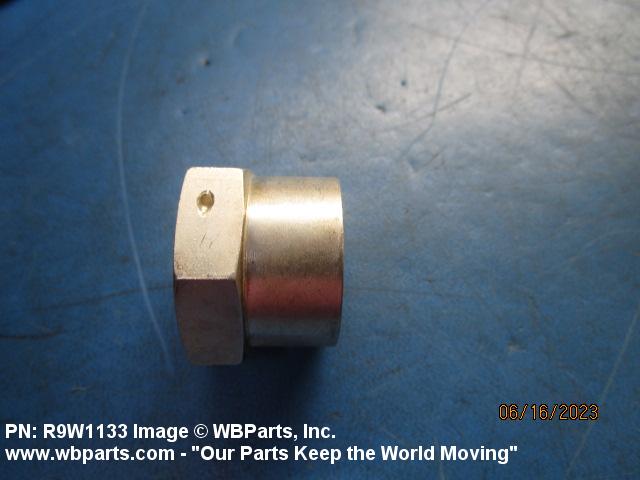

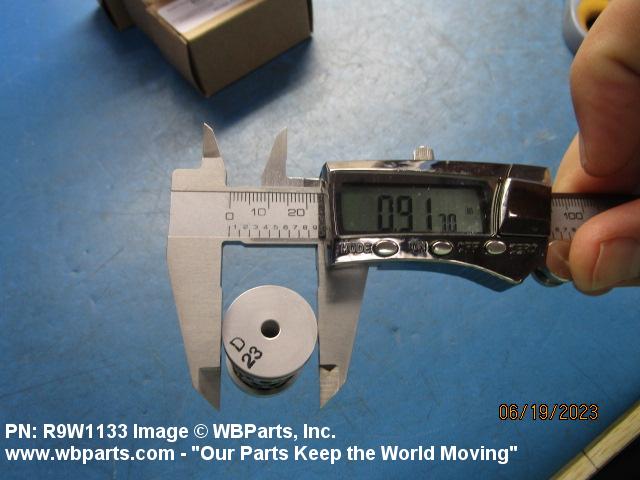

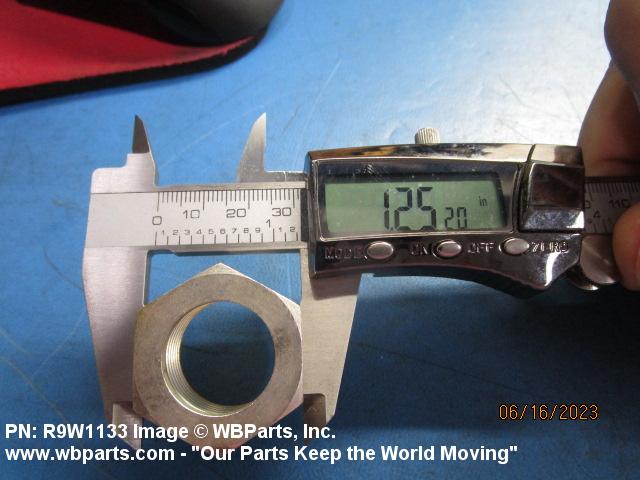

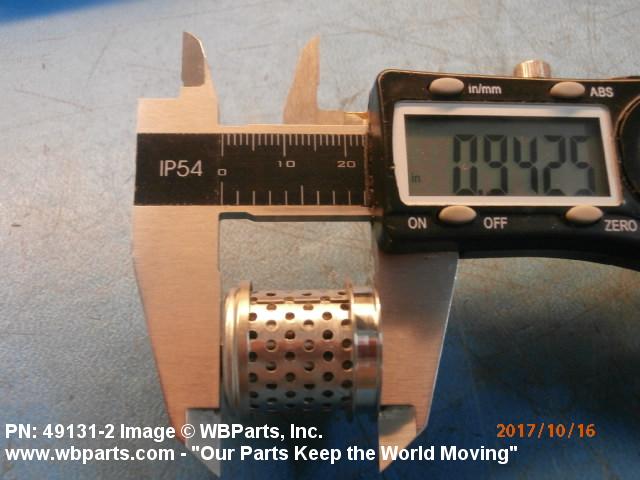

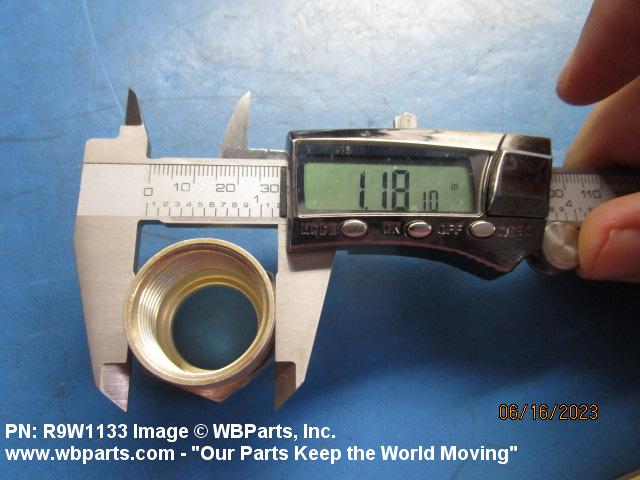

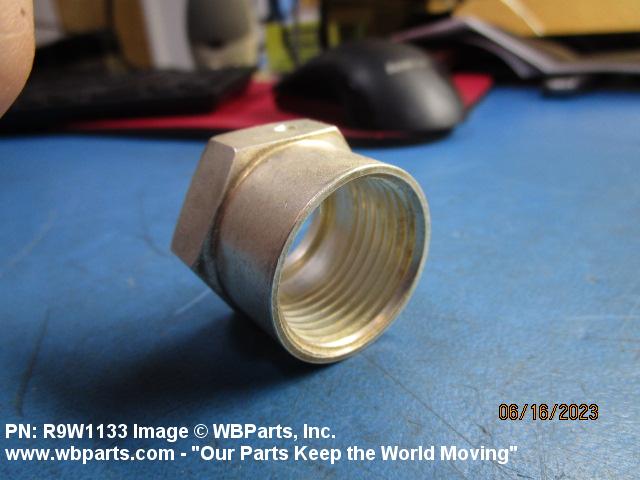

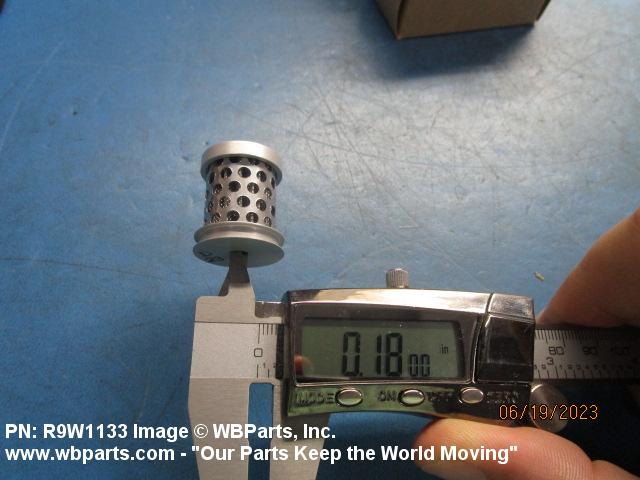

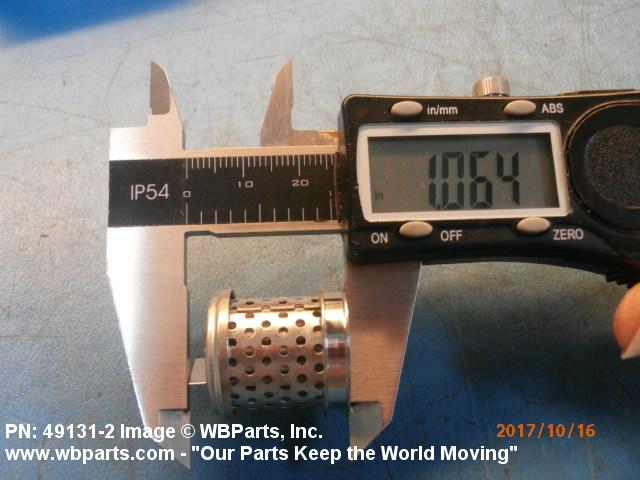

Drawings & Photos | NSN 4820-00-471-8621
Demand History | NSN 4820-00-471-8621
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 491312 | 2025-02-42 | 2 | PH |
| R9W1133 | 2024-08-240 | 1 | United States |
| R9W1133 | 2023-11-332 | 1 | US |
| 491312 | 2023-05-144 | 1 | United States |
| R9W1133 | 2023-05-144 | 6 | United States |
| SP113 | 2021-08-238 | 55 | US |
| R9W1133 | 2020-07-203 | 1 | United States |
| R9W1133 | 2017-05-139 | 2 | Taiwan |
| 491312 | 2017-05-136 | 2 | Canada |
| 49131-2 | 2017-02-53 | 9 | |
| 491311 | 2012-09-262 | 50 | NL |
| 49131-1 | 2011-09-269 | 12 | ID |
| 491312 | 2009-03-75 | 4 | US |
| R9W1133 | 2007-07-212 | 6 | Australia |
Cross Reference | NSN 4820-00-471-8621
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CM11N01R17TDDE21 | 62983 | EATON AEROSPACE LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-471-8621
Related Products | NSN 4820-00-471-8621
Technical Data | NSN 4820-00-471-8621
| Characteristic | Specifications |
|---|---|
| VALVE DISCHARGE FLOW RATE | 30.0 GALLONS PER MINUTE |
| END CONNECTION QUANTITY | 2 |
| CONNECTION TYPE | THREADED INTERNAL PIPE |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.750 INCHES AND 0.875 INCHES |
| THREAD CLASS | 2B |
| FURNISHED ITEMS AND QUANTITY | 1 RELIEF VALVE |
Restrictions/Controls & Freight Information | NSN 4820-00-471-8621
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069095 | FILTERS LIQUID/GAS NOI SUB2 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
