NSN 4820-00-509-9372 B10364, 00-509-9372, 005099372
Product Details | VALVE SEAT
4820-00-509-9372 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: B10364, 4820-00-509-9372, 00-509-9372, 4820005099372, 005099372
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 00-509-9372 | 22113 ( SEAT, VALVE ) |
Drawings & Photos | NSN 4820-00-509-9372
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-509-9372
Technical Data | NSN 4820-00-509-9372
| Characteristic | Specifications |
|---|---|

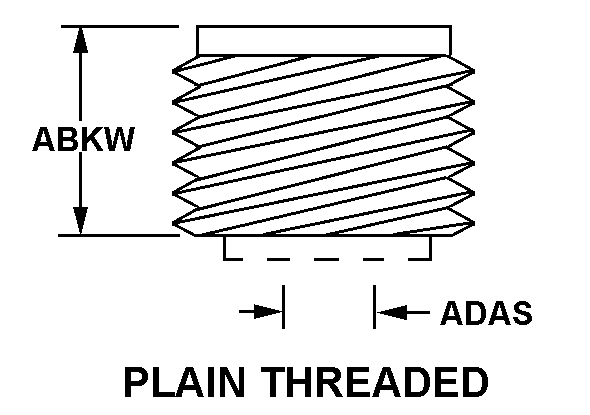

| STYLE DESIGNATOR | B5A PLAIN THREADED |
| OVERALL HEIGHT | 0.812 INCHES NOMINAL |
| BODY STEPPED INSIDE DIAMETER | 0.407 INCHES MINIMUM AND 0.409 INCHES MAXIMUM FIRST STEP |
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-611 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| SEATING SURFACE SHAPE | ANGULAR |
| SEAT ANGLE IN DEG | 45.000 NOMINAL |
| THREAD SERIES DESIGNATOR | UNF SINGLE THREADED PORTION |
| NOMINAL THREAD SIZE | 1.125 INCHES SINGLE THREADED PORTION |
| THREAD CLASS | 2A SINGLE THREADED PORTION |
| THREAD LENGTH | 0.281 INCHES NOMINAL SINGLE THREADED PORTION |
| MANUFACTURERS CODE | 03990 |
| DESIGN CONTROL REFERENCE | B10364 |
Restrictions/Controls & Freight Information | NSN 4820-00-509-9372
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
