NSN 4820-00-522-4348 NPVE11G, EA02CG199, EA03PC462
Product Details | EXPANSION VALVE
4820-00-522-4348 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Part Alternates: NPVE11G, EA02CG199, EA03PC462, 4820-00-522-4348, 00-522-4348, 4820005224348, 005224348
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-522-4348 | 05493 ( VALVE, EXPANSION ) |
Drawings & Photos | NSN 4820-00-522-4348
Demand History | NSN 4820-00-522-4348
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-522-4348 | 2011-10-283 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-522-4348
Related Products | NSN 4820-00-522-4348
Technical Data | NSN 4820-00-522-4348
| Characteristic | Specifications |
|---|---|

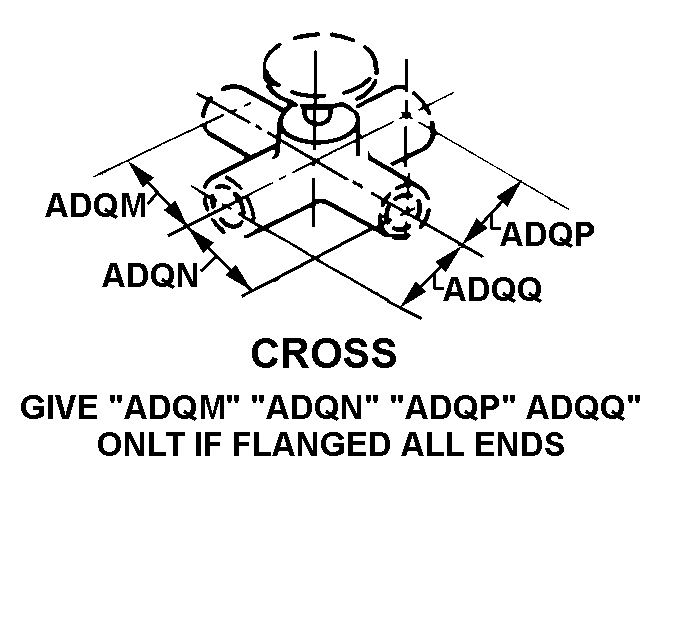

| BODY STYLE | A3 CROSS |
| BODY MATERIAL | BRASS |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | H7 PLAIN |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.625 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | H7 PLAIN |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.875 INCHES NOMINAL |
| TEMP RATING | NOT RATED |
| VALVE EXPANSION CONTROL TYPE | THERMOSTATIC |
| VALVE EVAPORATOR TEMP RANGE DESIGNATION | HIGH |
| VALVE PRESSURE LIMITING DEVICE | NOT INCLUDED |
| REFRIGERATION CAPACITY IN BTU PER HOUR | 132.0 |
| VALVE EQUALIZER LOCATION | EXTERNAL |
| VALVE EQUALIZER CONNECTION TYPE | FLARED TUBE |
| VALVE EQUALIZER CONNECTION DIAMETER | 0.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4820-00-522-4348
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-522-4348
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
