NSN 4820-00-579-6816 825011, 8250-1-1, 00-579-6816
Product Details | BUTTERFLY VALVE
4820-00-579-6816 A valve that controls flow by a circular disk, or a pair of semicircular disks, attached to a common spindle or lever turning on a diametral axis.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 825011, 8250-1-1, 4820-00-579-6816, 00-579-6816, 4820005796816, 005796816
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 14 DEC 1974 | 00-579-6816 | 05489 ( VALVE, BUTTERFLY ) |
Drawings & Photos | NSN 4820-00-579-6816
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-579-6816
Technical Data | NSN 4820-00-579-6816
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY STEEL FLOW CONTROL DEVICE STEEL SEAT STEEL STEM |
| SURFACE TREATMENT | PASSIVATE |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | FLANGE 1ST END UNTHREADED EXTERNAL HOSE 2ND END |

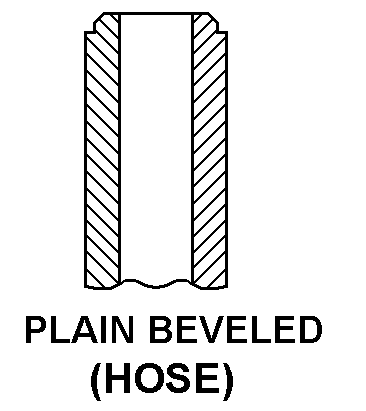

| CONNECTION STYLE | G64B PLAIN BEVELED ALL ENDS |
| FLANGE SHAPE | ROUND 1ST END |
| NOMINAL OUTSIDE DIAMETER | 4.625 INCHES 1ST END |
| NOMINAL THICKNESS | 0.250 INCHES 1ST END |
| FLANGE FACE DESIGN | PLAIN 1ST END |
| NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED | 3.375 INCHES ALL ENDS |
| MANUFACTURERS CODE | 81833 |
| DESIGN CONTROL REFERENCE | 8250-1-1 |
Restrictions/Controls & Freight Information | NSN 4820-00-579-6816
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
