NSN 4820-00-606-0717 371054, 00-606-0717, 006060717
Product Details | SPECIAL SHAPED VALVE DIAPHRAGM
4820-00-606-0717 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.20529100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers42200038Marine Lifesaving and Diving Equipment48100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 371054, 4820-00-606-0717, 00-606-0717, 4820006060717, 006060717
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-606-0717 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |

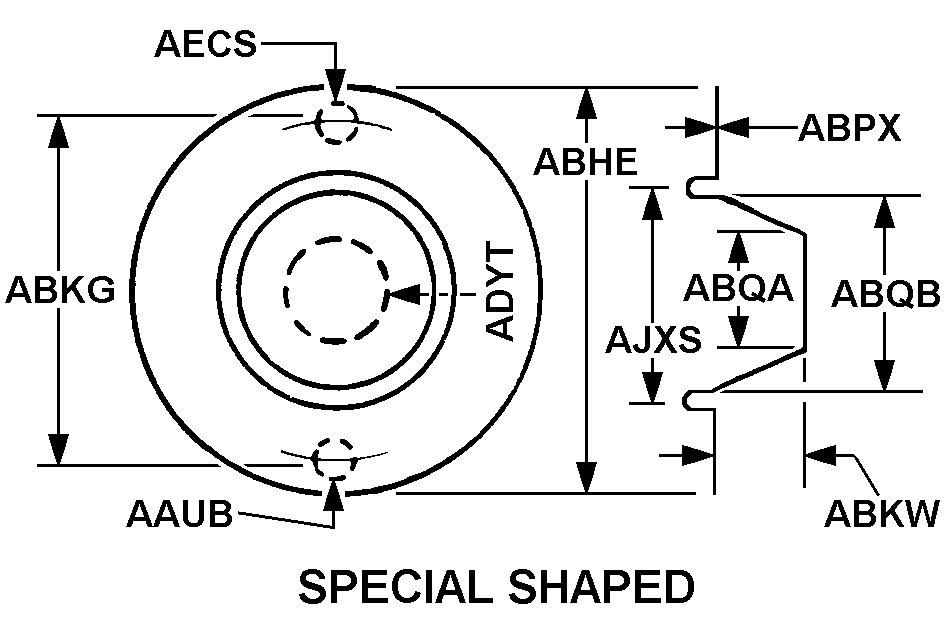

Drawings & Photos | NSN 4820-00-606-0717
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-606-0717
Technical Data | NSN 4820-00-606-0717
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER |
| STYLE DESIGNATOR | 61 SPECIAL SHAPED |
| HOLE DIAMETER | 0.165 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.375 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 1.060 INCHES NOMINAL |
| OVERALL HEIGHT | 0.070 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.010 INCHES NOMINAL |
| TAPER MINOR DIAMETER | 0.250 INCHES NOMINAL |
| TAPER MAJOR DIAMETER | 0.320 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.025 INCHES NOMINAL |
| BEAD DIAMETER | 0.406 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 6 |
| SPECIAL FEATURES | MATERIAL: RUBBER IMPREGNATED FABRIC |
Restrictions/Controls & Freight Information | NSN 4820-00-606-0717
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-606-0717
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
