NSN 4820-00-618-9046 869A8TB, 00-618-9046, 006189046
Product Details | CHECK VALVE
4820-00-618-9046 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: 869A8TB, 4820-00-618-9046, 00-618-9046, 4820006189046, 006189046
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-618-9046 | 05487 ( VALVE, CHECK ) |

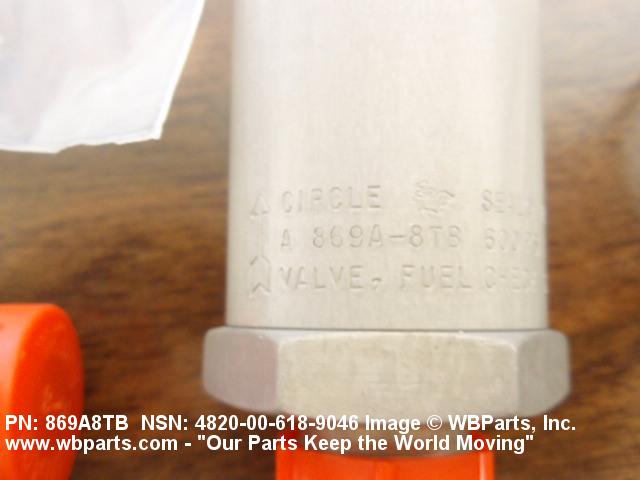

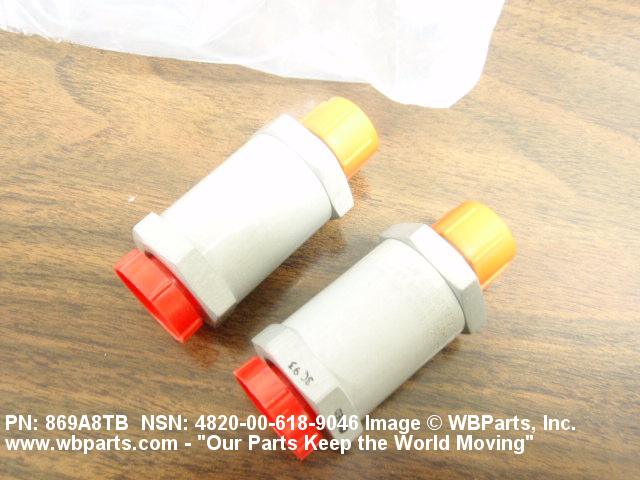

Drawings & Photos | NSN 4820-00-618-9046
Demand History | NSN 4820-00-618-9046
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 869A8TB | 2010-10-294 | 2 | United States |
Cross Reference | NSN 4820-00-618-9046
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 869A8TB | 91816 | CIRCOR AEROSPACE, INC. DBA CIRCLE SEAL CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-618-9046
Related Products | NSN 4820-00-618-9046
Technical Data | NSN 4820-00-618-9046
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6,ALLOY 2024,T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | A3 STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| MEDIA FOR WHICH DESIGNED | AIR 1ST RESPONSE FUEL/OIL, HYDROCARBON 2ND RESPONSE CARBON DIOXIDE 3RD RESPONSE ETHYLENE GLYCOL 4TH RESPONSE ALCOHOL, ETHYL 5TH RESPONSE |
| MAXIMUM OPERATING PRESSURE | 600.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 180.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED INTERNAL BOSS 2ND END |
| CONNECTION STYLE | B42 FLARED 1ST END B4 GASKET SEAL 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES 1ST END 0.500 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END UNF 2ND END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END 0.750 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END 3B 2ND END |
| THREAD DIRECTION | RIGHT-HAND 1ST END RIGHT-HAND 2ND END |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| DISK LOADING METHOD | SPRING |
| MANUFACTURERS CODE | 91816 |
| DESIGN CONTROL REFERENCE | 869A8TB |
Restrictions/Controls & Freight Information | NSN 4820-00-618-9046
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-618-9046
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
