NSN 4820-00-698-3317 201P6HC3, 201P6WC3, 8169029
Product Details | PLUG VALVE
4820-00-698-3317 A valve designed to control the flow of a fluid by the rotation of a ported plug or plug sector within a suitable ported seat. The plug requires lubrication for ease of operation or contains a bonded composition seal(s). See also VALVE, SEATLESS and COCK, PLUG.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 201P6HC3, 201P6WC3, 8169029, 4820-00-698-3317, 00-698-3317, 4820006983317, 006983317
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-698-3317 | 05490 ( VALVE, PLUG ) |
Drawings & Photos | NSN 4820-00-698-3317
Demand History | NSN 4820-00-698-3317
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 201P6WC3 | 2020-12-364 | 1 | DIBBS |
| 4820-00-698-3317 | 2013-11-325 | 1 | DIBBS |
| 4820-00-698-3317 | 2011-03-76 | 1 | United States |
| 8169029 | 2011-03-74 | 1 | United States |
| 4820-00-698-3317 | 2008-12-351 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-698-3317
Technical Data | NSN 4820-00-698-3317
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

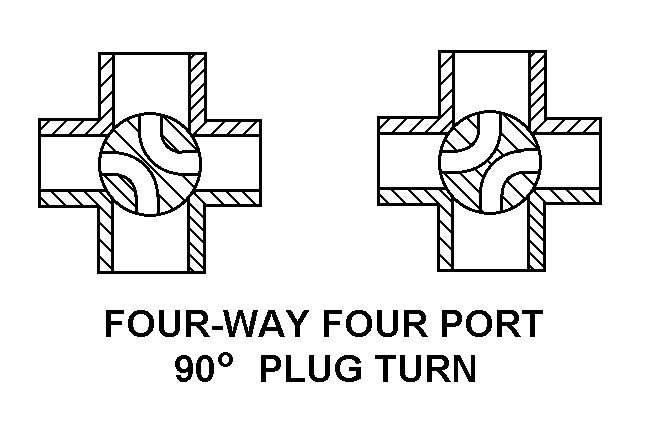

| FLOW STYLE | F27 FOUR-WAY FOUR PORT 90 DEGREE PLUG TURN |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 6000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | G9 PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.250 INCHES ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| MOUNTING FACILITY | THREADED FASTENER |
| FEATURES PROVIDED | NONADJUSTABLE ROTATION |
| SPECIAL FEATURES | CONTROL HEAD BONNET OF CAST IRON MATERIAL HOUSING,HANDLE ROTATES 45.0 DEG CCW TO AGREE W/FLOW PATTERN ARRANGEMENT,PLUG ROTATES 90.0 DEG W/OFF POSITION DETENT AT 45.0 DEG POSITION |
