Product Details | ANGLE VALVE
4820-00-812-6936 A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. The flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. It may be inline or cartridge (manifold) design. Excludes VALVE (1), Y; VALVE, STOP-CHECK; and COCK, SHUTOFF, SCREW STEM.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 226210, 2-262-10, 4707B14, 4707B1-4, 813623, 8-1362-3, 4820-00-812-6936, 00-812-6936, 4820008126936, 008126936
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1962 | 00-812-6936 | 05483 ( VALVE, ANGLE ) |

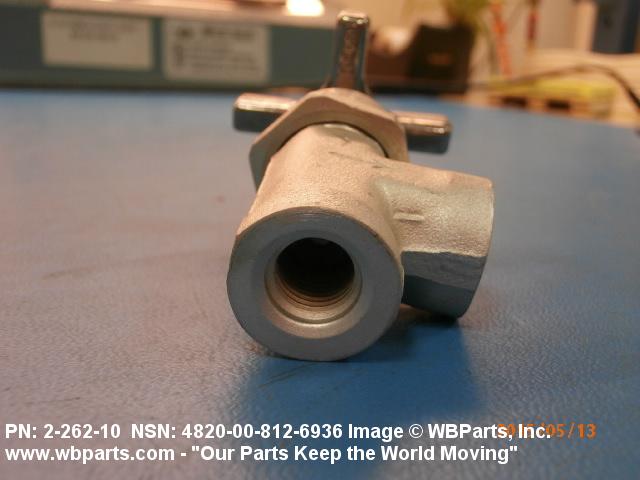

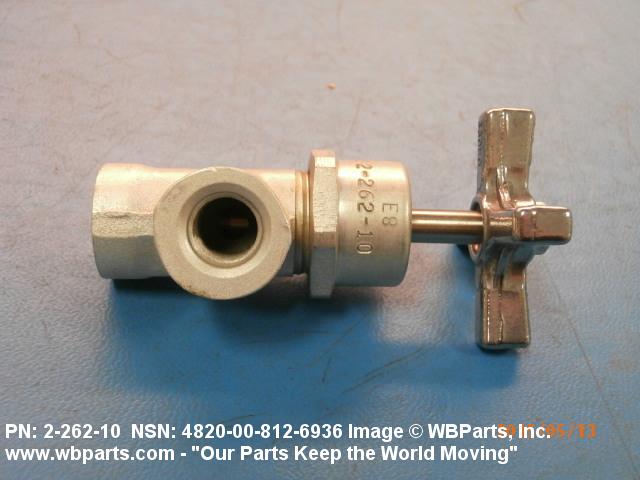

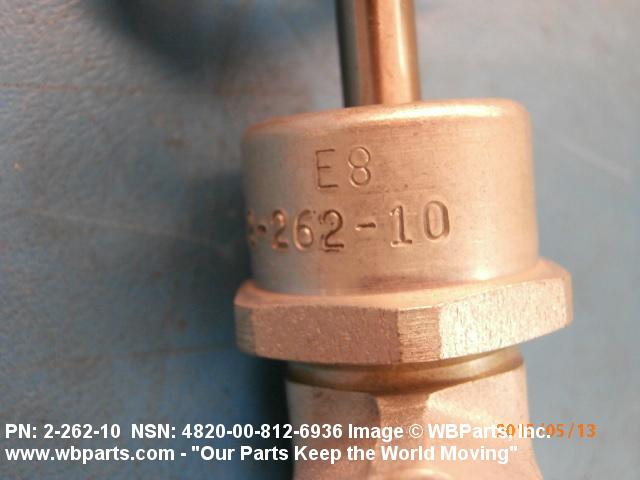

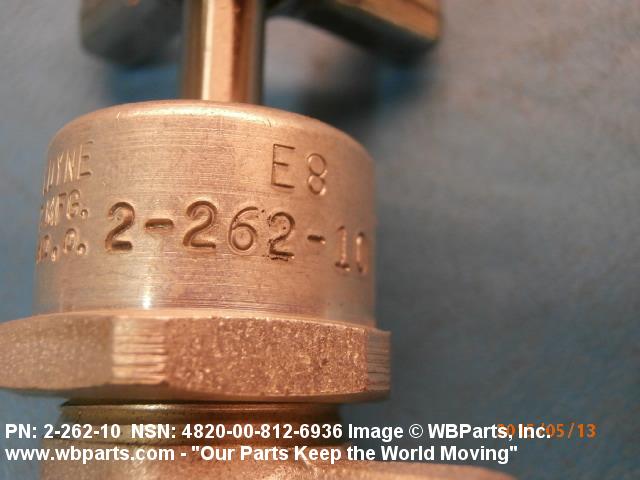

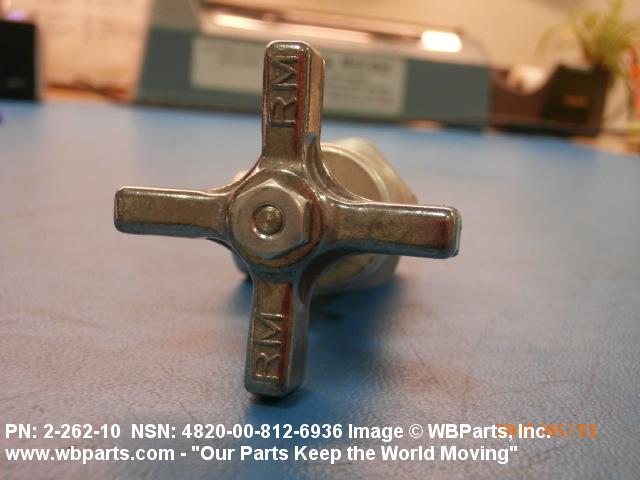

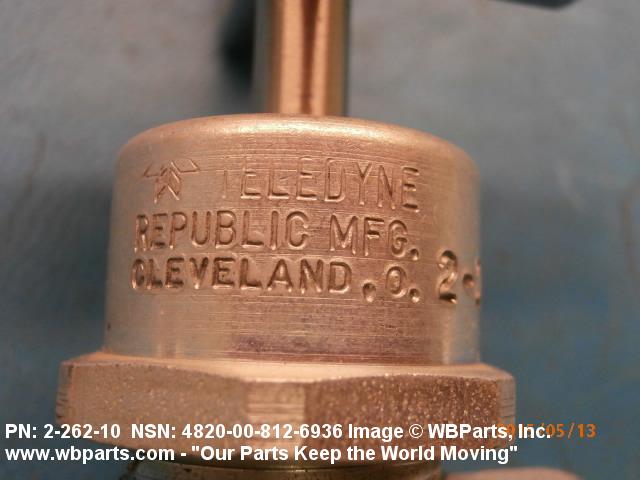

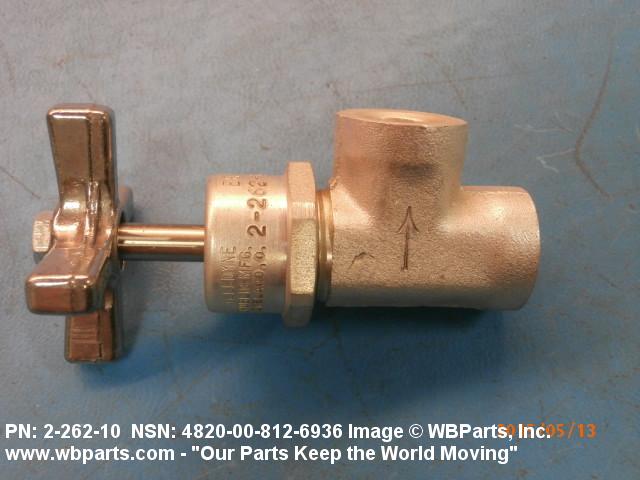

Drawings & Photos | NSN 4820-00-812-6936
Demand History | NSN 4820-00-812-6936
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4820-00-812-6936
4820-00-812-7035, 4820-00-812-7041, 4820-00-812-7266, 4820-00-812-7326, 4820-00-812-7328
Technical Data | NSN 4820-00-812-6936
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY STEEL CORROSION RESISTING FLOW CONTROL DEVICE STEEL SEAT STEEL CORROSION RESISTING STEM |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | A7 ANGLE |
| FLOW CONTROL DEVICE | NEEDLE |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 160.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED INTERNAL TUBE ALL ENDS |

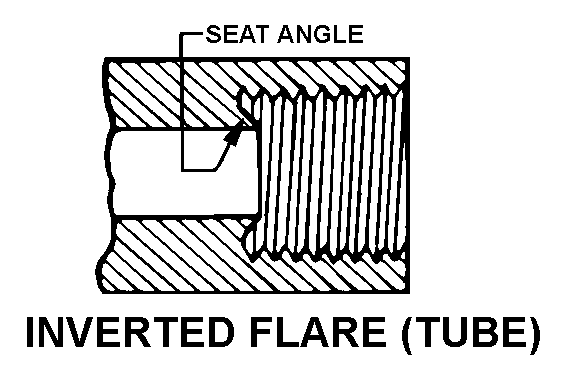

| CONNECTION STYLE | G10A INVERTED FLARE ALL ENDS |
| SEAT ANGLE | 30.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.437 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 20 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| BONNET TYPE | OUTSIDE SCREW-YOKE |
| BONNET ATTACHMENT METHOD | BOLTED |
| FEATURES PROVIDED | BONNET PACKING |
Restrictions/Controls & Freight Information | NSN 4820-00-812-6936
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
