NSN 4820-00-909-9577 1104272, 110427-2, 00-909-9577
Product Details | VALVE SEAT
4820-00-909-9577 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 1104272, 110427-2, 4820-00-909-9577, 00-909-9577, 4820009099577, 009099577
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1960 | 00-909-9577 | 22113 ( SEAT, VALVE ) |
Drawings & Photos | NSN 4820-00-909-9577
Cross Reference | NSN 4820-00-909-9577
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-909-9577
Related Products | NSN 4820-00-909-9577
Technical Data | NSN 4820-00-909-9577
| Characteristic | Specifications |
|---|---|

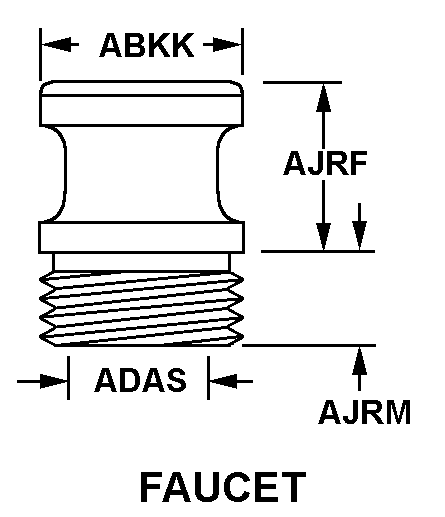

| STYLE DESIGNATOR | A3A FAUCET |
| FLANGE DIAMETER | 0.579 INCHES MINIMUM AND 0.584 INCHES MAXIMUM |
| FLANGE SEAT TO DISK END HEIGHT | 0.205 INCHES MINIMUM AND 0.215 INCHES MAXIMUM |
| UNDER FLANGE HEIGHT | 0.910 INCHES NOMINAL |
| BODY STEPPED INSIDE DIAMETER | 0.117 INCHES MINIMUM AND 0.118 INCHES MAXIMUM FIRST STEP 0.200 INCHES MINIMUM AND 0.205 INCHES MAXIMUM SECOND STEP 0.311 INCHES MINIMUM AND 0.317 INCHES MAXIMUM THIRD STEP 0.339 INCHES MINIMUM AND 0.343 INCHES MAXIMUM FOURTH STEP |
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7720 COND B MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 35.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| SEATING SURFACE SHAPE | FLAT |
| THREAD SERIES DESIGNATOR | UNS SINGLE THREADED PORTION |
| NOMINAL THREAD SIZE | 0.625 INCHES SINGLE THREADED PORTION |
| THREAD QUANTITY PER INCH | 36 SINGLE THREADED PORTION |
| (NON-CORE DATA) THREAD PITCH DIAMETERS IN INCHES | 0.6042 TO 0.6070 SINGLE THREADED PORTION |
| THREAD LENGTH | 0.650 INCHES NOMINAL SINGLE THREADED PORTION |
| MANUFACTURERS CODE | 59364 |
| DESIGN CONTROL REFERENCE | 110427-2 |
