NSN 4820-01-006-3143 010063143
Product Details | GAS CYLINDER VALVE
4820-01-006-3143 A valve specifically designed for the control of compressed or liquefied gases and legibly marked with name of gas for which designed. Inlet connection threads are coated with lead and/or tin to form a tight seal. A cap or plug is usually supplied to protect outlet connection threads and prevent leakage.
Part Alternates: 010063143
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01-006-3143 | 07848 ( VALVE, CYLINDER, GAS ) |
Drawings & Photos | NSN 4820-01-006-3143
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-006-3143
Technical Data | NSN 4820-01-006-3143
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A7 ANGLE |
| BODY MATERIAL | BRASS |
| OUTSIDE SURFACE TREATMENT | CADMIUM |
| FLOW CONTROL DEVICE | PLUG |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING |
| STEM MATERIAL | BRASS |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL GAS CYLINDER |

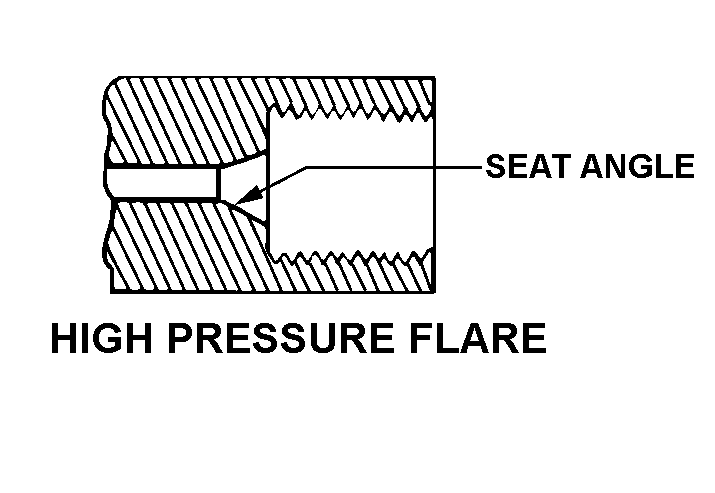

| FIRST END STYLE DESIGNATOR | G17 HIGH PRESSURE FLARE |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT ANGLE IN DEG | 30.0 |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL GAS CYLINDER |
| SECOND END STYLE DESIGNATOR | J6 PLAIN |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| VALVE OPERATION METHOD | LEVER OR WHEEL |
| MAXIMUM OPERATING PRESSURE | 4000.0 POUNDS PER SQUARE INCH |
| MEDIA FOR WHICH DESIGNED | NITROGEN |
| TEMP RATING | NOT RATED |
| SPECIAL MARKINGS | OPEN |
| SPECIAL FEATURES | W/GAGE |
Restrictions/Controls & Freight Information | NSN 4820-01-006-3143
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
