Product Details | SPECIAL SHAPED VALVE DIAPHRAGM

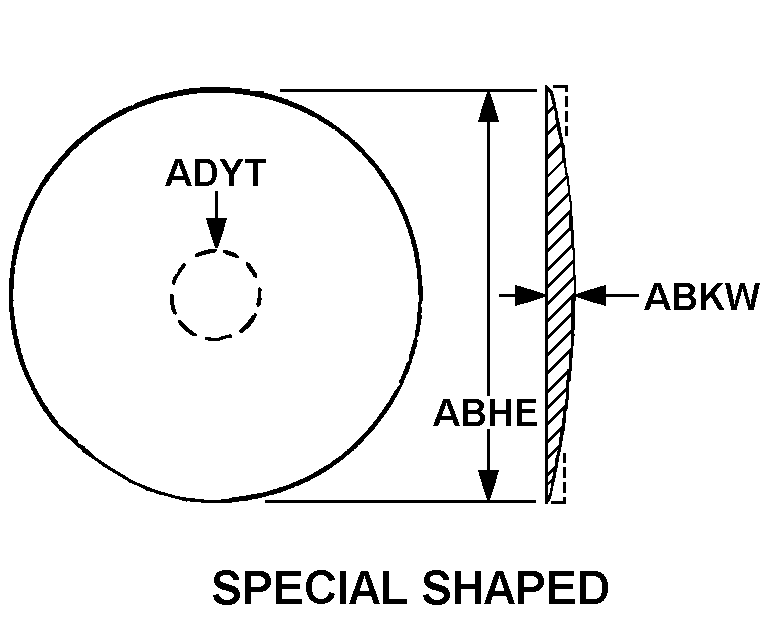

4820-01-023-9627 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.20529100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers42200038Marine Lifesaving and Diving Equipment48100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 07310016, 0731-0016, 4820-01-023-9627, 01-023-9627, 4820010239627, 010239627
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 02 JUL 1976 | 01-023-9627 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |
Drawings & Photos | NSN 4820-01-023-9627
Demand History | NSN 4820-01-023-9627
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 07310016 | 2012-11-319 | 3 | South Korea |
Cross Reference | NSN 4820-01-023-9627
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0731-0016 | 63026 | VICTOR EQUIPMENT CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-023-9627
Technical Data | NSN 4820-01-023-9627
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 54 SPECIAL SHAPED |
| OUTSIDE DIAMETER | 3.371 INCHES NOMINAL |
| OVERALL HEIGHT | 0.010 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.315 INCHES NOMINAL |
| MANUFACTURERS CODE | 63026 |
| DESIGN CONTROL REFERENCE | 0731-0016 |
