NSN 4820-01-044-5931 10735, 1073513, 10735-13
Product Details | FOOT VALVE
4820-01-044-5931 A valve used on the free end of a suction line permitting flow in only one direction. It is always equipped with a strainer at the inlet end. See also VALVE, CHECK.
Part Alternates: 10735, 1073513, 10735-13, 25677, 4820-01-044-5931, 01-044-5931, 4820010445931, 010445931
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 17 JUL 1977 | 01-044-5931 | 13762 ( VALVE, FOOT ) |
Drawings & Photos | NSN 4820-01-044-5931
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-044-5931
Related Products | NSN 4820-01-044-5931
Technical Data | NSN 4820-01-044-5931
| Characteristic | Specifications |
|---|---|
| BODY STYLE | F1 CYLINDRICAL |
| BODY OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| OUTSIDE SURFACE TREATMENT | PASSIVATED |
| FLOW CONTROL DEVICE | BALL |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING |
| END CONNECTION QUANTITY | 1 |
| FIRST END CONNECTION TYPE | UNTHREADED EXTERNAL HOSE |

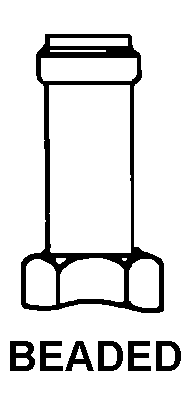

| FIRST END STYLE DESIGNATOR | K4 BEADED |
| FIRST END OUTSIDE DIAMETER HOSE ACCOMMODATED | ANY ACCEPTABLE |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| TEMP RATING | NOT RATED |
| VALVE LOADING SPRING LOCATION | INTERNAL |
| FURNISHED ITEMS | FILTER SCREEN |
Restrictions/Controls & Freight Information | NSN 4820-01-044-5931
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-044-5931
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
