NSN 4820-01-065-3319 4586S276, 458-6S27-6, 01-065-3319
Product Details | CHECK VALVE
4820-01-065-3319 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: 4586S276, 458-6S27-6, 4820-01-065-3319, 01-065-3319, 4820010653319, 010653319
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 15 SEP 1978 | 01-065-3319 | 05487 ( VALVE, CHECK ) |

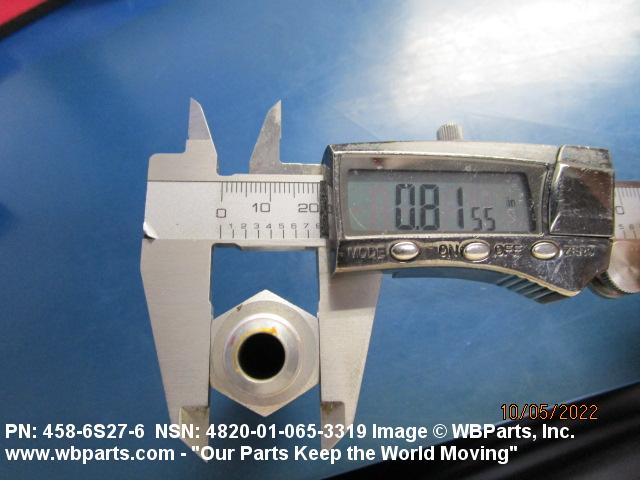

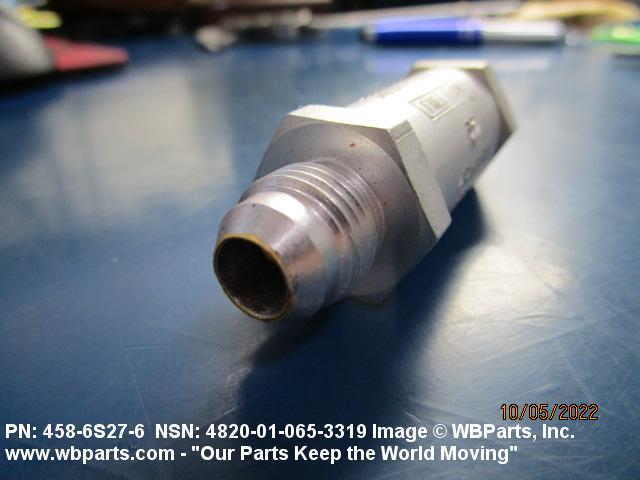

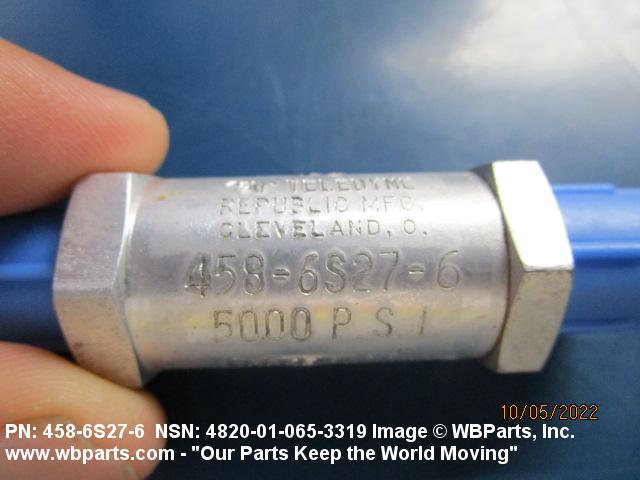

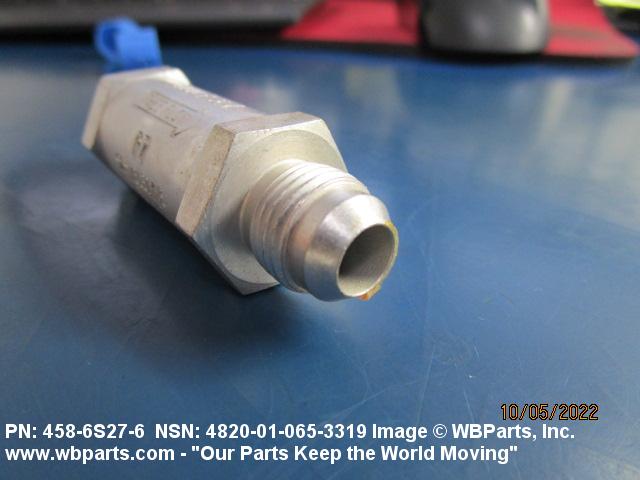

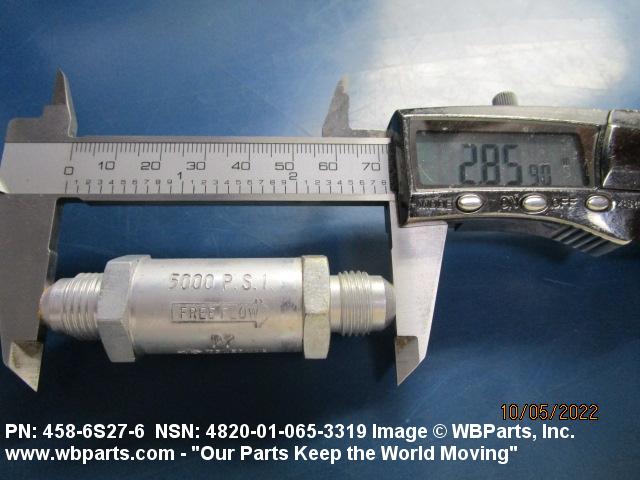

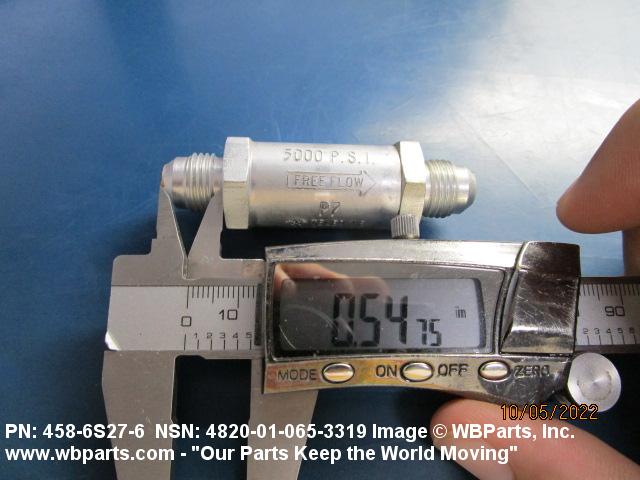

Drawings & Photos | NSN 4820-01-065-3319
Demand History | NSN 4820-01-065-3319
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-065-3319 | 2022-09-257 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-065-3319
Technical Data | NSN 4820-01-065-3319
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY STEEL CORROSION RESISTING FLOW CONTROL DEVICE |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | A3 STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| MEDIA FOR WHICH DESIGNED | OIL, HYDRAULIC SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 5000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 300.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL BOSS 1ST END |
| CONNECTION STYLE | B43 EXTERNAL SEAT FOR GASKET SEAL 1ST END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END |
| NOMINAL THREAD SIZE | 0.562 INCHES 1ST END |
| THREAD CLASS | 3A 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| DISK LOADING METHOD | SPRING |
| MANUFACTURERS CODE | 09990 |
| DESIGN CONTROL REFERENCE | 458-6S27-6 |
Restrictions/Controls & Freight Information | NSN 4820-01-065-3319
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
