NSN 4820-01-073-1544 VTS44, VTS4-4, 40396
Product Details | PNEUMATIC TANK VALVE
4820-01-073-1544 A valve, designed for attachment to pressure tanks and/or mechanical equipment for the purpose of permitting an increase, decrease, and the gaging of pressure (similar to tire valves) within a confining chamber carrying compressed air, gases or oil.
Part Alternates: VTS44, VTS4-4, 40396, 4820-01-073-1544, 01-073-1544, 4820010731544, 010731544
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 10 MAR 1979 | 01-073-1544 | 06509 ( VALVE, PNEUMATIC TANK ) |
Drawings & Photos | NSN 4820-01-073-1544
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-073-1544
Related Products | NSN 4820-01-073-1544
Technical Data | NSN 4820-01-073-1544
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A2 TEE |
| BODY MATERIAL | BRASS |
| SEAT MATERIAL | POLYAMIDE NYLON |
| FLOW CONTROL DEVICE | CORE |
| END CONNECTION QUANTITY | 3 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |

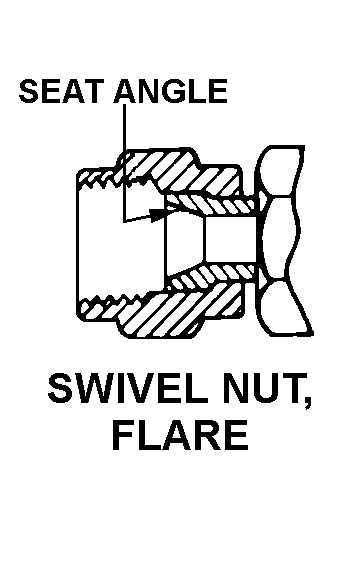

| FIRST END STYLE DESIGNATOR | G1 SWIVEL NUT, FLARE |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES NOMINAL |
| FIRST END THREAD CLASS | 2B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT ANGLE IN DEG | 45.0 |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL TUBE |

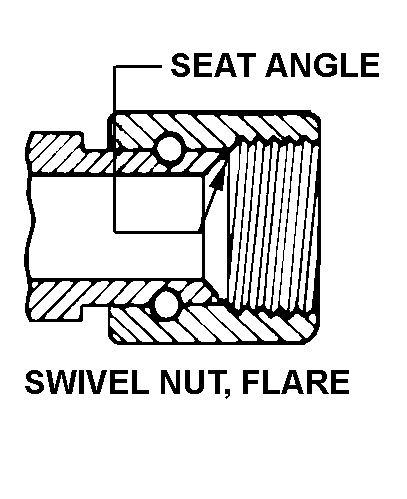

| SECOND END STYLE DESIGNATOR | G3 SWIVEL NUT, FLARE |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES NOMINAL |
| SECOND END THREAD CLASS | 3A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END SEAT ANGLE IN DEG | 37.0 |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH SECOND END |
| TEMP RATING | -65.0 DEG FAHRENHEIT 450.0 DEG FAHRENHEIT |
| SPECIAL FEATURES | VALVE CORE LOCATED IN MALE FLARE BRANCH CONNECTION |
Restrictions/Controls & Freight Information | NSN 4820-01-073-1544
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
