NSN 4820-01-075-9848 5H0953, 5H095-3, 01-075-9848
Product Details | VACUUM BREAKING VALVE
4820-01-075-9848 An item designed to automatically relieve vacuum, by the intake of air, when the internal pressure falls below atmospheric pressure. See also VALVE, VACUUM REGULATING.
Part Alternates: 5H0953, 5H095-3, 4820-01-075-9848, 01-075-9848, 4820010759848, 010759848
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 30 APR 1979 | 01-075-9848 | 08101 ( VALVE, VACUUM BREAKING ) |
Drawings & Photos | NSN 4820-01-075-9848
Cross Reference | NSN 4820-01-075-9848
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5H095-3 | 22915 | NORTHROP GRUMMAN CORP ELECTRONIC SYSTEMS DEFENSIVE SYSTEM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-075-9848
Related Products | NSN 4820-01-075-9848
Technical Data | NSN 4820-01-075-9848
| Characteristic | Specifications |
|---|---|
| BODY STYLE | B1 SINGLE CONNECTION, STRAIGHT FLOW |
| BODY MATERIAL | ALUMINUM ALLOY |
| OUTSIDE SURFACE TREATMENT | ANODIZED |
| FLOW CONTROL DEVICE | POPPET |
| FLOW CONTROL DEVICE MATERIAL | ALUMINUM ALLOY AND RUBBER |
| END CONNECTION QUANTITY | 1 |
| FIRST END CONNECTION TYPE | PLAIN FACE FLANGE |

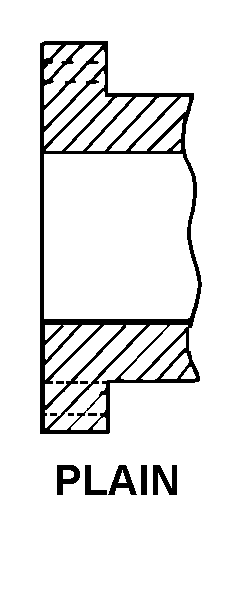

| FIRST END STYLE DESIGNATOR | M1 PLAIN |

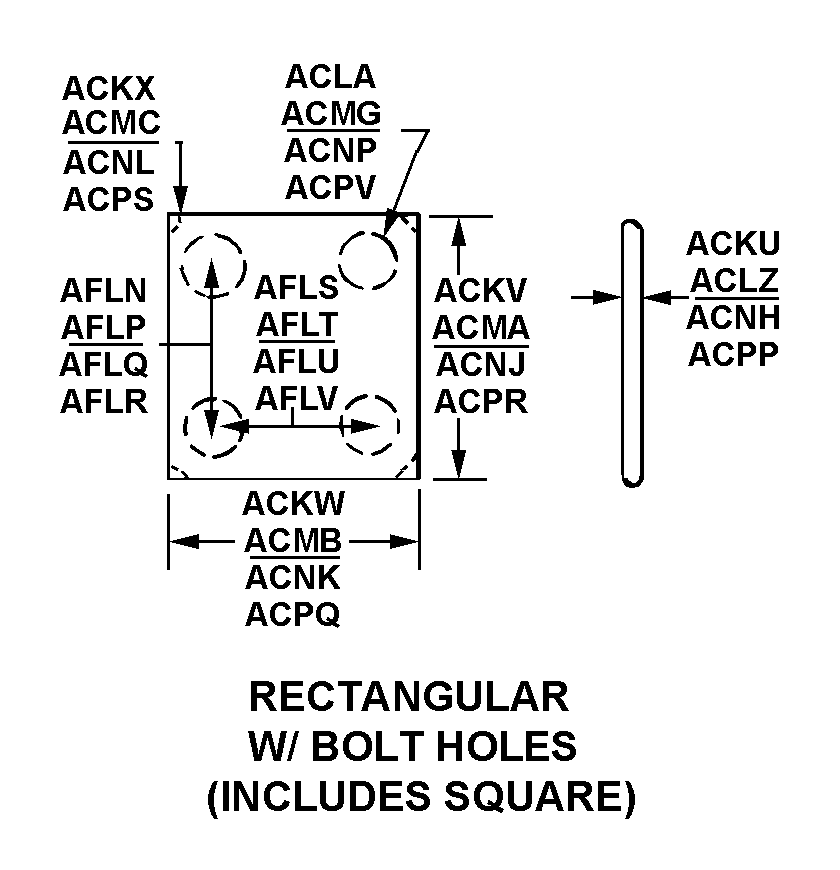

| FIRST END FLANGE SHAPE STYLE | 4 RECTANGULAR |
| FIRST END BOLT HOLE QUANTITY | 4 |
| FIRST END FLANGE THICKNESS | 0.188 INCHES NOMINAL |
| FIRST END FLANGE LENGTH | 2.125 INCHES NOMINAL |
| FIRST END FLANGE WIDTH | 2.125 INCHES NOMINAL |
| FIRST END FLANGE END RADIUS | 0.031 INCHES NOMINAL |
| FIRST END BOLT HOLE DIAMETER | 0.190 INCHES NOMINAL |
| FIRST END CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG LENGTH | 1.750 INCHES NOMINAL |
| FIRST END CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG WIDTH | 1.750 INCHES NOMINAL |
| TEMP ADJUSTABILITY | NOT ADJUSTABLE |
| MEDIA FOR WHICH DESIGNED | AIR |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 4820-01-075-9848
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
