NSN 4820-01-088-5991 P-585T-1.000, P585T1000, 11668096-1
Product Details | GLOBE VALVE
4820-01-088-5991 A valve with one inlet and one outlet connection with outlet flow parallel to inlet flow. The flow is controlled by the action of a stem which lifts the disk perpendicularly off the center axis of its seat. The stem is at a 90 degree (1.5708 radians) angle to axis of flow. Excludes VALVE, STOP-CHECK; COCK, SHUTOFF, SCREW STEM; and VALVE, SOLENOID.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: P-585T-1.000, P585T1000, 11668096-1, 585T100, 585T-100, 585T-700 1, 585T-700 100 , 585T7001, 585T700100, 4820-01-088-5991, 01-088-5991, 4820010885991, 116680961, 010885991
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 16 JAN 1980 | 01-088-5991 | 05485 ( VALVE, GLOBE ) |

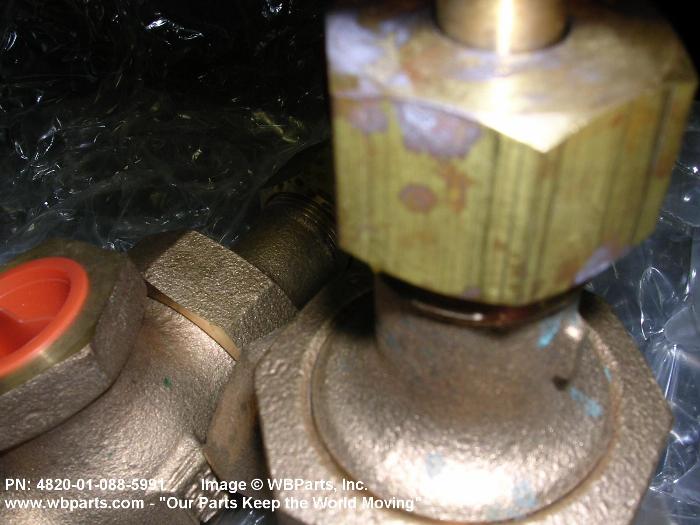

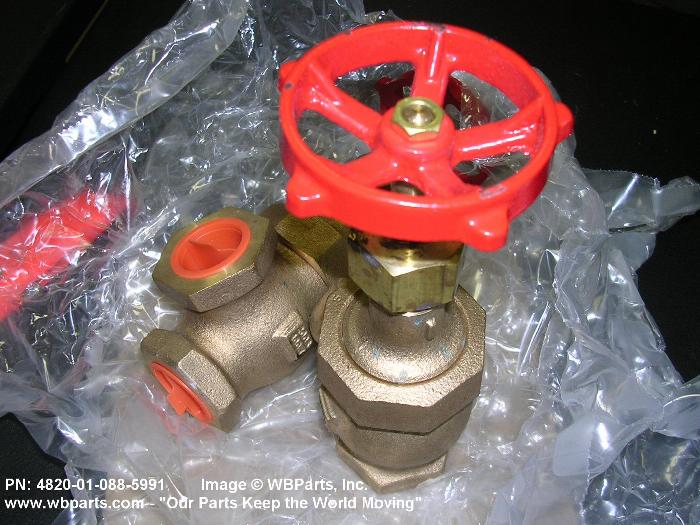

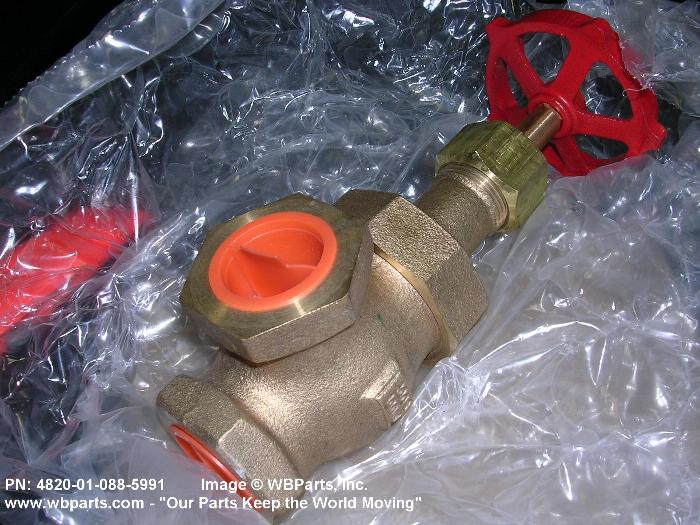

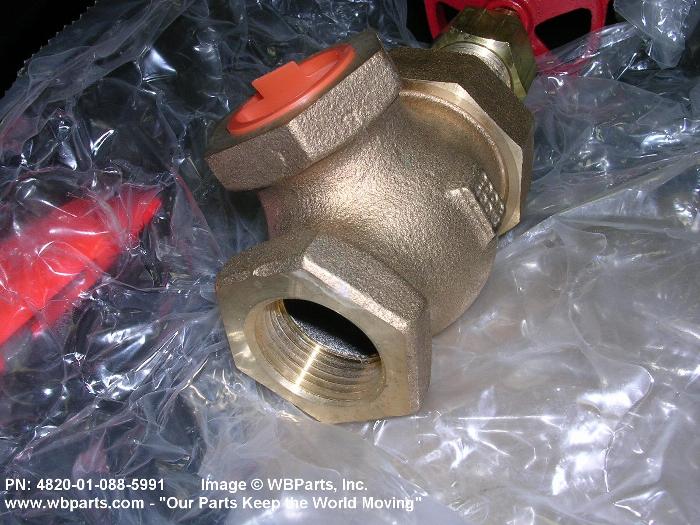

Drawings & Photos | NSN 4820-01-088-5991
Demand History | NSN 4820-01-088-5991
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 585T-700 100 | 2020-11-310 | 51 | DIBBS |
| 585T-700 100 | 2019-02-52 | 61 | DIBBS |
| 4820-01-088-5991 | 2017-12-337 | 41 | DIBBS |
| 4820-01-088-5991 | 2017-10-299 | 1 | DIBBS-RFPs |
| 4820-01-088-5991 | 2014-02-45 | 72 | DIBBS |
| 4820-01-088-5991 | 2014-01-30 | 72 | DIBBS |
| 4820-01-088-5991 | 2013-10-283 | 3 | DIBBS |
| 4820-01-088-5991 | 2013-09-268 | 3 | DIBBS |
| 4820-01-088-5991 | 2010-12-350 | 38 | DIBBS |
| 4820-01-088-5991 | 2010-05-144 | 44 | DIBBS |
| 4820-01-088-5991 | 2008-04-106 | 2 | Taiwan |
Cross Reference | NSN 4820-01-088-5991
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11668096-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 585T-100 | 76364 | MILWAUKEE VALVE COMPANY, INC. DBA HAMMOND |
| 585T-700 1 | 76364 | MILWAUKEE VALVE COMPANY, INC. DBA HAMMOND |
| 585T-700 100 | 76364 | MILWAUKEE VALVE COMPANY, INC. DBA HAMMOND |
| P-585T-1.000 | 76364 | MILWAUKEE VALVE COMPANY, INC. DBA HAMMOND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-088-5991
Related Products | NSN 4820-01-088-5991
Technical Data | NSN 4820-01-088-5991
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY |
| STYLE DESIGNATOR | A7 ANGLE |
| FLOW CONTROL DEVICE | DISK |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED INTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | G9 PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| NOMINAL THREAD SIZE | 1.000 INCHES ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | THREADED |
Restrictions/Controls & Freight Information | NSN 4820-01-088-5991
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | S | 60 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-088-5991
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | P | Other Automotive Categories |
| Weapons Systems/End Item or Homogeneous Group | PV | Semi-Trailer, Prime Mover, 5 ton |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
