NSN 4820-01-096-1630 3027905, 9801050, 98-01050
Product Details | CHECK VALVE
4820-01-096-1630 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: 3027905, 9801050, 98-01050, 4820-01-096-1630, 01-096-1630, 4820010961630, 010961630
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 14 JUN 1980 | 01-096-1630 | 05487 ( VALVE, CHECK ) |

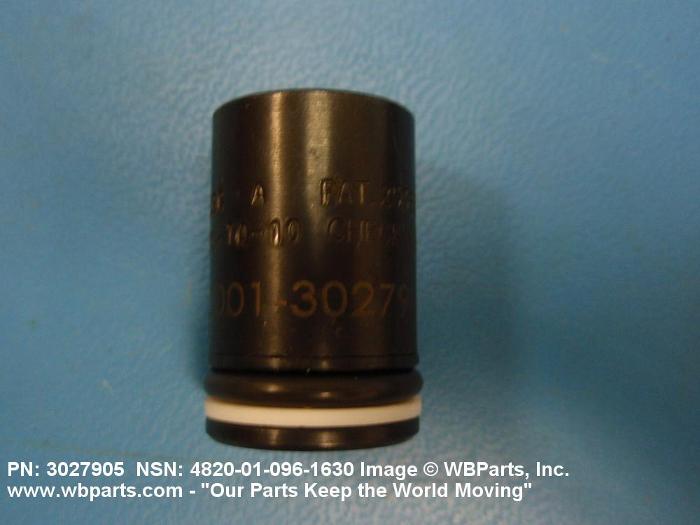

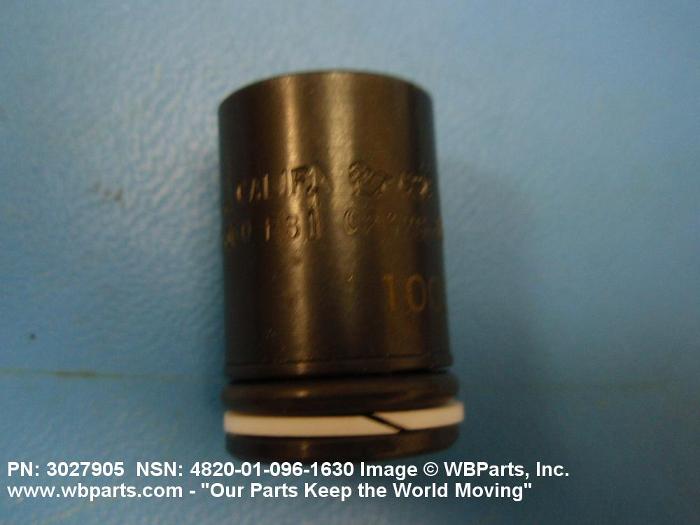

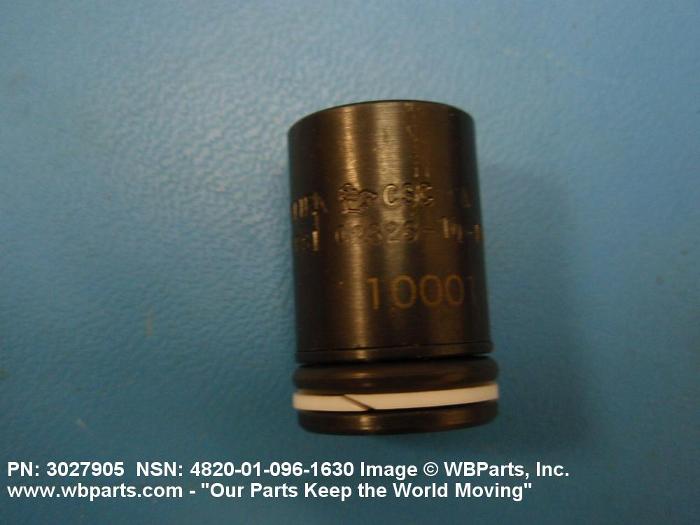

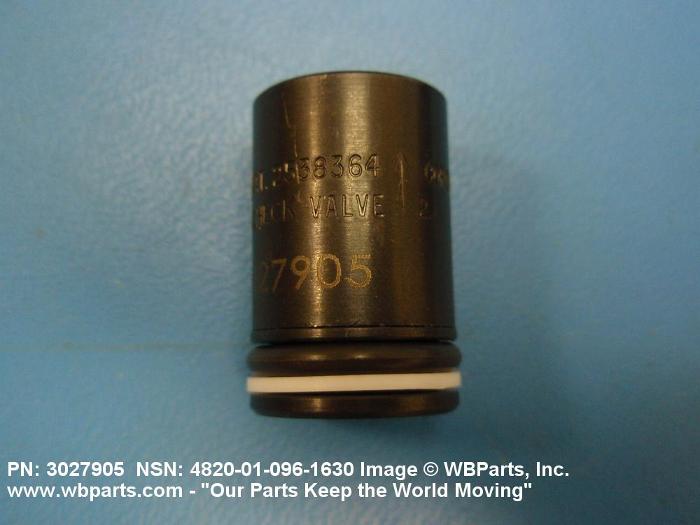

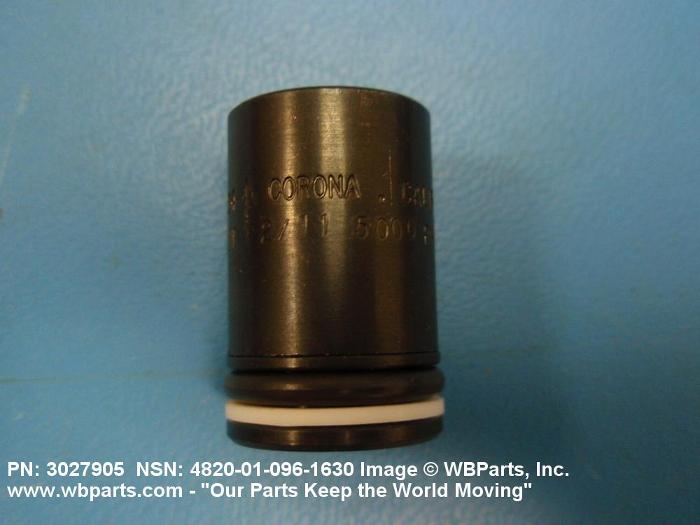

Drawings & Photos | NSN 4820-01-096-1630
Demand History | NSN 4820-01-096-1630
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-096-1630 | 2024-10-305 | 11 | DIBBS |
| 4820-01-096-1630 | 2018-10-283 | 20 | DIBBS |
| 4820-01-096-1630 | 2018-09-247 | 19 | DIBBS |
| 4820-01-096-1630 | 2018-04-119 | 7 | DIBBS |
| 4820-01-096-1630 | 2015-08-237 | 7 | DIBBS |
| 4820-01-096-1630 | 2014-12-357 | 2 | DIBBS |
| 4820-01-096-1630 | 2014-10-282 | 38 | DIBBS |
| 4820-01-096-1630 | 2014-08-239 | 2 | DIBBS |
| 4820-01-096-1630 | 2014-04-119 | 8 | DIBBS |
| 4820-01-096-1630 | 2014-02-55 | 35 | United States |
| 4820-01-096-1630 | 2013-12-343 | 15 | DIBBS |
| 4820-01-096-1630 | 2013-07-210 | 1 | United States |
| 9801050 | 2013-04-120 | 35 | United States |
| 4820-01-096-1630 | 2013-03-79 | 35 | United States |
| 4820-01-096-1630 | 2012-10-284 | 5 | US |
| 4820-01-096-1630 | 2012-03-69 | 2 | DIBBS |
| 4820-01-096-1630 | 2011-01-11 | 7 | United States |
| 4820-01-096-1630 | 2010-12-340 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-096-1630
Related Products | NSN 4820-01-096-1630
Technical Data | NSN 4820-01-096-1630
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |
| STYLE DESIGNATOR | A9 STRAIGHT THRU DROP-IN CARTRIDGE |
| FLOW CONTROL DEVICE | DISK |
| MAXIMUM OPERATING PRESSURE | 5000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | UNTHREADED CARTRIDGE ALL ENDS |
| CONNECTION STYLE | B61A GROOVED ALL ENDS |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| DISK LOADING METHOD | SPRING |
| SPECIAL FEATURES | CARTRIDGE TYPE |
Restrictions/Controls & Freight Information | NSN 4820-01-096-1630
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-096-1630
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
