NSN 4820-01-105-8984 332B2A, 332B-2A, 704415
Product Details | PLUG VALVE
4820-01-105-8984 A valve designed to control the flow of a fluid by the rotation of a ported plug or plug sector within a suitable ported seat. The plug requires lubrication for ease of operation or contains a bonded composition seal(s). See also VALVE, SEATLESS and COCK, PLUG.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 332B2A, 332B-2A, 704415, 7044-15, 4820-01-105-8984, 01-105-8984, 4820011058984, 011058984
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 07 JAN 1981 | 01-105-8984 | 05490 ( VALVE, PLUG ) |
Drawings & Photos | NSN 4820-01-105-8984
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-105-8984
Technical Data | NSN 4820-01-105-8984
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRONZE BODY |

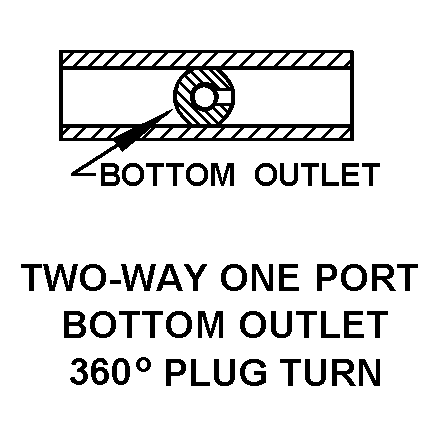

| FLOW STYLE | F5 TWO-WAY ONE PORT BOTTOM OUTLET 360 DEGREE PLUG TURN |
| MAXIMUM OPERATING PRESSURE | 125.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 200.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END THREADED EXTERNAL TUBE 3RD END |
| CONNECTION STYLE | G45 FLARELESS 1ST END G45 FLARELESS 2ND END G45 FLARELESS 3RD END |
| SEAT ANGLE | 12.5 DEGREES 1ST END 12.5 DEGREES 2ND END 12.5 DEGREES 3RD END |
| THREAD SERIES DESIGNATOR | UNF 1ST END UNF 2ND END UNF 3RD END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END 0.438 INCHES 2ND END 0.438 INCHES 3RD END |
| THREAD CLASS | 2A 1ST END 2A 2ND END 2A 3RD END |
| THREAD DIRECTION | RIGHT-HAND 1ST END RIGHT-HAND 2ND END RIGHT-HAND 3RD END |
Restrictions/Controls & Freight Information | NSN 4820-01-105-8984
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-105-8984
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
