NSN 4820-01-141-4150 M-3/8, M38, 01-141-4150
Product Details | SADDLE VALVE
4820-01-141-4150 A valve with an outlet end connection, straight thru or at an angle. The flow of liquid or gases may be controlled by the action of stem which lifts the disks perpendicularly off the center axis of its seat or by rotation of a suitable ported seat. This valve has a connection facility which is saddled over a line and bolted, may be line drilled or line self piercing.
Part Alternates: M-3/8, M38, 4820-01-141-4150, 01-141-4150, 4820011414150, 011414150
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 28 OCT 1982 | 01-141-4150 | 35934 ( VALVE, SADDLE ) |
Drawings & Photos | NSN 4820-01-141-4150
Demand History | NSN 4820-01-141-4150
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M38 | 2015-04-96 | 570 | US |
| M38 | 2015-04-96 | 750 | US |
Cross Reference | NSN 4820-01-141-4150
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M-3/8 | 53104 | C AND D VALVE MFG CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-141-4150
Technical Data | NSN 4820-01-141-4150
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY |

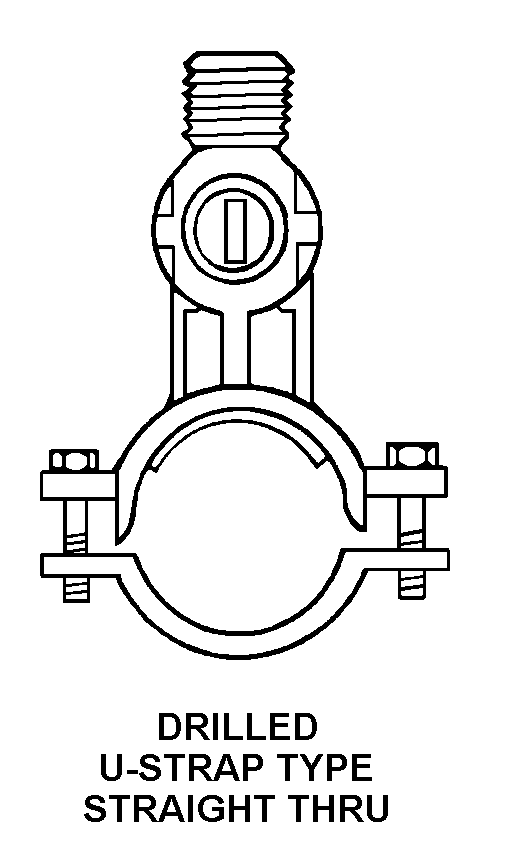

| STYLE DESIGNATOR | E2 DRILLED U-STRAP TYPE STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | G26 PLAIN ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES ALL ENDS |
| FURNISHED ITEMS AND QUANTITY | 1 DEFLECTOR CAP AND 1 GASKET |
Restrictions/Controls & Freight Information | NSN 4820-01-141-4150
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
