NSN 4820-01-145-1012 73396, 01-145-1012, 011451012
Product Details | GLOBE VALVE
4820-01-145-1012 A valve with one inlet and one outlet connection with outlet flow parallel to inlet flow. The flow is controlled by the action of a stem which lifts the disk perpendicularly off the center axis of its seat. The stem is at a 90 degree (1.5708 radians) angle to axis of flow. Excludes VALVE, STOP-CHECK; COCK, SHUTOFF, SCREW STEM; and VALVE, SOLENOID.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 73396, 4820-01-145-1012, 01-145-1012, 4820011451012, 011451012
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01-145-1012 | 05485 ( VALVE, GLOBE ) |

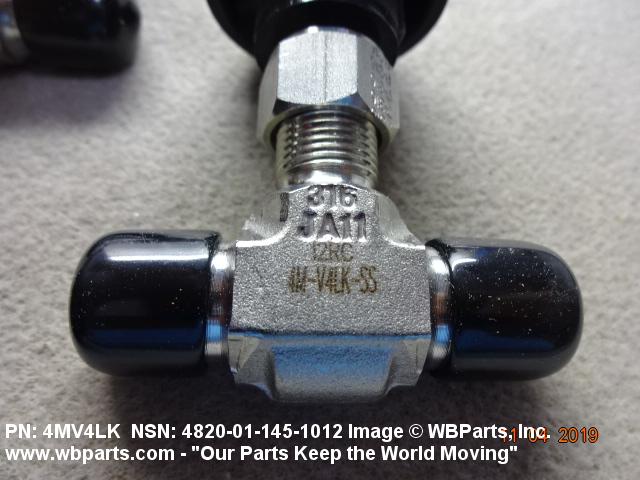

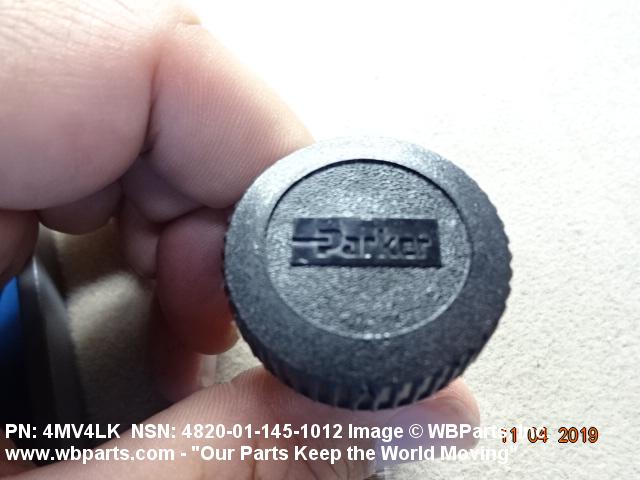

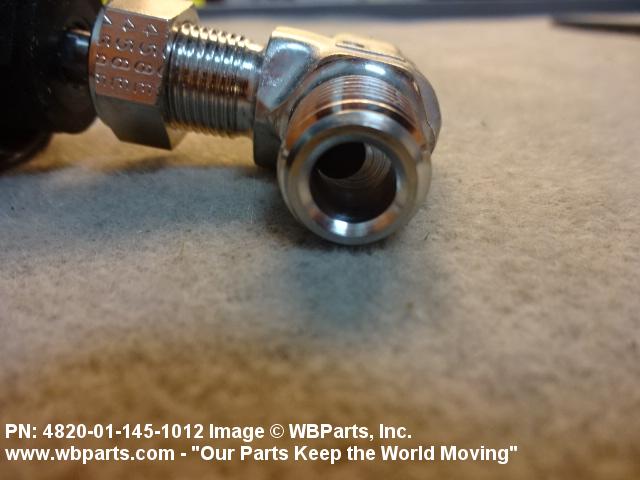

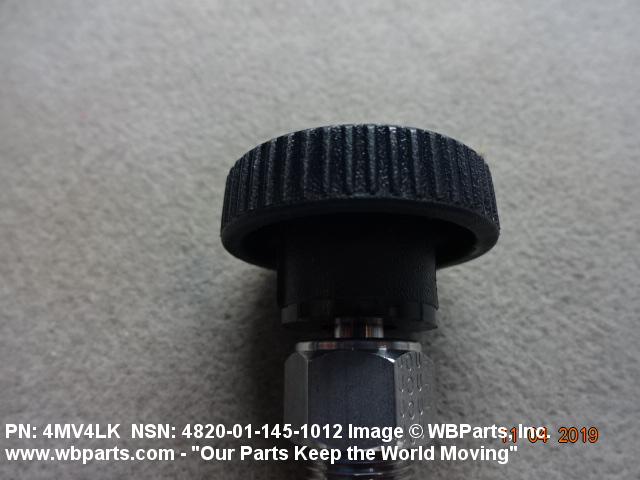

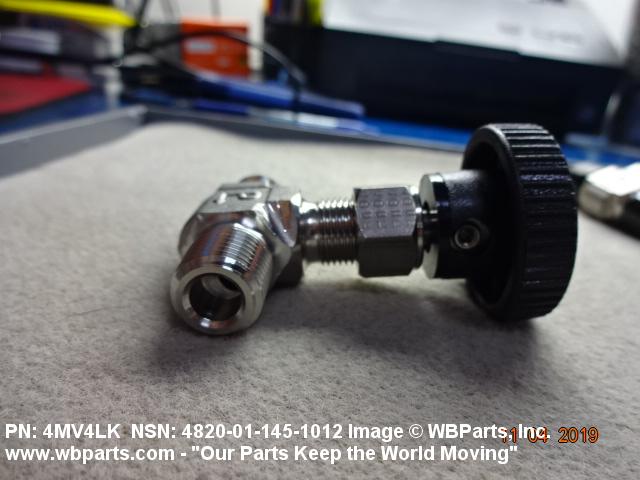

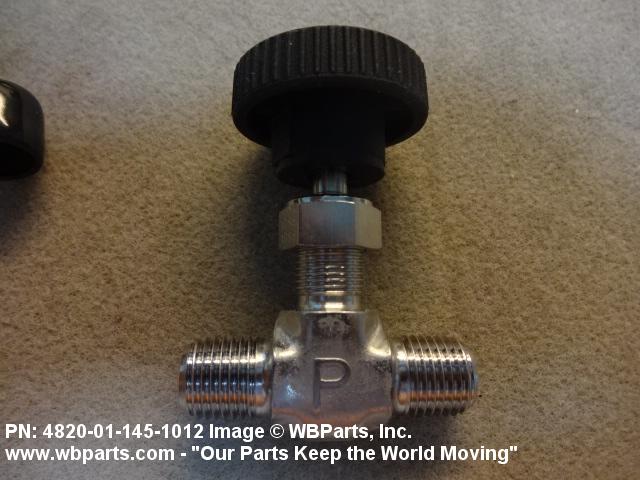

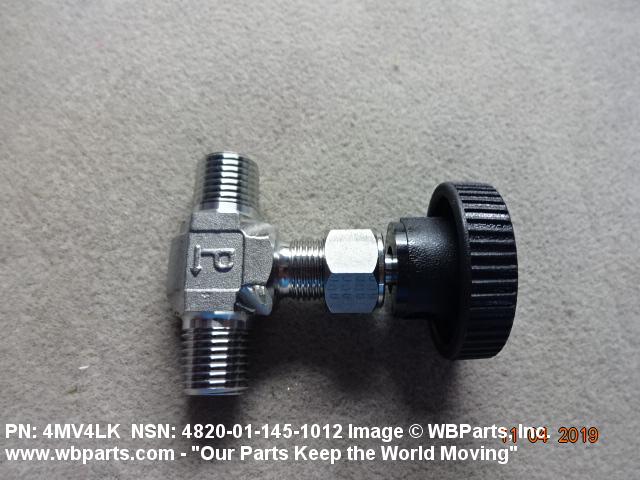

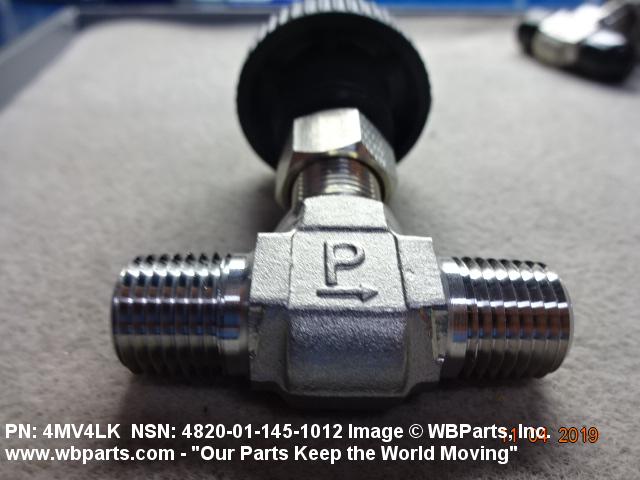

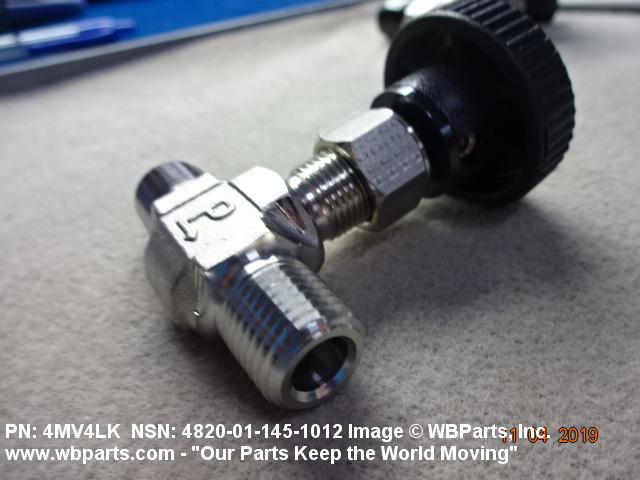

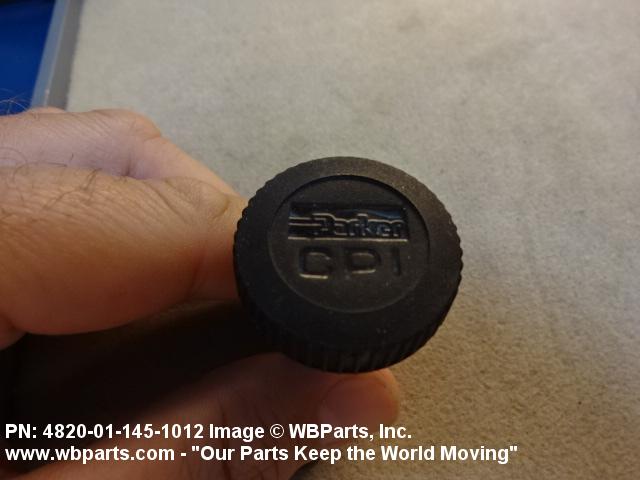

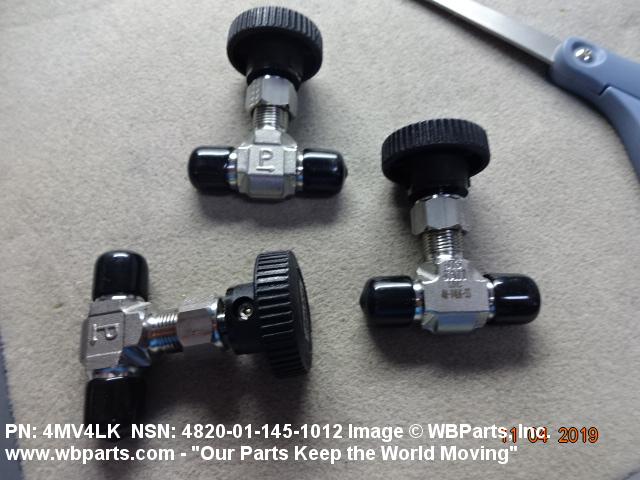

Drawings & Photos | NSN 4820-01-145-1012
Demand History | NSN 4820-01-145-1012
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-145-1012 | 2020-09-258 | 8 | US |
| 4820-01-145-1012 | 2020-09-255 | 1 | US |
| 4820-01-145-1012 | 2019-09-273 | 6 | United States |
| 4820-01-145-1012 | 2019-09-273 | 3 | United States |
| 4820-01-145-1012 | 2019-02-49 | 6 | United States |
| 4820-01-145-1012 | 2019-02-42 | 6 | us |
| 4820-01-145-1012 | 2019-02-42 | 6 | United States |
| 4820-01-145-1012 | 2010-02-36 | 5 | DIBBS |
| 4820-01-145-1012 | 2009-10-281 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-145-1012
Technical Data | NSN 4820-01-145-1012
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| FLOW CONTROL DEVICE | STEM |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED EXTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | G46B PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.250 INCHES ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | THREADED |
Restrictions/Controls & Freight Information | NSN 4820-01-145-1012
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
