Product Details | FLUID VALVE STEM
4820-01-185-4430 An item usually metallic, threaded or unthreaded, used for securing to or positioning into a mating part. It is designed to be used in a globe, relief, regulator valve and the like as a means of controlling the flow of liquids or gases in a given system. One end may have an integral disk or be designed to accommodate a metallic or nonmetallic disk. The other end is designed for a handwheel, lever, spring, diaphragm and the like for nonpowered operation or to accommodate a gear, solenoid, air motor and the like for powered operation. The handwheel and/or disk may be furnished with the item. Excludes STEM, FAUCET; and STEM, NEEDLE VALVE.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: N109331, N-10933-1, N10933-1 PIECE 10, N109331PIECE10, 4820-01-185-4430, 01-185-4430, 4820011854430, 011854430
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 29 JUL 1984 | 01-185-4430 | 32528 ( STEM, FLUID VALVE ) |

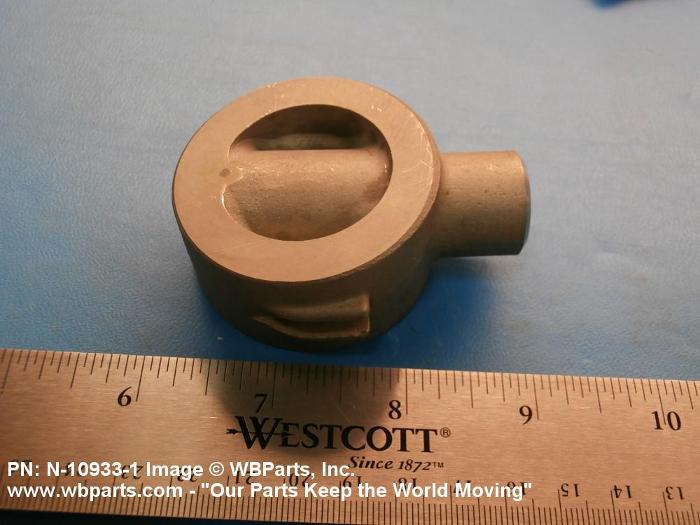

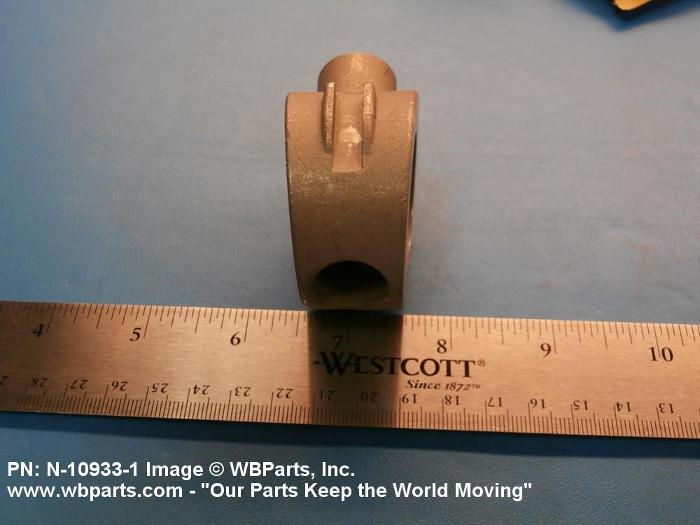

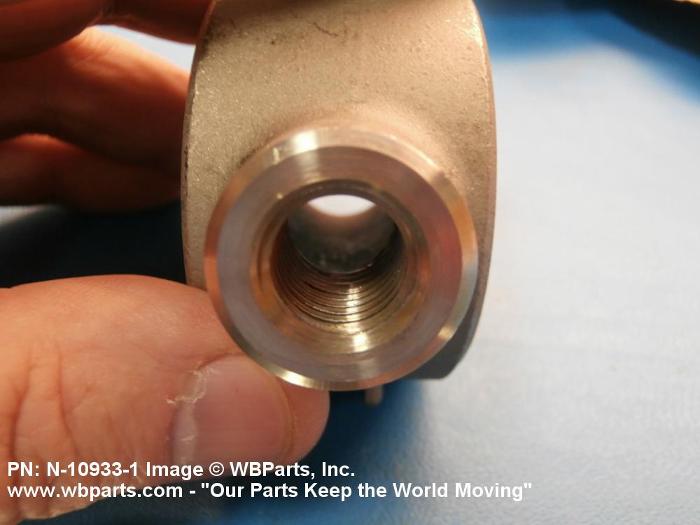

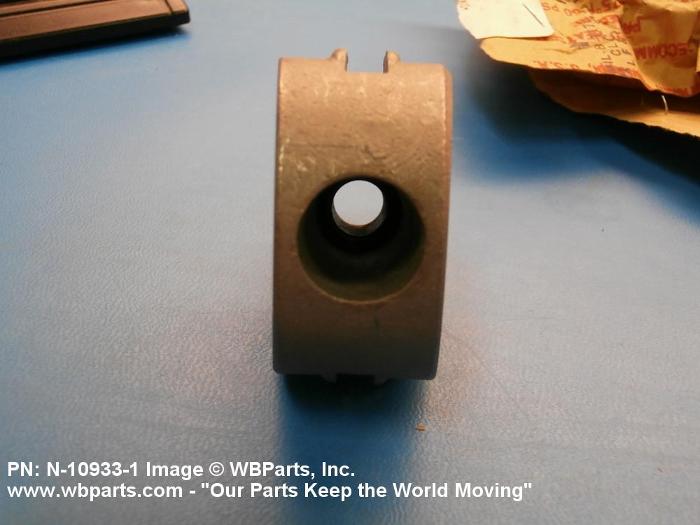

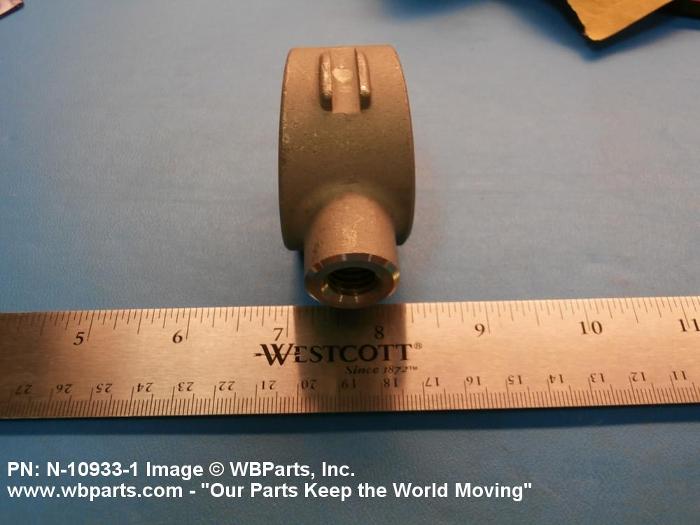

Drawings & Photos | NSN 4820-01-185-4430
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4820-01-185-4430
4820-01-185-4432, 4820-01-185-4439, 4820-01-185-4450, 4820-01-185-4468, 4820-01-185-4474
Technical Data | NSN 4820-01-185-4430
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY |
| LARGEST OUTSIDE DIAMETER | 0.575 INCHES NOMINAL |
| OVERALL LENGTH | 8.625 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4820-01-185-4430
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-185-4430
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
