NSN 4820-01-186-4719 68205564, 6820556-4, 01-186-4719
Product Details | VALVE SEAT
4820-01-186-4719 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 68205564, 6820556-4, 4820-01-186-4719, 01-186-4719, 4820011864719, 011864719
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 10 AUG 1984 | 01-186-4719 | 22113 ( SEAT, VALVE ) |

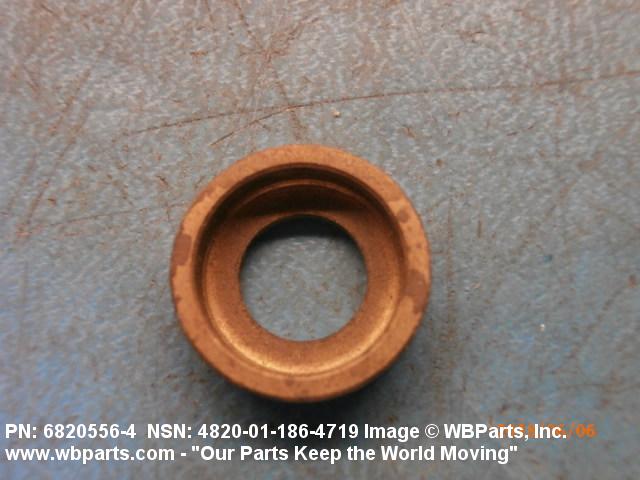

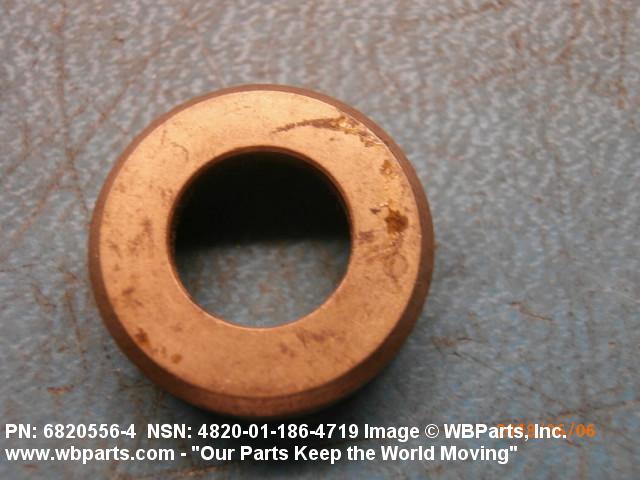

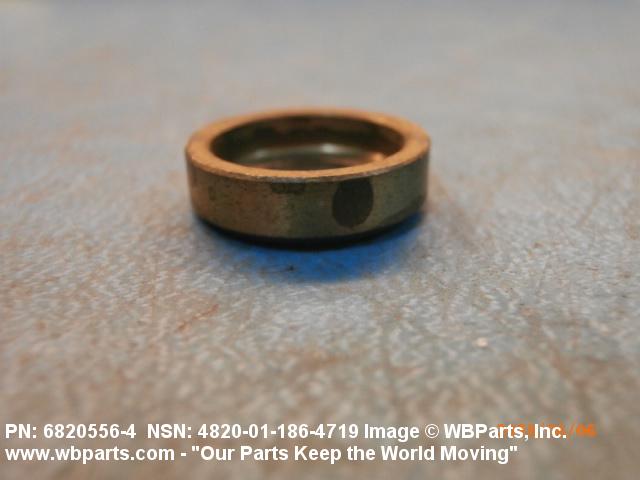

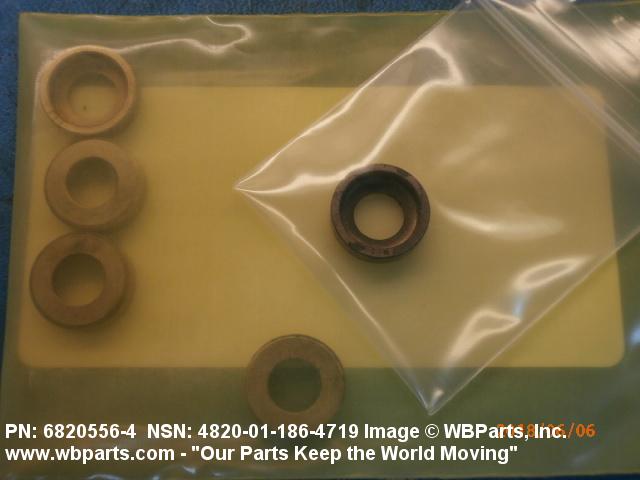

Drawings & Photos | NSN 4820-01-186-4719
Demand History | NSN 4820-01-186-4719
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 68205564 | 2018-05-137 | 5 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-186-4719
Technical Data | NSN 4820-01-186-4719
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B6 PLAIN |

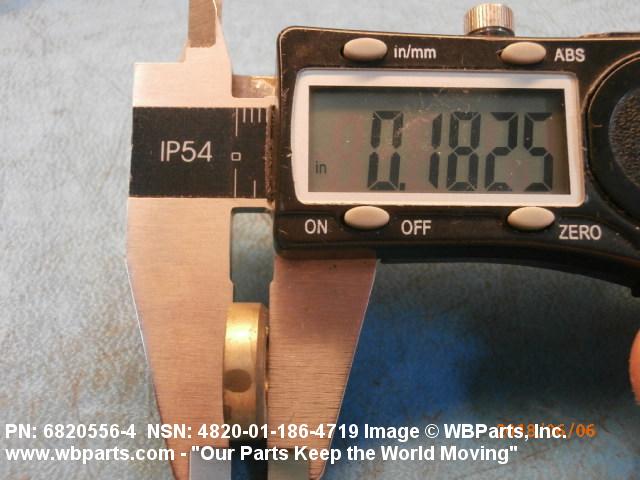

| OVERALL HEIGHT | 0.170 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |

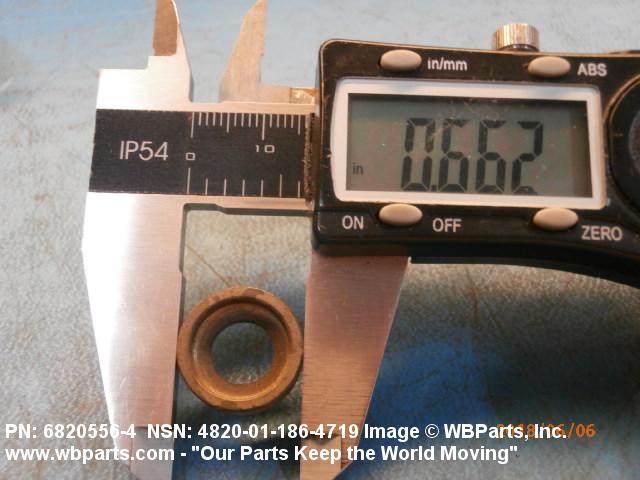

| BODY OUTSIDE DIAMETER | 0.662 INCHES MINIMUM AND 0.663 INCHES MAXIMUM |

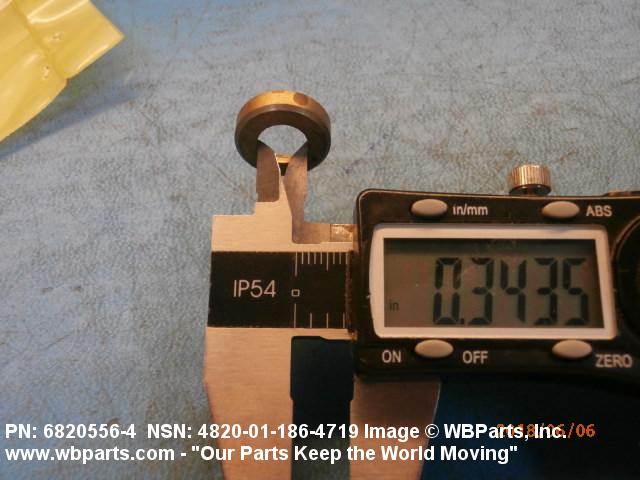

| BODY INSIDE DIAMETER | 0.344 INCHES MINIMUM AND 0.346 INCHES MAXIMUM |
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4640 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| SEATING SURFACE SHAPE | RADIAL |
| SEAT RADIUS | 0.218 INCHES NOMINAL |
| MANUFACTURERS CODE | 63005 |
| DESIGN CONTROL REFERENCE | 6820556-4 |
Restrictions/Controls & Freight Information | NSN 4820-01-186-4719
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
