NSN 4820-01-214-2314 SS65F16, SS-65F16, SS65TF16
Product Details | BALL VALVE
4820-01-214-2314 A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: SS65F16, SS-65F16, SS65TF16, SS-65TF16, VPB2A0, VPB2-A0, 0008008029, 000-8008-029, 13228E1786, 65TF16, 4820-01-214-2314, 01-214-2314, 4820012142314, 012142314
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 08 AUG 1985 | 01-214-2314 | 20962 ( VALVE, BALL ) |

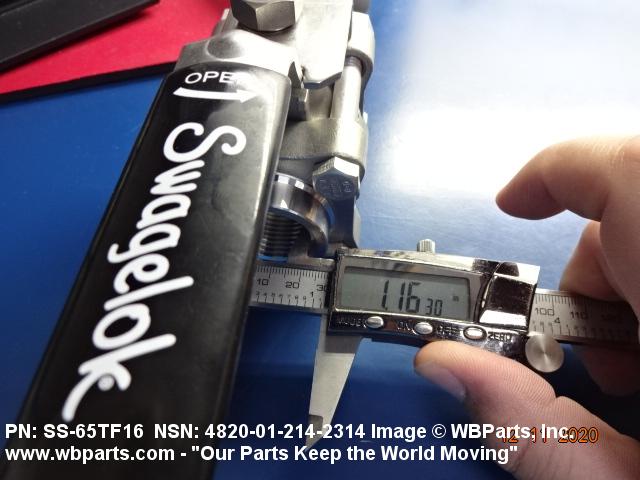

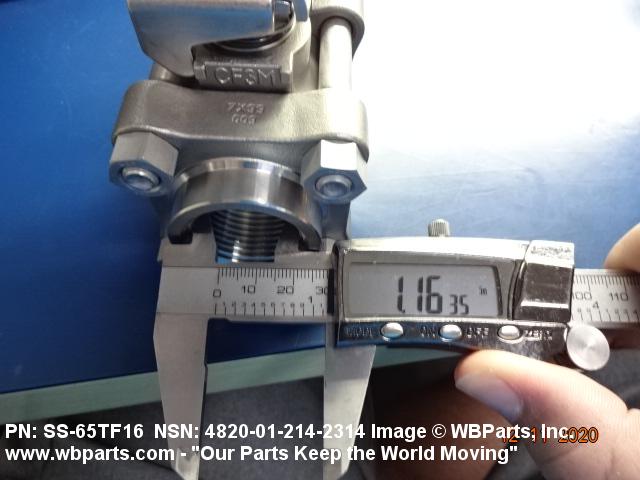

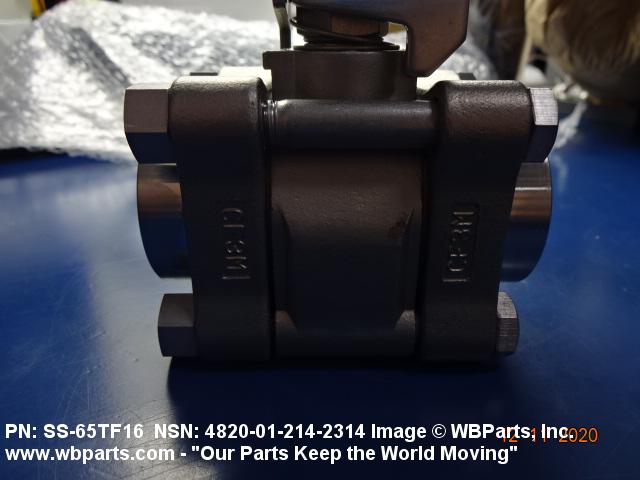

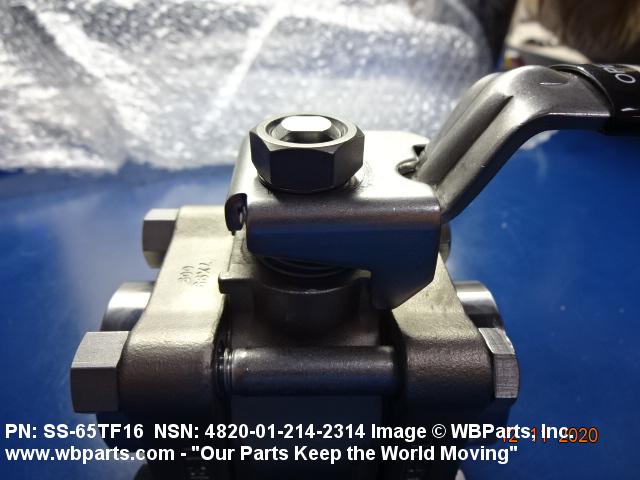

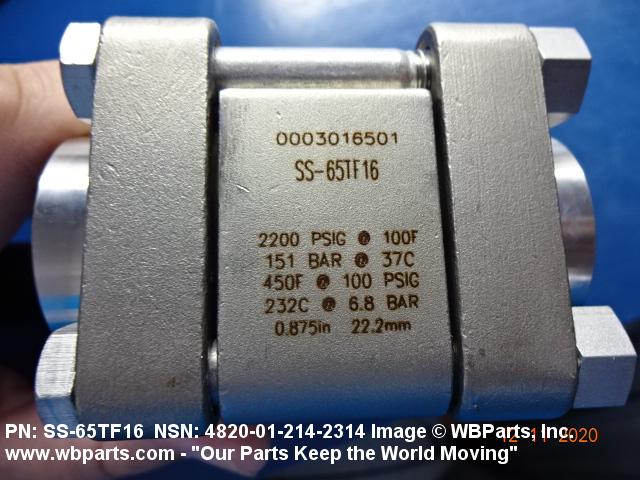

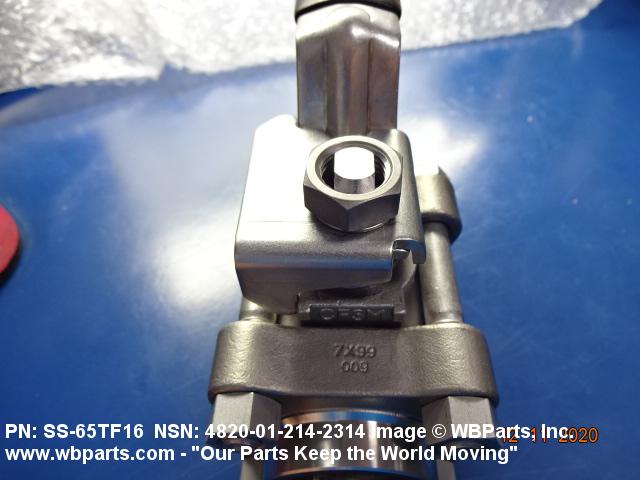

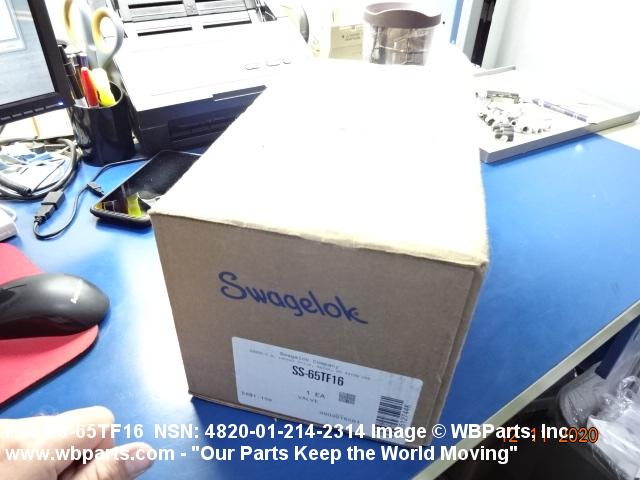

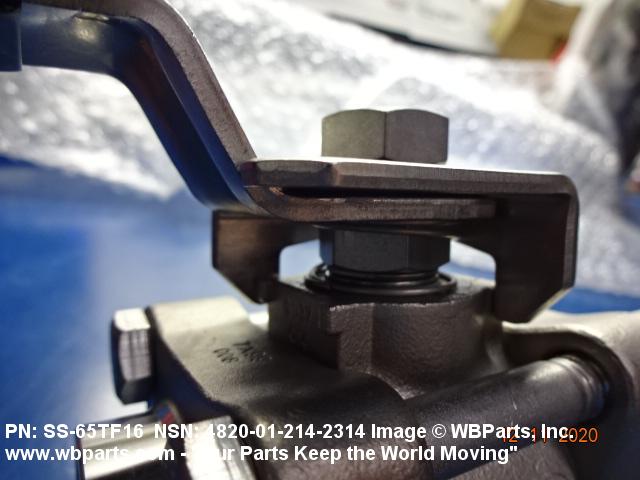

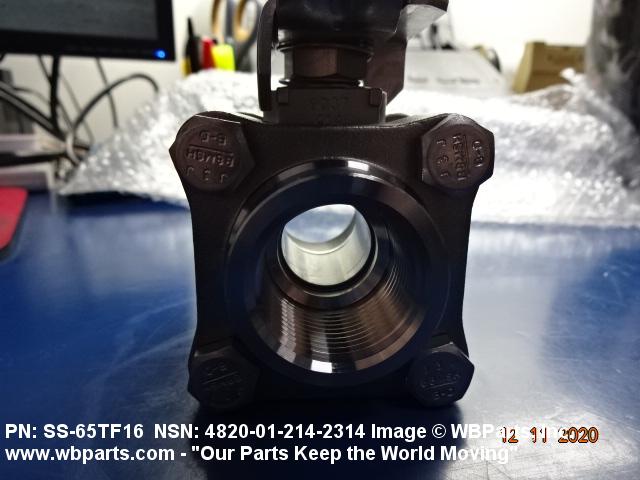

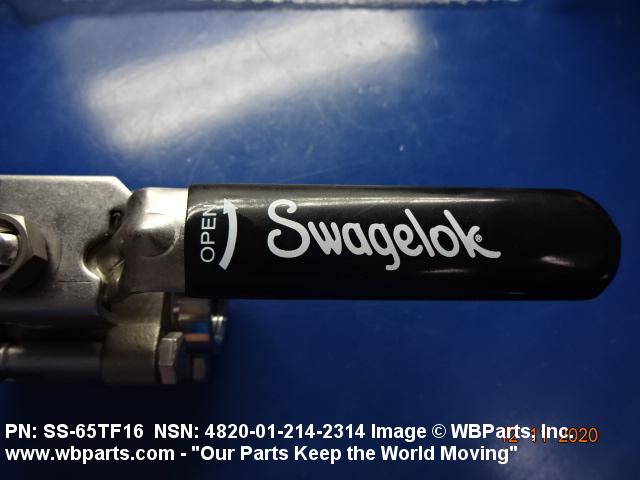

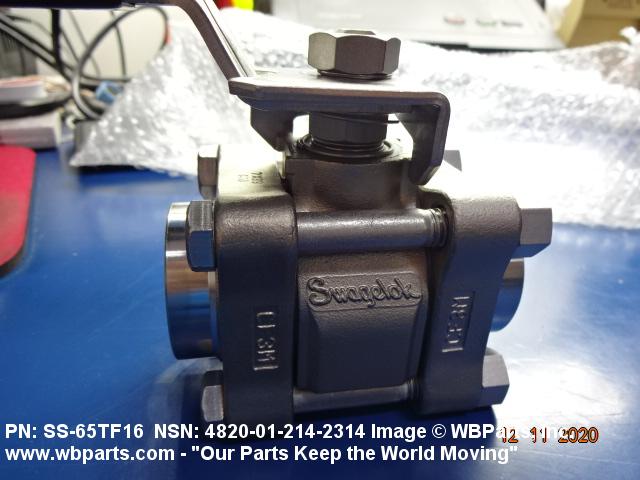

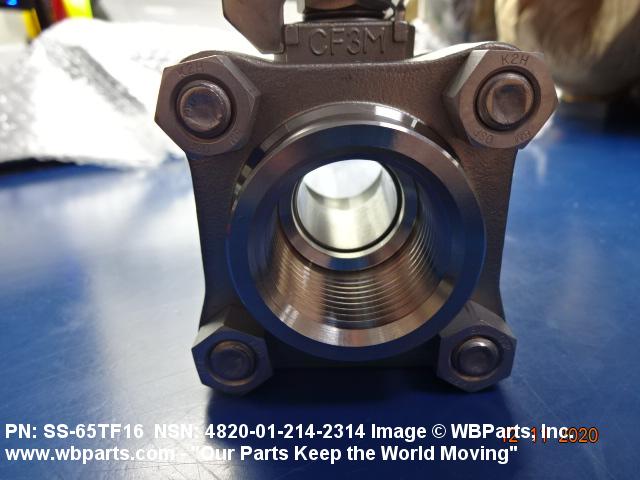

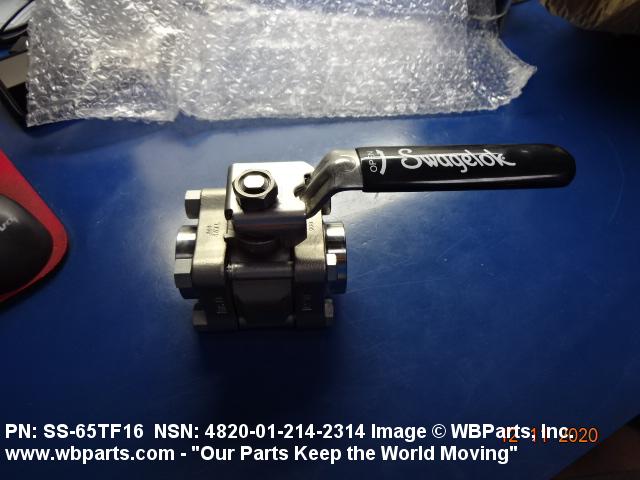

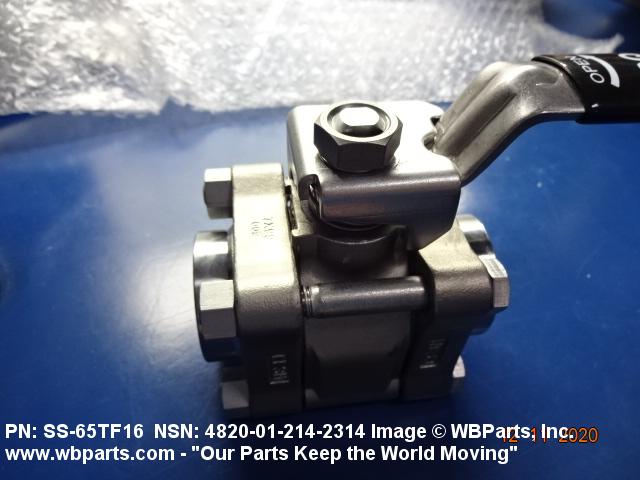

Drawings & Photos | NSN 4820-01-214-2314
Demand History | NSN 4820-01-214-2314
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 000-8008-029 | 2024-07-186 | 13 | DIBBS |
| SS65TF16 | 2024-07-186 | 13 | DIBBS |
| 000-8008-029 | 2023-10-297 | 17 | DIBBS |
| SS65TF16 | 2023-10-297 | 17 | DIBBS |
| 000-8008-029 | 2023-07-201 | 5 | DIBBS |
| SS65TF16 | 2023-07-201 | 5 | DIBBS |
| 000-8008-029 | 2023-05-138 | 6 | DIBBS |
| SS65TF16 | 2023-05-138 | 6 | DIBBS |
| 000-8008-029 | 2023-02-33 | 5 | DIBBS |
| SS65TF16 | 2023-02-33 | 5 | DIBBS |
| 000-8008-029 | 2022-08-223 | 4 | DIBBS |
| SS65TF16 | 2022-08-223 | 4 | DIBBS |
| 000-8008-029 | 2022-07-202 | 3 | DIBBS |
| SS65TF16 | 2022-07-202 | 3 | DIBBS |
| 000-8008-029 | 2022-06-159 | 2 | DIBBS |
| SS65TF16 | 2022-06-159 | 2 | DIBBS |
| VPB2-A0 | 2022-06-159 | 2 | DIBBS |
| 000-8008-029 | 2021-12-354 | 3 | DIBBS |
| SS65TF16 | 2021-12-354 | 3 | DIBBS |
| VPB2-A0 | 2021-12-354 | 3 | DIBBS |
| 000-8008-029 | 2021-11-319 | 4 | DIBBS |
| SS65TF16 | 2021-11-319 | 4 | DIBBS |
| VPB2-A0 | 2021-11-319 | 4 | DIBBS |
| 000-8008-029 | 2021-10-304 | 15 | DIBBS |
| SS65TF16 | 2021-10-304 | 15 | DIBBS |
| VPB2-A0 | 2021-10-304 | 15 | DIBBS |
| 000-8008-029 | 2021-07-186 | 2 | DIBBS |
| SS65TF16 | 2021-07-186 | 2 | DIBBS |
| VPB2-A0 | 2021-07-186 | 2 | DIBBS |
| 000-8008-029 | 2021-05-137 | 15 | DIBBS |
| SS65TF16 | 2021-05-137 | 15 | DIBBS |
| VPB2-A0 | 2021-05-137 | 15 | DIBBS |
| SS65TF16 | 2020-12-336 | 15 | Japan |
| 000-8008-029 | 2020-11-329 | 15 | DIBBS |
| SS65TF16 | 2020-11-329 | 15 | DIBBS |
| VPB2-A0 | 2020-11-329 | 15 | DIBBS |
| SS65TF16 | 2020-11-321 | 20 | JP |
| 000-8008-029 | 2020-04-121 | 16 | DIBBS |
| SS65TF16 | 2020-04-121 | 16 | DIBBS |
| VPB2-A0 | 2020-04-121 | 16 | DIBBS |
| 000-8008-029 | 2019-07-206 | 6 | DIBBS |
| SS65TF16 | 2019-07-206 | 6 | DIBBS |
| VPB2-A0 | 2019-07-206 | 6 | DIBBS |
| 000-8008-029 | 2019-06-178 | 9 | DIBBS |
| SS65TF16 | 2019-06-178 | 9 | DIBBS |
| VPB2-A0 | 2019-06-178 | 9 | DIBBS |
| 4820-01-214-2314 | 2018-04-95 | 7 | DIBBS |
| 4820-01-214-2314 | 2016-12-340 | 26 | DIBBS |
| 4820-01-214-2314 | 2016-09-251 | 2 | DIBBS |
| 4820-01-214-2314 | 2016-06-164 | 11 | DIBBS |
| 4820-01-214-2314 | 2016-05-136 | 9 | DIBBS |
| 4820-01-214-2314 | 2015-07-200 | 7 | DIBBS |
| 4820-01-214-2314 | 2012-03-61 | 15 | DIBBS |
| 4820-01-214-2314 | 2011-04-100 | 15 | DIBBS |
| 4820-01-214-2314 | 2010-12-347 | 6 | DIBBS |
| 4820-01-214-2314 | 2009-09-273 | 10 | DIBBS |
| 4820-01-214-2314 | 2009-02-58 | 9 | DIBBS |
| 4820-01-214-2314 | 2009-01-26 | 9 | DIBBS |
Cross Reference | NSN 4820-01-214-2314
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 000-8008-029 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 13228E1786 | 97403 | CECOM LR CENTER |
| 65TF16 | U7307 | SOUTH LONDON VALVE & FITTING COMPANY TD T/A SWAGELOK LONDON |
| SS-65F16 | 12623 | WHITEY CO |
| SS-65TF16 | U7307 | SOUTH LONDON VALVE & FITTING COMPANY TD T/A SWAGELOK LONDON |
| SS65TF16 | 02570 | SWAGELOK COMPANY DBA USE CAGE CODE 3T9T9 FOR |
| SS65TF16 | 12623 | WHITEY CO |
| VPB2-A0 | 60515 | DYNAQUIP CONTROLS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-214-2314
Related Products | NSN 4820-01-214-2314
Technical Data | NSN 4820-01-214-2314
| Characteristic | Specifications |
|---|---|
| NOMINAL THREAD SIZE | 1.000 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| MAXIMUM OPERATING PRESSURE | 2500.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| SPECIAL FEATURES | SWING OUT TYPE |
| VALVE OPERATION METHOD | MANUAL |
| MATERIAL | STEEL CORROSION RESISTING BODY |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| MATERIAL | STEEL CORROSION RESISTING FLOW CONTROL DEVICE |
| MEDIA FOR WHICH DESIGNED | WATER, FRESH 2ND RESPONSE |
| CONNECTION STYLE | G9 PLAIN,OPTIONAL END(PIPE) ALL ENDS |
| MEDIA FOR WHICH DESIGNED | STEAM 1ST RESPONSE |
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE SEAT |
| FURNISHED ITEMS AND QUANTITY | 1 HANDLE |
| BONNET ATTACHMENT METHOD | THREADED |
| CONNECTION TYPE | THREADED INTERNAL PIPE ALL ENDS |
| RENEWABLE SEAT RING TYPE | PRESSED-IN |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| MATERIAL | STEEL CORROSION RESISTING STEM |
| MAXIMUM OPERATING TEMP | 250.0 DEG FAHRENHEIT SINGLE RESPONSE |
| BONNET TYPE | INSIDE SCREW |
Restrictions/Controls & Freight Information | NSN 4820-01-214-2314
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-214-2314
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
